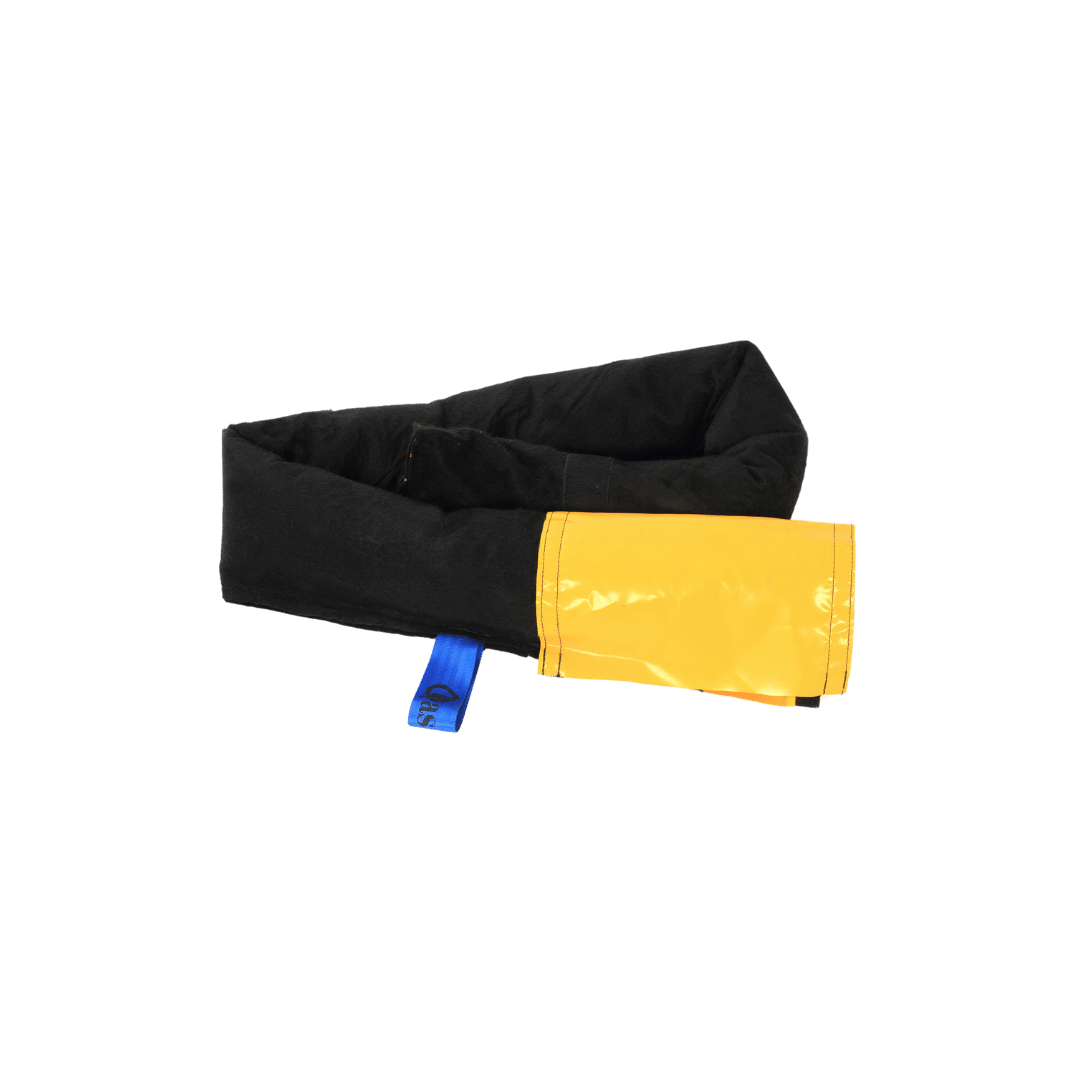

SpilMax Weighted Containment Boom with Handles and Fasteners

SHS-CHWCB02 – Weighted Containment Boom (3m x 90mm) with Handles & Fasteners

Heavy‑Duty Gel‑Filled Boom for Spill Containment & Turbid Water Control

Overview

The CHWCB02 Weighted Containment Boom is a robust, gel‑filled barrier designed for effective spill containment, silt curtain deployment, and turbid water control in industrial and environmental applications. Measuring 3 metres in length with a 90mm height, it combines a durable 610gsm yellow PVC inner layer with a 260gsm nonwoven geotextile outer layer, offering exceptional strength, UV resistance, and fire‑retardant properties.

Constructed using HF welding and sewing, the boom features three 50mm webbing handles for easy deployment and retrieval. Joinable PVC cuffs allow multiple sections to be connected for extended coverage. The gel‑filled core provides a low profile that conforms to uneven surfaces while maintaining effective containment. Ideal for use in stormwater channels, construction sites, and industrial zones where flexible, weighted barriers are required.

Key Features & Benefits

Gel‑Filled Weighted Core – Provides a low, conformable profile that seals against uneven surfaces without requiring a chain ballast.
Dual‑Layer Construction – Outer 260gsm nonwoven geotextile provides sediment filtration; inner 610gsm yellow PVC offers high strength and chemical resistance.
High Durability – Tensile strength 2400N/5cm (warp & weft), tear strength 450N/400N, and weld adhesion 120N/5cm.
UV & Fire Resistant – 5‑year UV warranty on PVC; self‑extinguishing per AS1530 and NFPA 701‑2004.
Easy Handling – Three 50mm webbing handles for manual placement and retrieval.

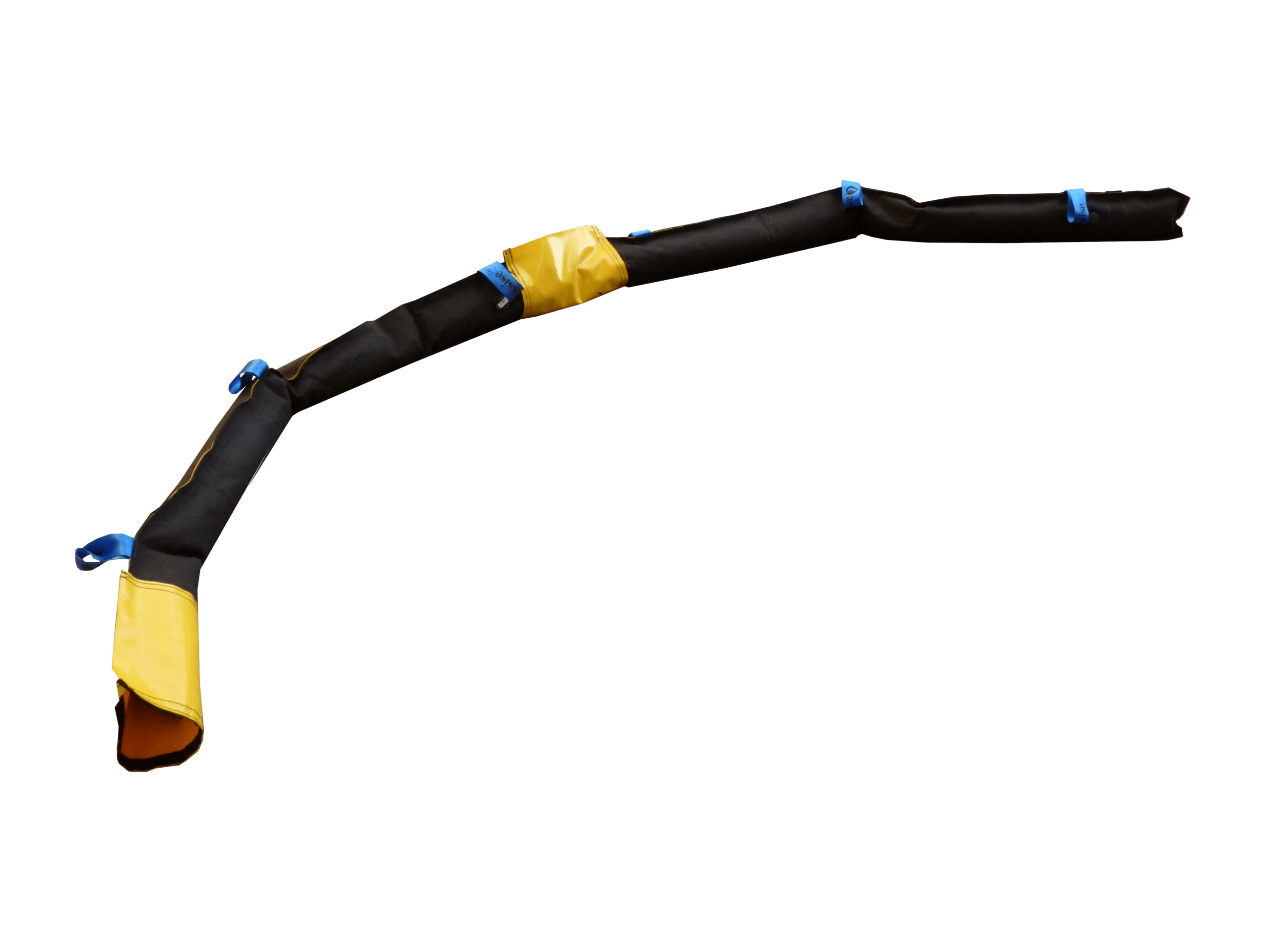

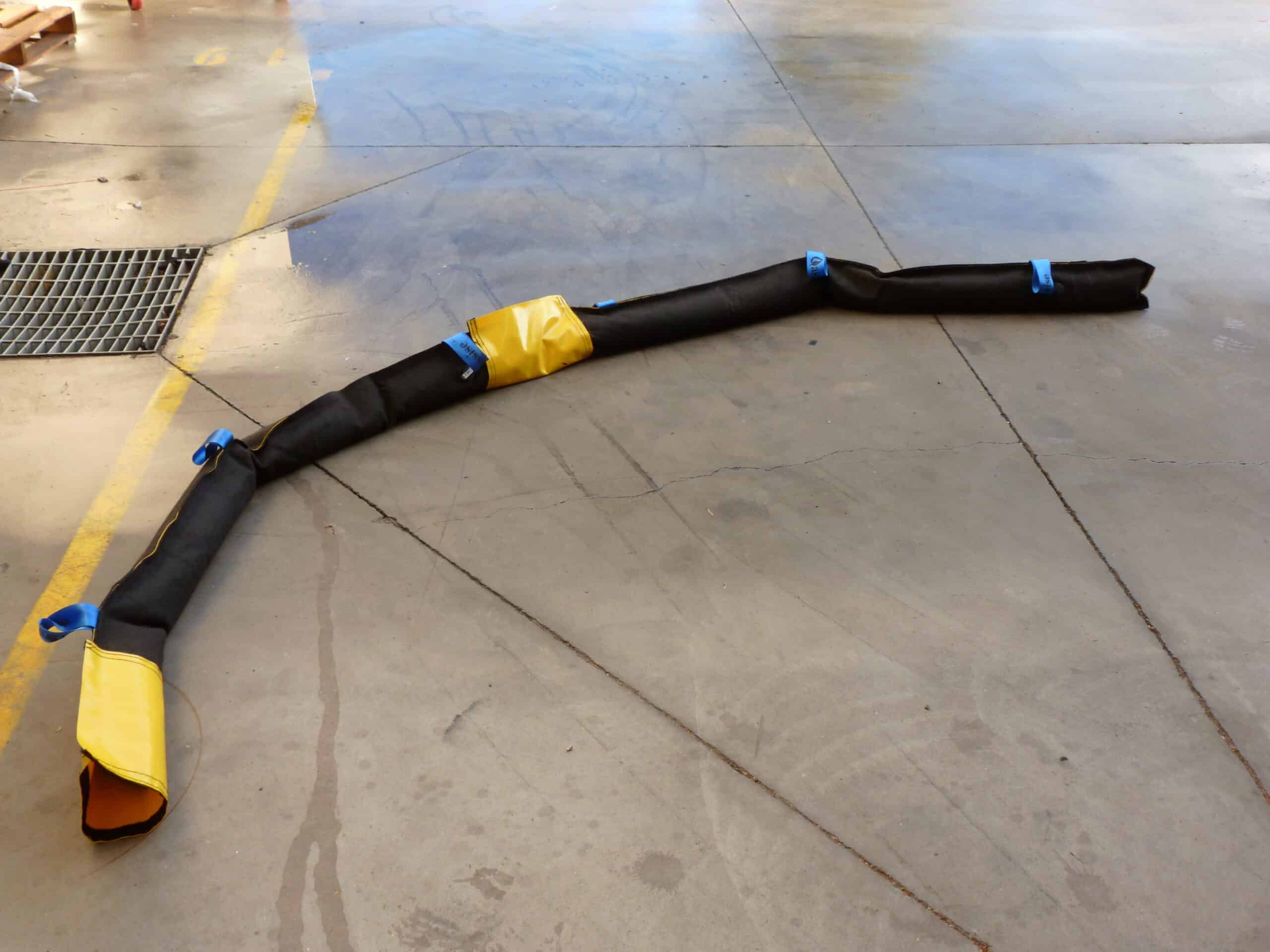

Modular Connection – Joinable cuffs allow multiple booms to be linked together for longer barriers.
Australian Made – Manufactured in Australia with compliance to AS 1940 and AS 3780.

Technical Specifications

Performance Features

Gel‑filled core provides a heavy, flexible weight that conforms to uneven surfaces.
HF‑welded and sewn seams deliver exceptional structural integrity.
Outer geotextile layer allows water flow while retaining sediment.
Inner PVC layer resists hydrocarbons, oils, and industrial chemicals.
UV‑stabilised materials offer 5‑year outdoor service life.
Self‑extinguishing fabric meets fire safety standards.
Modular cuffs allow quick connection of multiple sections.
Handles simplify deployment, repositioning, and retrieval.

Applications

Stormwater channel sediment control
Construction site dewatering containment
Industrial spill response and bunding
Turbidity curtains for dredging and excavation
Perimeter barriers around fuel storage and handling areas
Temporary containment in marinas and waterways

Best Fit For

Sites requiring a flexible, weighted barrier that conforms to the ground.
Environments where a combination of sediment filtration and hydrocarbon containment is needed.
Projects needing modular, extendable booms for variable lengths.
Applications with exposure to UV, fire risk, or chemical spills.

Not Suitable For

Use as a floating boom on open water (designed for ground/floor deployment).
Applications requiring a rigid, fixed barrier.
Extreme chemical compatibility beyond standard industrial fluids without testing.
