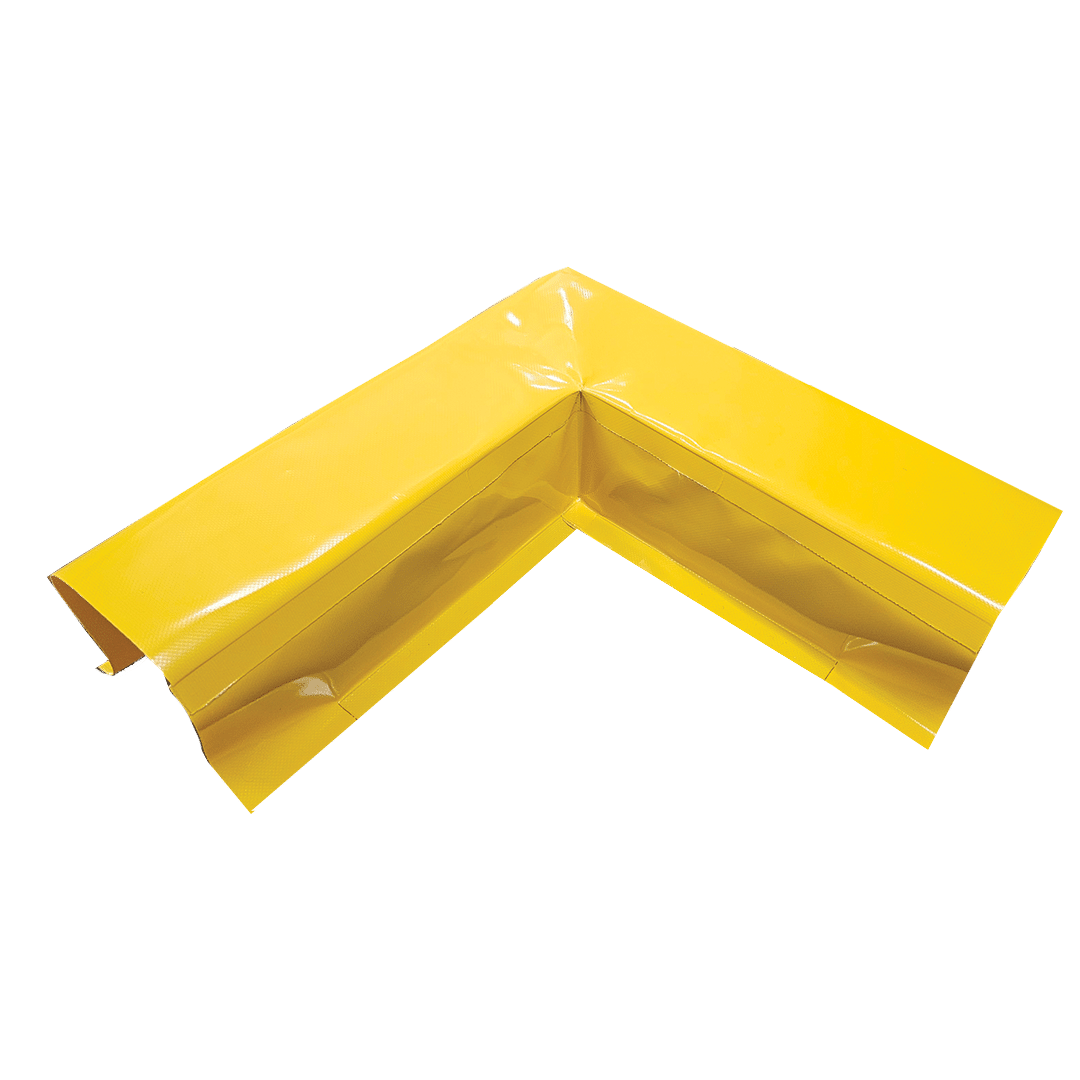

Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 150mmH)
CHFFB42 Flexible Floor Bunding 90° Corner Join is a high-profile spill containment corner designed to connect flexible bunding sections at right angles. Featuring a compressible triangular foam core and heavy-duty 900gsm PVC construction, it allows low-speed vehicle crossings while maintaining reliable spill protection in industrial environments.
$220.00 $200.00
SHS-CHFFB42 Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 150mmH)
High Profile Flexible Floor Bunding 90° Corner Join – Spill Containment Corner Section
Overview
The CHFFB42 Flexible Floor Bunding 90° Corner Join is designed to create secure right-angle connections within high-profile flexible floor bunding systems. This corner join allows bunding sections to form continuous containment layouts while maintaining the same compressible and self-restoring design used in Chatoyer flexible bunding systems.
With a 150mm high triangular profile, the bund compresses under low-speed vehicle traffic such as forklifts and pallet jacks, allowing safe crossings while maintaining effective spill containment. Once the load passes, the bund immediately returns to its original shape, ensuring reliable containment performance.
Manufactured from heavy-duty 900gsm yellow PVC with gloss acrylic lacquer on both sides and reinforced with a triangular foam core, the CHFFB42 provides excellent durability, high visibility, and strong resistance to chemicals and industrial conditions. It is ideal for warehouses, maintenance areas, chemical storage zones, and industrial processing environments requiring higher spill containment barriers.
Key Features & Benefits
90° Corner Bunding Connection:
Allows flexible floor bunding systems to form sealed corner layouts while maintaining continuous spill containment.
High Profile Containment Design:
The 150mm high barrier provides greater spill containment capacity compared with lower-profile bunding systems.
Compressible Foam Core:
Triangular foam compresses under vehicle weight and rebounds immediately after traffic passes.
Heavy-Duty PVC Construction:
Manufactured from durable 900gsm PVC with gloss acrylic lacquer on both sides for long-term industrial performance.
Chemical Resistant:
Provides good general chemical resistance suitable for industrial spill containment environments.
UV Stable:
Backed by a 5-year UV warranty on both scrim and coating.
Fire Retardant:
Materials self-extinguish when the ignition source is removed.
Wide Temperature Range:
Performs reliably between −20°C and +70°C.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHFFB42 |
| Construction Method | HF Welded |
| Length | 300mm |
| Width | 205mm |
| Height | 150mm |
| Fabric Material | Yellow PVC gloss acrylic lacquered both sides |
| Fabric Material Weight | 900gsm |
| Chemical Resistance | Good general chemical resistance |
| UV Resistance | 5 year UV warranty (scrim and coating) |
| Fire Rating | AS1530 Part 2 & 3; NFPA 701-2004 |
| Temperature Range | -20°C to +70°C |
| Tensile Strength | Warp 4800N/5cm, Weft 4800N/5cm |
| Tear Strength | Warp 671N/5cm, Weft 603N/5cm |
| Foam Material | White triangular shape foam |
| Density | 16kg/m³ – 17kg/m³ |
| Hardness (IFD 40%) | 110N ± 15 |
| Tear Resistance | 250N/m Minimum |
| Tensile | 80 kPa Minimum |
| Elongation | 150% Minimum |
| Resilience | 40% Minimum |
| Compression Set | 10% Maximum |
| Indentation Factor | 1.75% |
| Country of Origin | Australia |
| HS Code | 3926.90 |
| Workmanship Warranty | 1 Year |
Best Fit For
High-capacity spill containment zones
Warehouse and workshop containment systems
Chemical handling and decanting areas
Industrial facilities requiring higher bunding barriers
Not Suitable For
High-speed vehicle traffic lanes
Permanent rigid containment installations
Applications requiring civil concrete bund walls
Optional Accessories
Installation Kit
CHFFB39 – 2m Flexible Floor Bunding
Download Product Brochure
| Weight | 2 kg |
|---|---|
| Dimensions | 33 × 23 × 18 cm |
