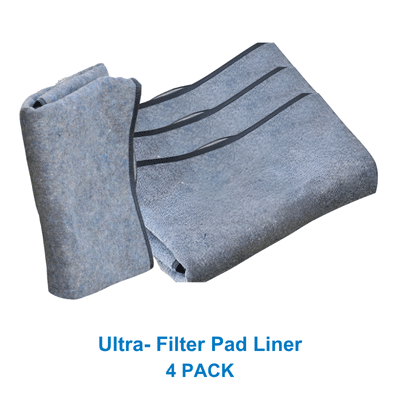

Ultra – Filter Pad Liner 4 Pack (1.5mL x 1.2mW) 13L each
Ultra‑Filter Pad Liner (1.5m x 1.2m x 75mm) – direct replacement for Ultra‑Filter Pad CHU6542. Captures up to 12 litres of hydrocarbons using 460gsm nonwoven geotextile from recycled fibres. High‑flow filtration with 6.70 L/m² flow rate, 100‑micron pore size, and quick‑release compatibility. Weight 27 kg (per datasheet – please confirm). Made in the USA. Ideal for maintaining stormwater compliance at high‑volume fuelling stations, industrial sites, and large catch basins.
$737.00 $670.00
SHS-CHU6552 – Ultra‑Filter Pad Liner (1.5m x 1.2m x 75mm, 12L)
Extra‑Large Replacement Filter Liner for Ultra‑Filter Pad – 12‑Litres Hydrocarbon Capacity
Overview
The Ultra‑Filter Pad Liner is a direct replacement filter insert designed for the extra‑large Ultra‑Filter Pad stormwater filtration system (CHU6542). Manufactured from high‑performance Ultra‑Filter‑Tex nonwoven geotextile, this liner captures oils, fuels, and sediments while allowing water to pass. With a hydrocarbon capacity of 12 litres, it is ideal for high‑flow applications where significant oil‑laden runoff is expected.
The liner integrates seamlessly with the pad’s quick‑release corner fasteners, enabling tool‑free field replacement. Made from recycled synthetic fibres, it supports sustainable environmental practices while maintaining high‑flow filtration performance.
Key Features & Benefits
Direct Replacement Fit
Engineered specifically for the Ultra‑Filter Pad (CHU6542) – ensures seamless installation and consistent performance.
High Hydrocarbon Capacity
Each liner captures up to 12 litres of oil and fuel – effectively removes hydrocarbons from stormwater before discharge.
High‑Flow Filtration
Ultra‑Filter‑Tex media delivers flow rate of 6.70 L/m² and permeability of 0.72 cm/s for efficient water passage.
Durable Construction
460gsm nonwoven geotextile with high tensile and puncture resistance – withstands abrasive debris and repeated use.
Quick‑Release Compatibility
Designed to work with the pad’s corner fasteners for tool‑free, rapid replacement.
Sustainable Material
Made from recycled synthetic fibres – reduces environmental footprint.
Technical Specifications
| Specification | Detail | Product Code | CHU6552 |
|---|---|
| Product Name | Ultra‑Filter Pad Liner |
| Dimensions | 1.5 m L x 1.2 m W x 75 mm H |
| Hydrocarbon Capacity | 12 L |
| Weight | 27 kg (per datasheet – please verify) |
| Material | Greyscale nonwoven fabric made from recycled synthetic fibres |
| Mass Per Unit Area | 460 gsm |
| Elongation at Peak (MD) | 131% |
| Elongation at Peak (TD) | 172% |
| Wide Width Tensile (MD) | 5.89 kg |
| Wide Width Tensile (TD) | 411 kg |
| Elongation at Break (MD) | 110% |
| Elongation at Break (TD) | 156% |
| Mullen Burst | 15 kg/cm² |
| Puncture Resistance | 32.7 kg |
| Permittivity | 2.02 sec⁻¹ |
| Permeability | 0.72 cm/s |
| Flow Rate | 6.70 L/m² (nominal) |
| Pore Size (nominal) | 100 microns |
| Country of Origin | USA |
| HS Code | 5603.14 |
| Workmanship Warranty | 1 Year |
Performance Features
Direct replacement liner for Ultra‑Filter Pad (CHU6542)
12‑litre hydrocarbon capacity per liner
High‑flow filtration with 6.70 L/m² flow rate
Durable 460gsm nonwoven geotextile – resists tearing and punctures
100‑micron pore size for reliable solids capture
Made from recycled synthetic fibres
Quick‑release design for tool‑free replacement
Applications
Large stormwater catch basins and drop inlets
Major fuelling stations and vehicle maintenance yards
Heavy industrial loading docks and wash bays
Commercial parking lots and transport depots
Environmental compliance programs
Best Fit For
Facilities using Ultra‑Filter Pad (CHU6542) needing regular liner replacement
Sites with high oil and sediment loads
Maintenance teams requiring cost‑effective, direct‑fit replacement liners for extra‑large systems
Not Suitable For
Use without the compatible Ultra‑Filter Pad housing
High‑flow applications where bypass may occur without proper housing
Chemical spills requiring specialised absorbents (use chemical‑specific filters)
Download Product Brochure
| Weight | 2.3 kg |
|---|---|
| Dimensions | 76.2 × 50.8 × 15.2 cm |
