Debris Boom 15mL, 300mm Net Skirt, 150 x 150mm Float, 1020gsm XR-5,10mm Ballast

SHS-CHDRB01 Debris Boom (Floating Containment Barrier)

Floating Debris & Pollution Control for Waterways

Overview

The CHDRB01 Debris Boom is a high-performance floating containment system designed to capture, control, and retain debris, pollutants, and floating contaminants in waterways such as stormwater canals, rivers, and industrial discharge zones.

Engineered for both temporary and permanent deployment, the boom combines a durable flotation system with a submerged skirt to effectively intercept debris while allowing water to pass through. Its modular design enables multiple sections to be connected, creating scalable containment solutions for a wide range of environmental conditions.

Key Features & Benefits

Effective Debris Containment
Captures floating waste, vegetation, and pollutants before they spread downstream.

Dual-Level Protection
150mm freeboard blocks surface debris while 300mm submerged skirt captures subsurface material.

Heavy-Duty Construction
Manufactured from XR-5 reinforced PVC with excellent strength and durability.

High Chemical & UV Resistance
Suitable for harsh environmental and industrial conditions.

Integrated Ballast System
Galvanised chain ensures stability and maintains vertical skirt positioning.

Modular & Connectable
ASTM F962 Z-connectors allow secure linking of multiple boom sections.

Flexible Deployment
Suitable for temporary or permanent installations with anchoring systems.

Customisable Design
Available in different sizes, materials, and configurations.

Technical Specifications

Material Performance

High-strength XR-5 material provides:

Excellent tensile strength (2448 N minimum)

High puncture resistance (1200 N minimum)

Superior abrasion resistance (2000+ cycles)

Long-term weathering durability (8000+ hours)

Low water absorption and high dimensional stability

Applications

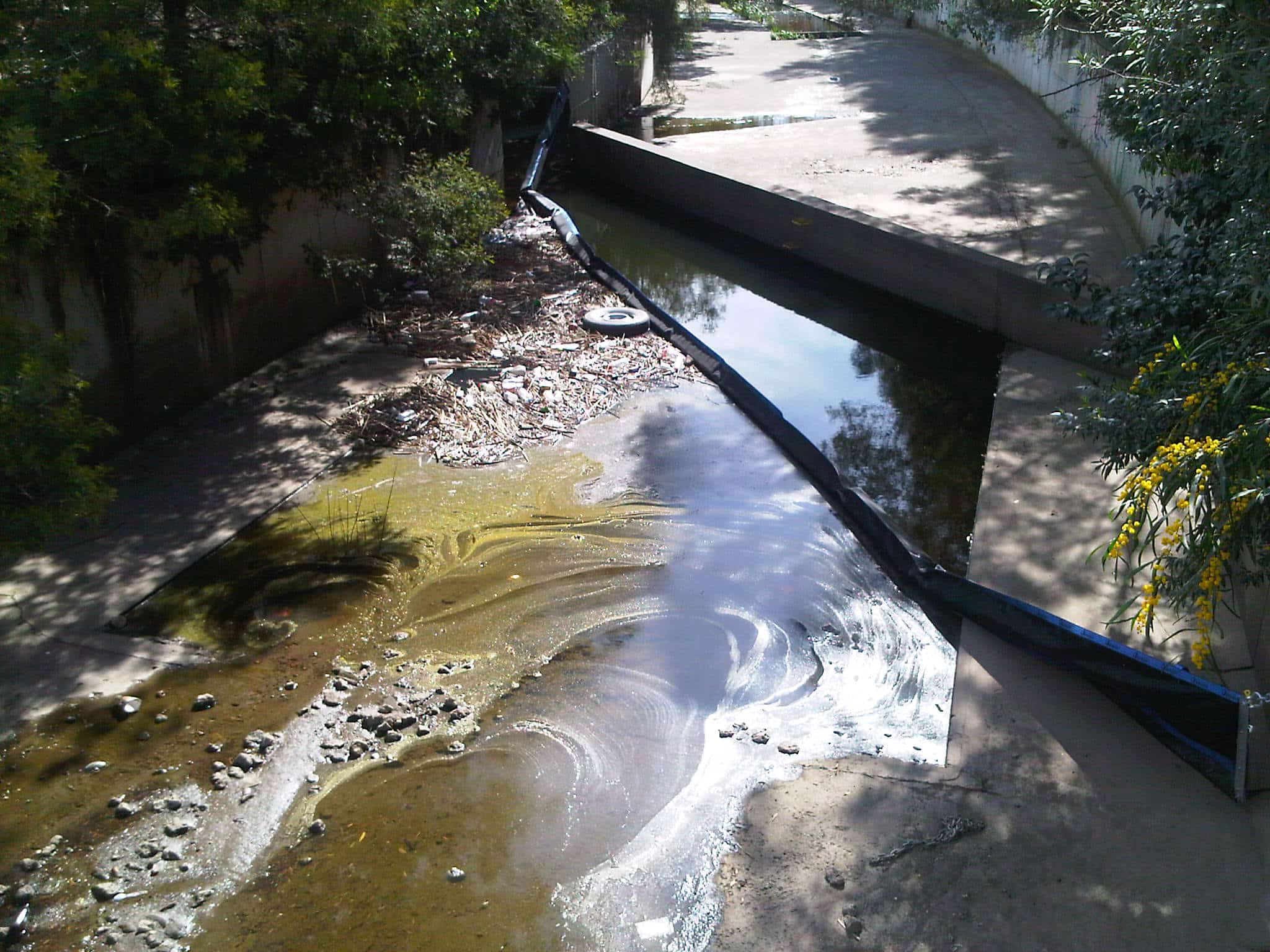

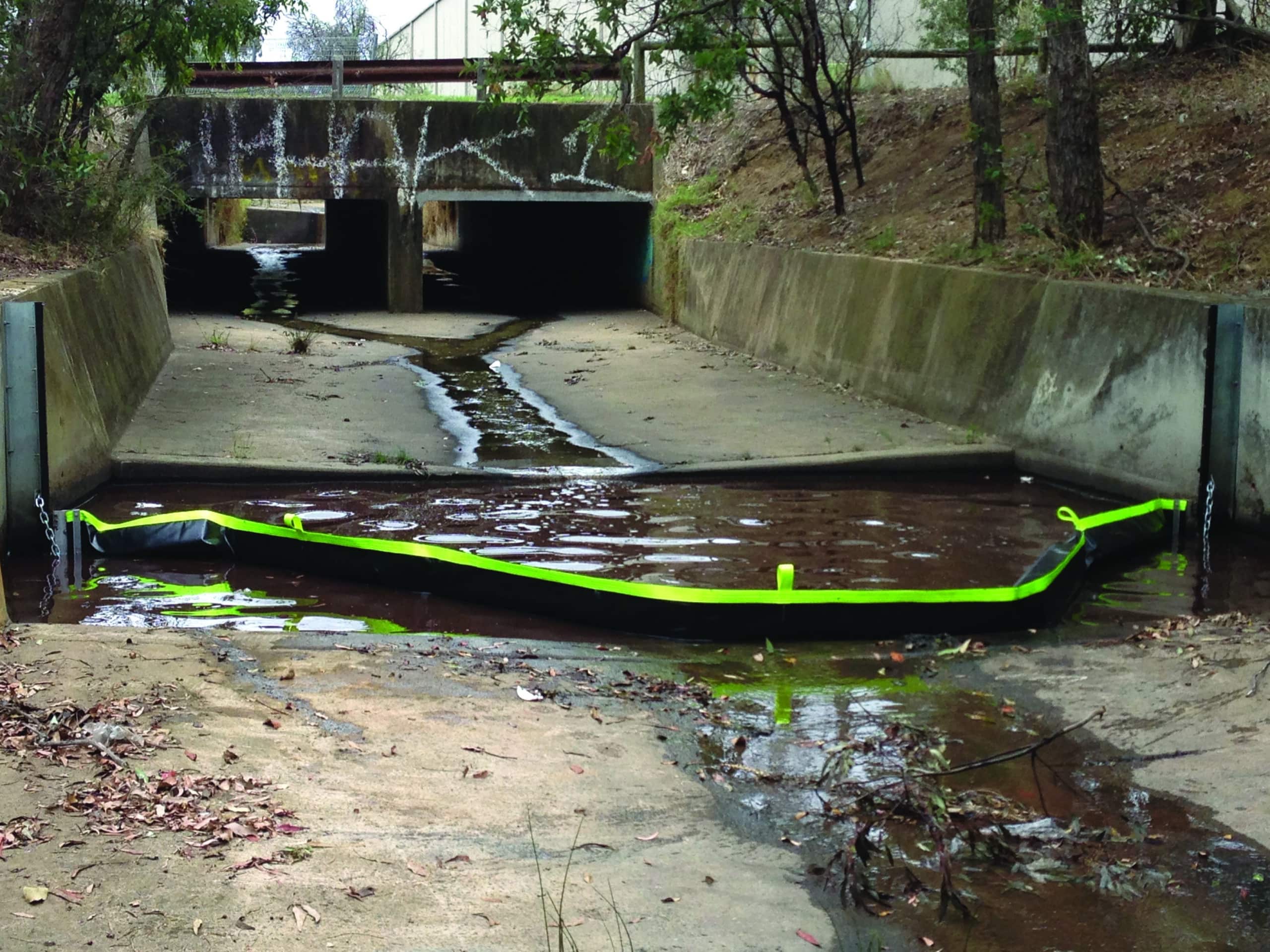

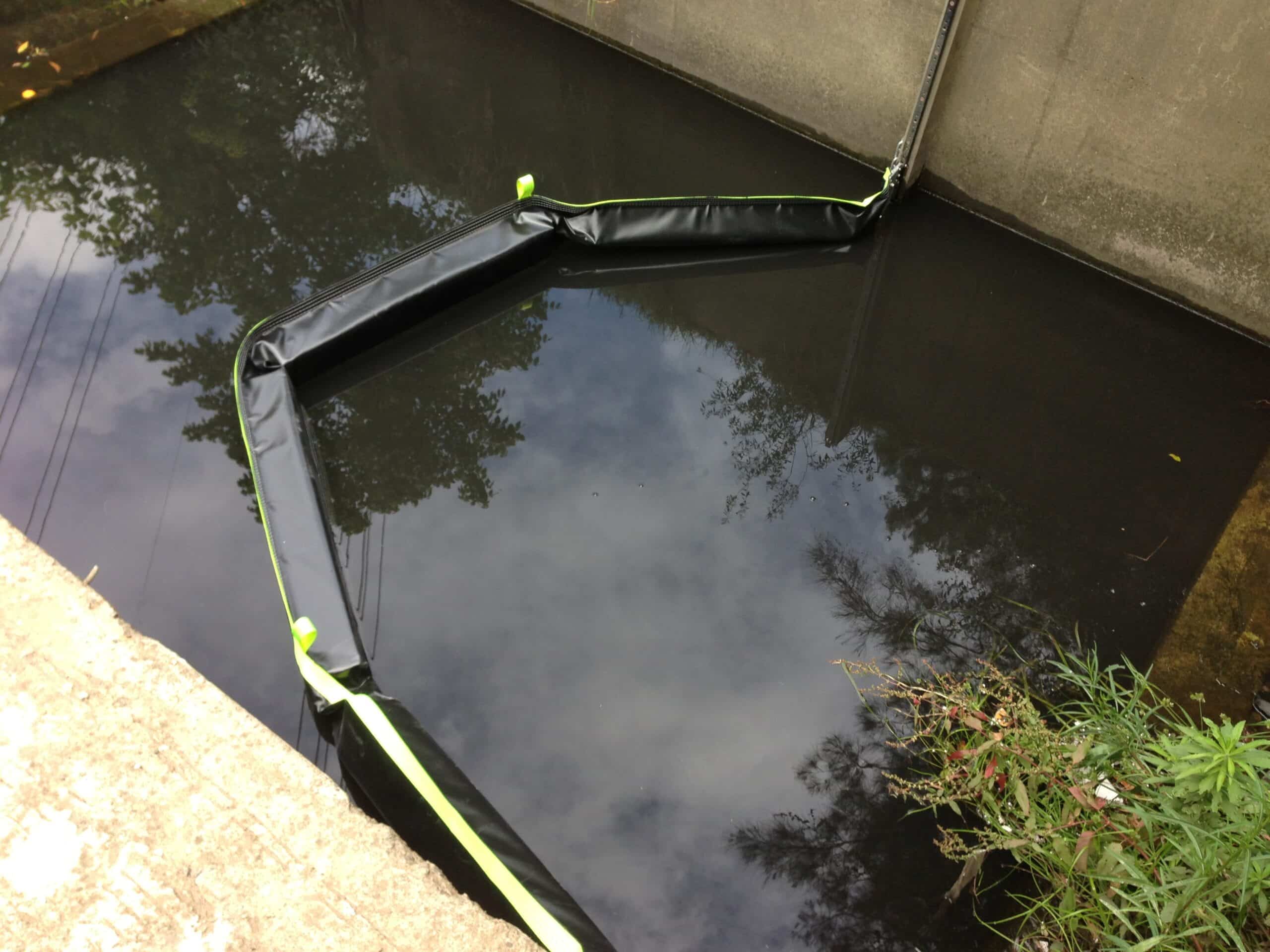

Stormwater channels and drains

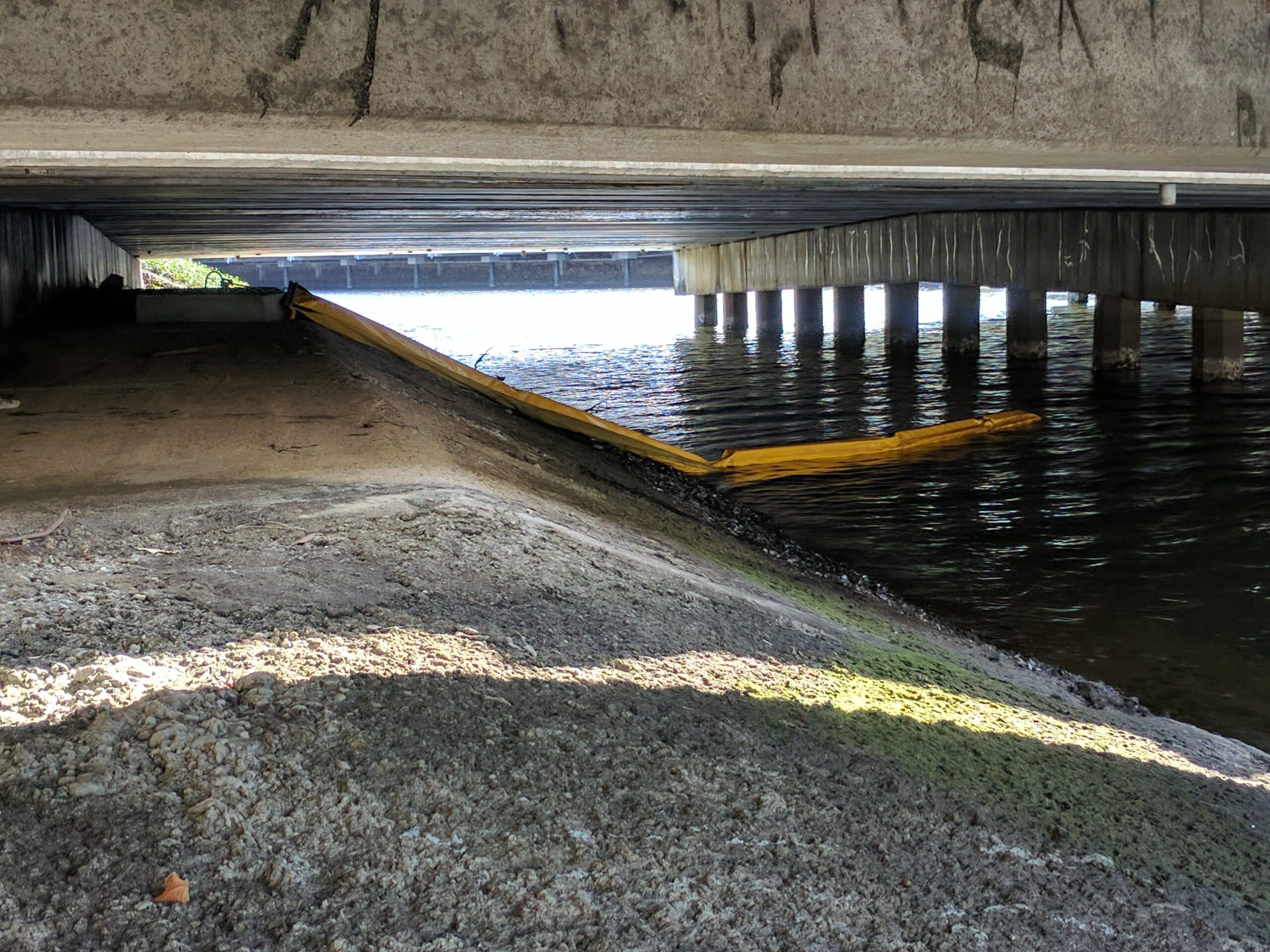

Rivers and waterways
Industrial discharge zones
Construction and civil sites
Environmental protection projects

Best Fit For

Debris and litter control
Oil and pollutant containment (secondary use)
Waterway protection and compliance

Not Suitable For

High-flow flood conditions without anchoring
Containment of fully dissolved contaminants
