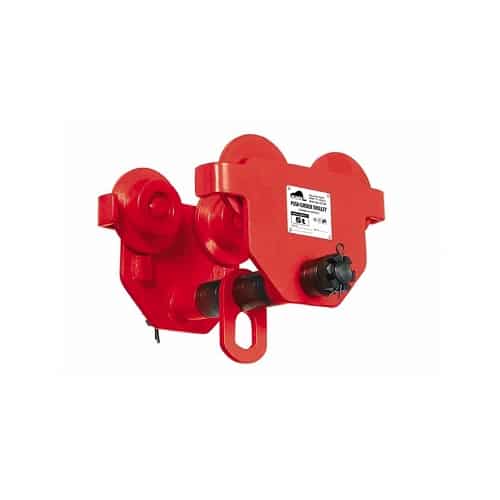

Beaver Push Girder Trolleys- 114-305mm X 5t Red
Beaver push girder trolleys are fully adjustable to suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin. This trolley complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.
$1,020.00 $927.27
These girder trolleys are manufactured to have a lightweight but robust all-steel construction. The hand chain has a special corrosion resistance zinc dichromate (gold) finish. Anti-tilt blocks fitted as standard for additional safety. Beaver push trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction are the responsibility of the user.
| Code | Capacity | Colour | Proof Load | Min. Radius Curve | Net Weight |
| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg |
| A | B | C | D | E | F |
| 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| G | H | I | J | L1 | M |
| 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.
