HT2000-240V High Lift Electric Scissor Lift Table – 3m Lift | 2000kg Capacity

Description

HT2000-240V – High Lift Electric Scissor Lift Table (2000kg | 3m Lift)

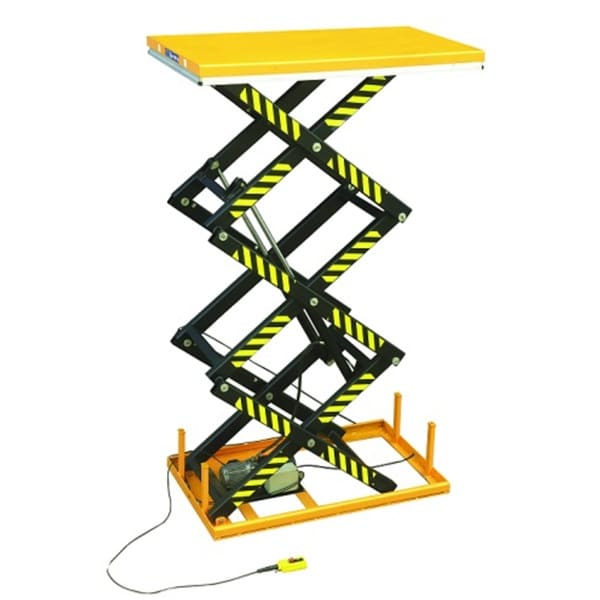

The HT2000 High Lift Electric Scissor Lift Table is a heavy-duty industrial lifting solution designed for demanding goods handling applications. Featuring a triple scissor mechanism, it achieves a maximum lift height of 3000mm while maintaining excellent stability under heavy loads.

Ideal for warehouses, manufacturing facilities, and logistics operations, this 2000kg capacity lift table is suitable for both above-floor and pit-mounted installations where higher load capability is required.

Features

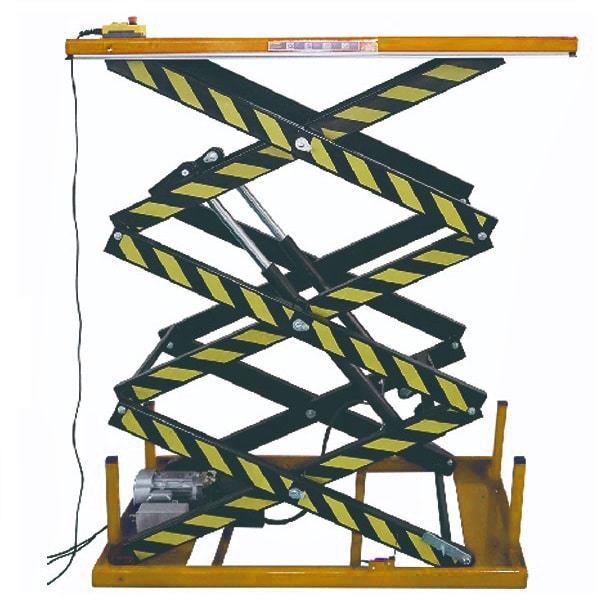

• Triple scissor design for 3m lift height
• 2000kg heavy-duty load capacity
• Electric hydraulic operation
• Suitable for above-floor or pit installation
• Controlled lowering and overload protection
• Dual safety solenoid valve system
• Anti-trap safety clearance design
• Self-lubricating pivot points
• Removable lifting eye for installation
• Designed for lifting goods and materials only. Not suitable for lifting people or personnel access.

Specifications

• Capacity: 2000kg

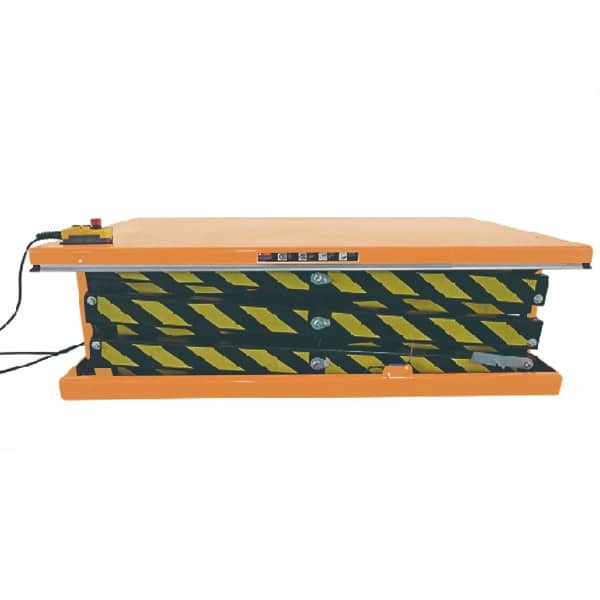

• Lowered Height: 560mm
• Raised Height: 3000mm
• Platform Size: 1700 x 1000mm
• Base Frame: 1606 x 1010mm
• Lift Time: 50–60 sec
• Net Weight: 750kg
• Power Supply: 240V single phase

Applications

• Warehouses
• Manufacturing
• Production lines
• Loading/unloading stations
• Materials handling

This product is supplied on a pre-order basis. Lead times apply.

<!–

–>
