Low Profile Stainless Steel Electric Scissor Lift Table with Platform- 870mm Lift / 1500kg Capacity

Description

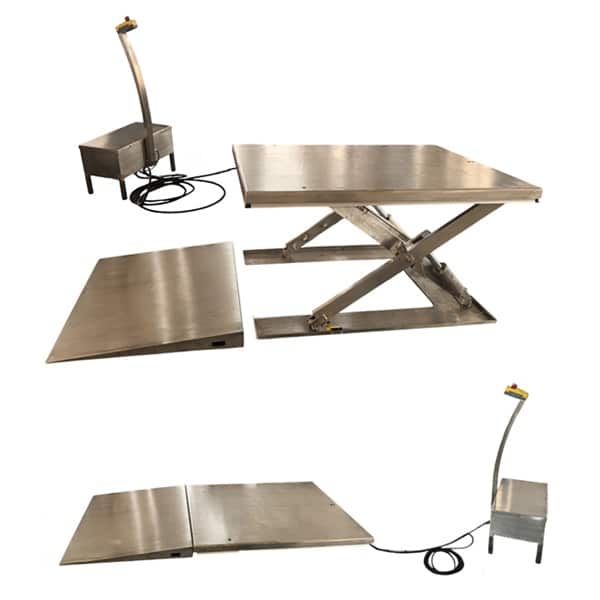

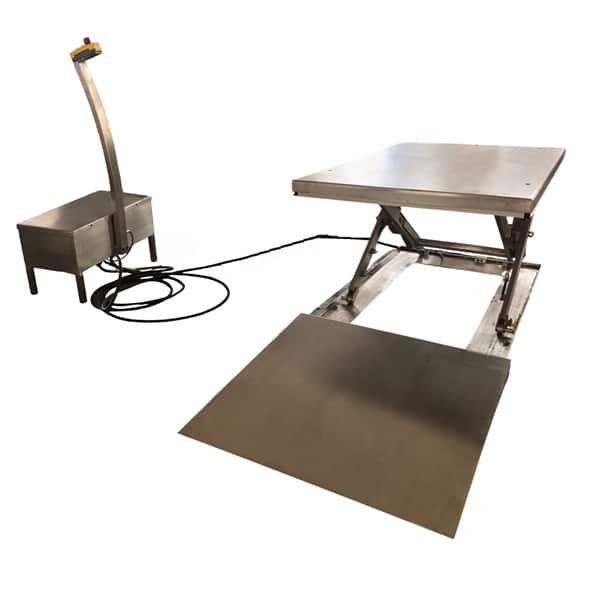

Low Profile Stainless Steel Electric Scissor Lift Table with Platform

Stainless steel scissor lift tables designed for wet environments, food handling, and pharmaceutical industries, where high standards of hygiene are essential. Built with a low closed height, these heavy-duty lifts eliminate the need for pit installation.

Features:

• Australian Standards – Manufactured in compliance with AS/NZS 3820:2009 and AS/NZS 4024.1204:2019
• Complete Stainless Steel – Platform top, base, scissors, and hydraulic cylinders (rams) in stainless steel.
• Remote Power Pack – Pedestal-mounted controls, protected to IP66.
• Safety Perimeter – Platform fitted with a safety edge to stop descent upon contact with obstructions.
• 24V Control Box – Equipped with UP/DOWN buttons and emergency stop.
• External Power Pack – Includes a relief valve against overloading and a compensated flow valve for controlled lowering speed.
• Power Supply – 240V / 50Hz single-phase external power unit in a sealed stainless steel enclosure, mounted on legs to stay clear of the floor. Supplied with an 8m connection cord for flexible positioning away from the lift table. (Optional: AC 380V / 50Hz 3-phase).
• Enhanced Safety – Two solenoid safety valves (one at the pump, one at the cylinder) prevent descent in case of hose failure.
• Ease of Installation – Removable lifting eyelets provided for handling and setup.
• Loading Ramp – Supplied as standard.
• Maintenance-Free Bushings – Oil-less bushings on all pivot points.
• Application – Designed for lifting goods/products only (not for passenger lifting).

Specifications:

<!–

–>
