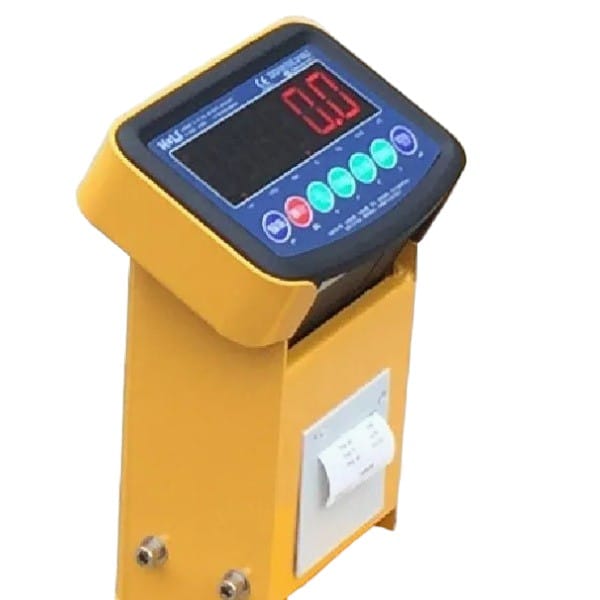

Pallet Jack Scale Display with Printer | BFW-PD Indicator for MPTS & BFW Models

Description

Upgrade your pallet jack weighing system with the BFW-PD Scale Display with Integrated Printer. Designed for accuracy, durability, and ease of use, this advanced indicator unit delivers reliable weight readings and on-the-spot printing for streamlined warehouse operations.

Featuring 7 easy-to-use function keys and a high internal resolution of 1 million counts, the BFW-PD ensures precise and responsive measurements with a rapid 40 updates per second. Its robust IP5x protection rating helps guard against dust, making it suitable for demanding industrial environments.

This display unit is compatible with a range of pallet jack scale models, including MPTS25L540, MPTS25L, BFW25-680mm, and BFW25-540mm. With dual RS232 ports, it allows flexible connectivity for data transfer and system integration.

The unit supports both battery (6V 4Ah, not included) and AC adapter power options, offering versatility for mobile or fixed use. Ideal for warehouses, logistics, and industrial weighing applications where efficiency and accuracy are essential.

Features:

• Integrated printer for instant weight records
• 7 function keys for simple operation
• High internal resolution: 1,000,000 counts
• Fast weighing update rate: 40 times per second
• IP5x dust-resistant protection
• Dual RS232 ports for connectivity
• Supports up to 4 × 350Ω load cell sensors
• Wide input signal range for precise measurement

Technical Specifications:

• Product Code: BFW-PD
• Excitation Voltage: +5VDC
• Null Signal Input Range: 0–5mV
• Full Scale Input Range: 1–10mV
• Power Supply:
  • Battery: 6V 4Ah (not included)
  • Adapter: 100–240VAC, 0.1A, 50–60Hz
• Operating Temperature: -10°C to 40°C (<85% RH)
• Storage Temperature: -20°C to 60°C (<85% RH)

Compatibility:

• MPTS25L540
• MPTS25L
• BFW25-680mm
• BFW25-540mm

What’s Included:

• Operation manual

Note:
Printing paper rolls and battery are not included.

<!–

–>
