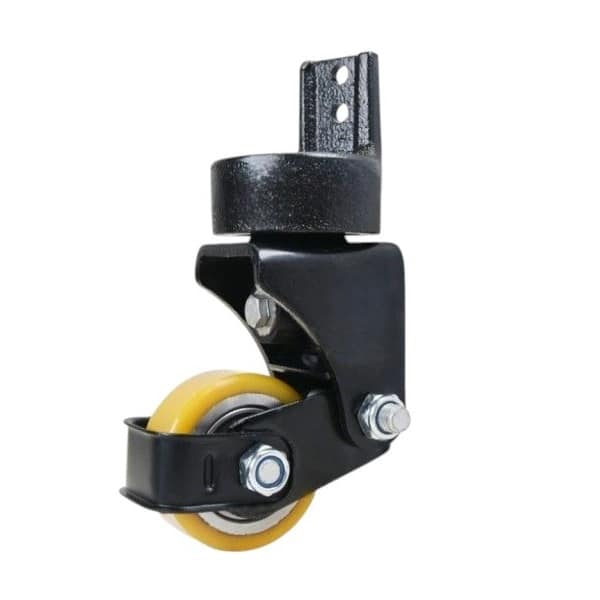

Left Castor Assembly for EP F1 F2 F3 F4 F5 Electric Pallet Jacks – 73x30mm- Part #1135-03220Z-20

Description

Left Side Castor Assembly for F4 Electric Pallet Jacks – ⌀73x30mm (Part #1135-03220Z-20)

This Left-Side Castor Assembly (Part #1135-03220Z-20) is a high-quality swivel replacement wheel designed specifically for F4 electric pallet jacks. Featuring a durable polyurethane wheel and PU damping system, it provides smooth manoeuvrability, enhanced stability, and reliable performance in demanding warehouse and industrial environments.

Specifications:

Part Number: 1135-03220Z-20
Compatible Models: F4 Electric Pallet Jacks
Position: Left Side
Castor Type: Swivel
Design: Single
Mounting Type: Special
Wheel Diameter: 73mm
Wheel Width: 30mm
Wheel Material: Polyurethane
Wheel Colour: Yellow
Clamping Length (Distance Between Forks): 38mm
Top Plate Diameter: 74mm
Mounting Height: 213mm
Total Height: 213mm
Number of Bolt Holes: 2
Bolt Hole Diameter: 9.0mm
Damping Type: PU Damping
Grease Nipple: Without Grease Nipple
Thread Guards: Without Thread Guards
Weight: 2.732kg

Benefits:
Durable polyurethane wheel for long service life
Smooth swivel operation for improved manoeuvrability
PU damping helps reduce vibration during operation
Direct replacement for worn or damaged left-side castors
Suitable for demanding warehouse applications

Compatible Models:
EPT15-EZ
EPT20-EZ
F1 – Serial Numbers After 4331010022
F2 – Serial Numbers After 7321704254
F3 – Serial Numbers After 7321704254
F4 – Serial Numbers After 7321704254
F4 201 – Serial Numbers After 7321704460
F4 202
F4 RAVAS – Serial Numbers Before 7341105533
F4 RAVAS – Serial Numbers After 7341105534
F5
F5 PRO

A durable left-side castor assembly designed to maintain smooth pallet jack performance and reduce downtime caused by wheel wear or damage.

<!–

–>
