powered fifth wheel retractable kit
GZP5W400HBAU application p5w bed 04
GZP5W400HBAU application p5w bed 02
SKU SHS-GZP5W400HBAU N/A

Retractable powered Fifth wheel (P5W), battery powered, retrofittable kit.

Features at a glance
400 kg capacity on flat ground
Retractable drive wheel.
Ergonomic hand controls.
Powers a manually-pushed bed.
online

$7,127.56 $6,479.60

Availability: 12 in stock

Add to Quote
secure
Product Enquiry?
Apply for a Trade Account & Get a Better Price

Retractable Powered Fifth Wheel

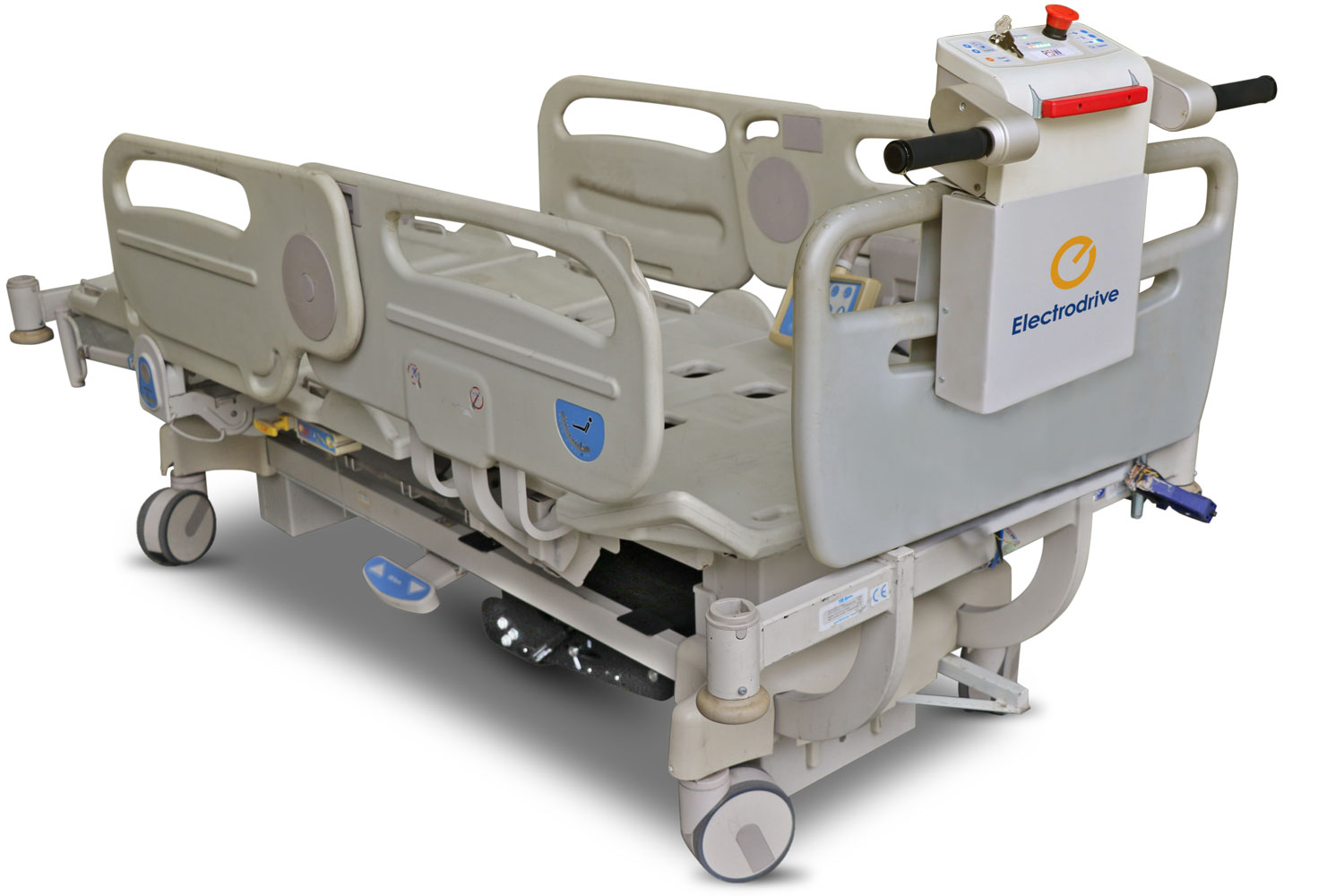

GZP5W400HBAU application p5w bed 02The P5W powered bed mover fitted to a hospital bed

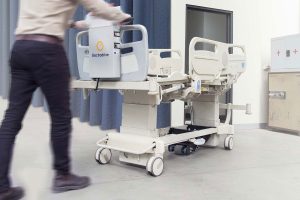

GZP5W400HBAU application p5w bed 03The P5W powered bed mover in action

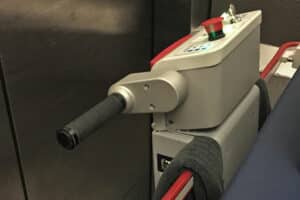

application p5w bed 03 liftThe P5W can easily fit in a lift

Retrofittable powered bed-moving kit

The Powered Fifth Wheel (P5W) is a retrofittable solution for converting your manually-pushed hospital beds into powered ones.

Controlled with an ergonomically designed control grip for a natural walking posture, the Powered Fifth Wheel works with your bed’s other four wheels to help you move patients safely and efficiently.

The retractable fifth wheel provides maximum manoeuvrability and can be lifted or lowered at the simple press of a button on the hand control unit. It requires a minimum ground clearance of 200 mm underneath the bed, trolley or stretcher.

Proudly designed and manufactured in Australia.

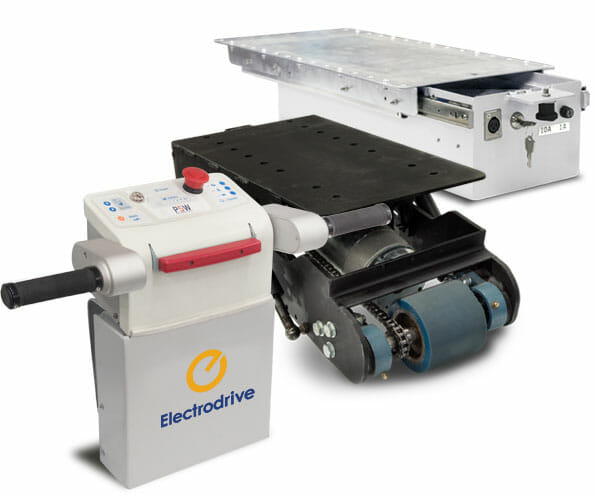

The Retractable Powered Fifth Wheel kit contains:

  1. A powerful motorised retractable drive-wheel.
  2. A ‘Gzunda’ style two-hand control unit.
  3. A slide-out battery carriage.
  4. A battery charger.

Typical applications

A retrofittable solution for converting manually-pushed hospital beds into powered ones.

Features and specifications

Load capacity
  • Move up to 400 kg on flat ground.
Max. speed
  • Up to 4.5 km per hour.
Speed mode
  • Three speed control with forward, reverse and emergency stop.
Usability
  • Intuitive controls with twist-grip throttle and horn.
  • Battery operated and rechargeable.
  • Ergonomic design.
  • Maximum manoeuvrability with the reatractable drive wheel.
  • Simple to use.
  • Quiet, smooth operation.
  • Zero emissions.
Country of origin
  • Designed and manufactured in Australia.
Safety features
  • Emergency stop button.
  • Emergency back-off button.
Warranty
  • Comprehensive 12-month warranty.
  • Six month warranty on battery and charger.
Service
  • Training and servicing programs are available.
Battery
  • Two 12V-33Ah rechargeable batteries (assembled within slide-out carriage) with 24V smart charger.
    (International chargers are also available.)
Dimensions (L/W/H)
  • Drive wheel: 511/285/150-300 mm
Retractable P5W diagram
Weight 98 kg
Order code

GZP5W400HBAU, EDGZP5WCONTROL, EDGZP5WWHEEL, EDP5WBATCARRIAGE
