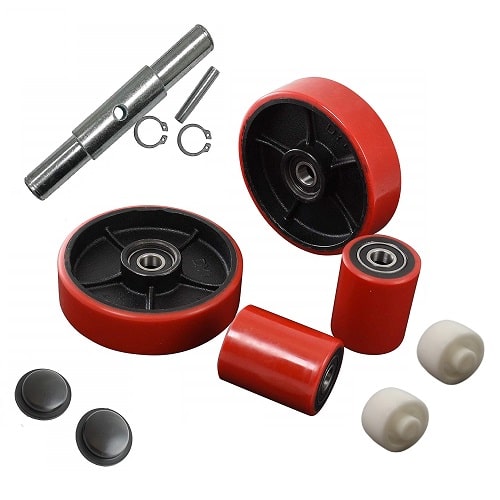

• 2x Rollers
  • 2x Rear Steering Wheels
  • 8x Bearings
  • 1x Axel
  • 1x Split Pin
  • 2x Circlips

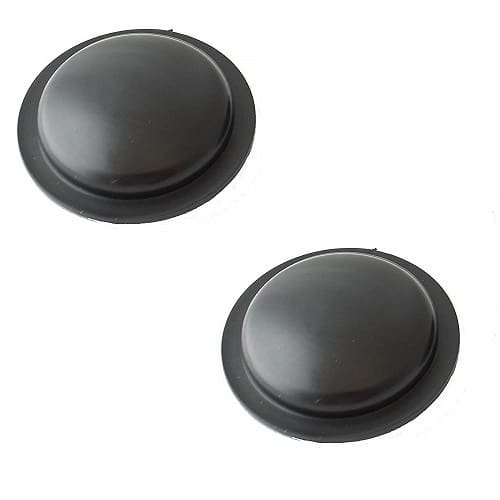

  • 2x Dust Covers
  • 2x Entry Rollers

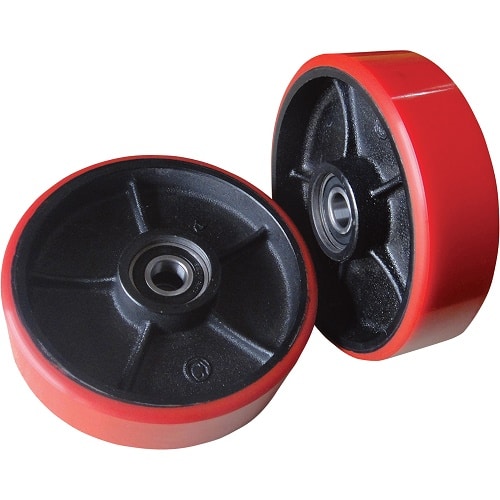

Steering Wheel Features

  • Steering Wheel x2.
  • Polyurethane is a softer compound.
  • Used mainly on delicate surfaces like marble, timber and tile floors.
  • Includes 6204 Bearings.

(Will also fit pallet jacks that have 200mm dia wheels)



Specifications:

Model AC310P
Wheel Diameter 180mm
Wheel Width 50mm
Bearing 6204
Bearing Inner Diameter 20mm
Bearing Outer Diameter 47mm

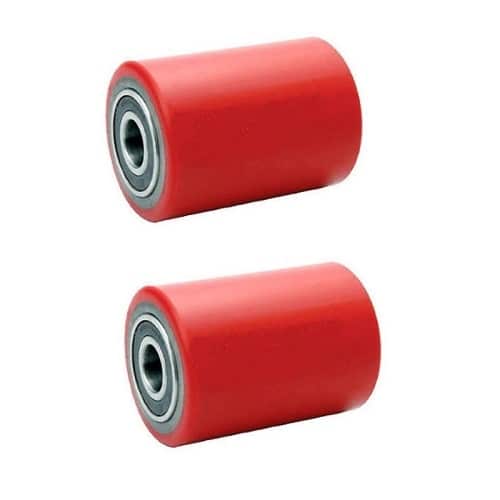

Roller Features

  • Front Roller x2.
  • Polyurethane is a softer compound.
  • Used mainly on delicate surfaces like marble, timber and tile floors.
  • Includes 6204 Bearings.



Specifications:

Model AC234N
Roller Diameter 74mm
Roller Length 93mm
Bearing 6204
Bearing Inner Diameter 20mm
Bearing Outer Diameter 47mm


Axel / Shaft Specifications:

Model AC#316
Wheel Bore Hole 20mm
Wheel Recess 50mm
Pump Diameter 25mm
Overall Length 178mm
Hole Diameter 9mm


Front Entry Roller Specifications:

Model AC#232
Roller Inner Diameter 10mm
Roller Outer Diameter 47mm
Material Nylon
