Ultra – Self Bailer Large Replacement Filter, PVC (400mmL x 150mmW x 150mmH)
Replacement filter cartridge for Ultra-Self Bailer Large systems, designed to maintain hydrocarbon filtration performance. Features reactive media that seals on contact with oils, ensuring safe drainage and environmental compliance.
$990.00 $900.00
SHS-CHU9938 Ultra-Self Bailer Large Replacement Filter PVC (400mmL x 150mmW x 150mmH)
Replacement Hydrocarbon Filter Cartridge for Ultra-Self Bailer Large Systems
Overview
The CHU9938 Ultra-Self Bailer Large Replacement Filter is designed to restore and maintain the performance of Ultra-Self Bailer drainage systems. It provides reliable hydrocarbon filtration, ensuring safe discharge of clean water while preventing oils and fuels from escaping containment areas.
This replacement cartridge contains advanced hydrocarbon-reactive media that expands upon contact with hydrocarbons, automatically sealing the flow and protecting the environment. It is ideal for maintaining compliance in spill containment systems exposed to rainwater and contamination risks.
Constructed from rigid, corrosion-resistant PVC, the filter cartridge is built for durability in harsh industrial environments. Its drop-in design allows quick and easy replacement, minimising downtime and ensuring continuous system performance.
Key Features & Benefits
Hydrocarbon Reactive Media
Expands on contact with oils and fuels to block contaminated discharge.
Maintains System Performance
Restores effective filtration in Ultra-Self Bailer units.
Easy Replacement
Drop-in cartridge design for quick installation and minimal downtime.
High Flow Capacity
Supports efficient drainage of clean water.
Durable PVC Construction
Corrosion-resistant for long-term industrial use.
Environmental Protection
Helps maintain compliance with spill containment regulations.
Reliable Operation
Designed for consistent performance in demanding outdoor conditions.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHU9938 |
| Length | 400mm |
| Width | 150mm |
| Height | 150mm |
| Filter Pack Quantity | 1 Replacement Filter |
| Material | Rigid PVC (Polyvinyl Chloride), corrosion-resistant |
| Liquid Holding Capacity | 620–830 mL |
| Hydrocarbon Cut-Off Volume | 770–950 mL |
| Flow Rate (Clean Water) | 84 L/h at 50 mm head pressure |

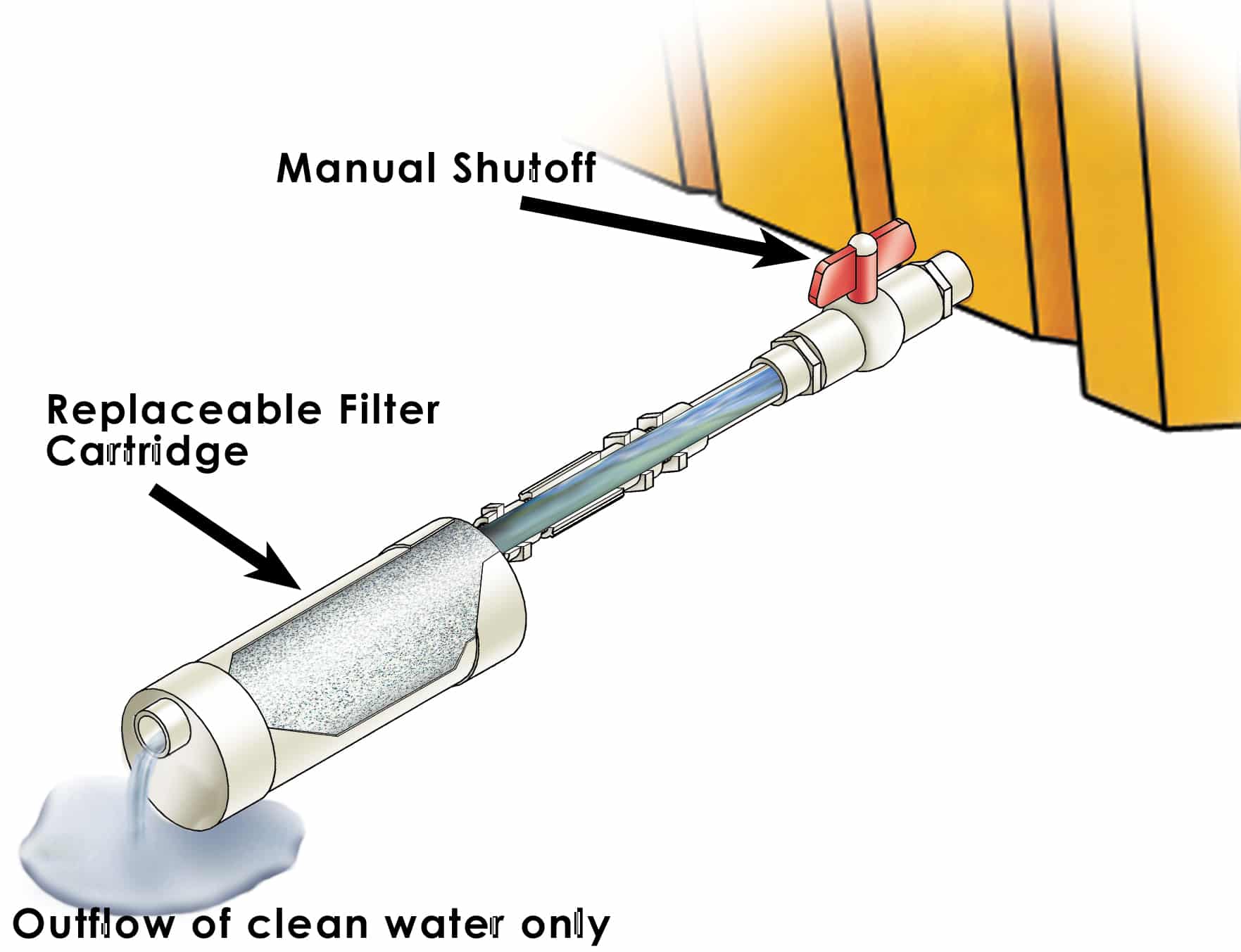

| Operating Principle | Gravity-fed passive drainage with automatic hydrocarbon shut-off |
| Installation Type | Drop-in cartridge with mechanical seal at bulkhead |
| Replacement Frequency | Based on contamination load and usage frequency |

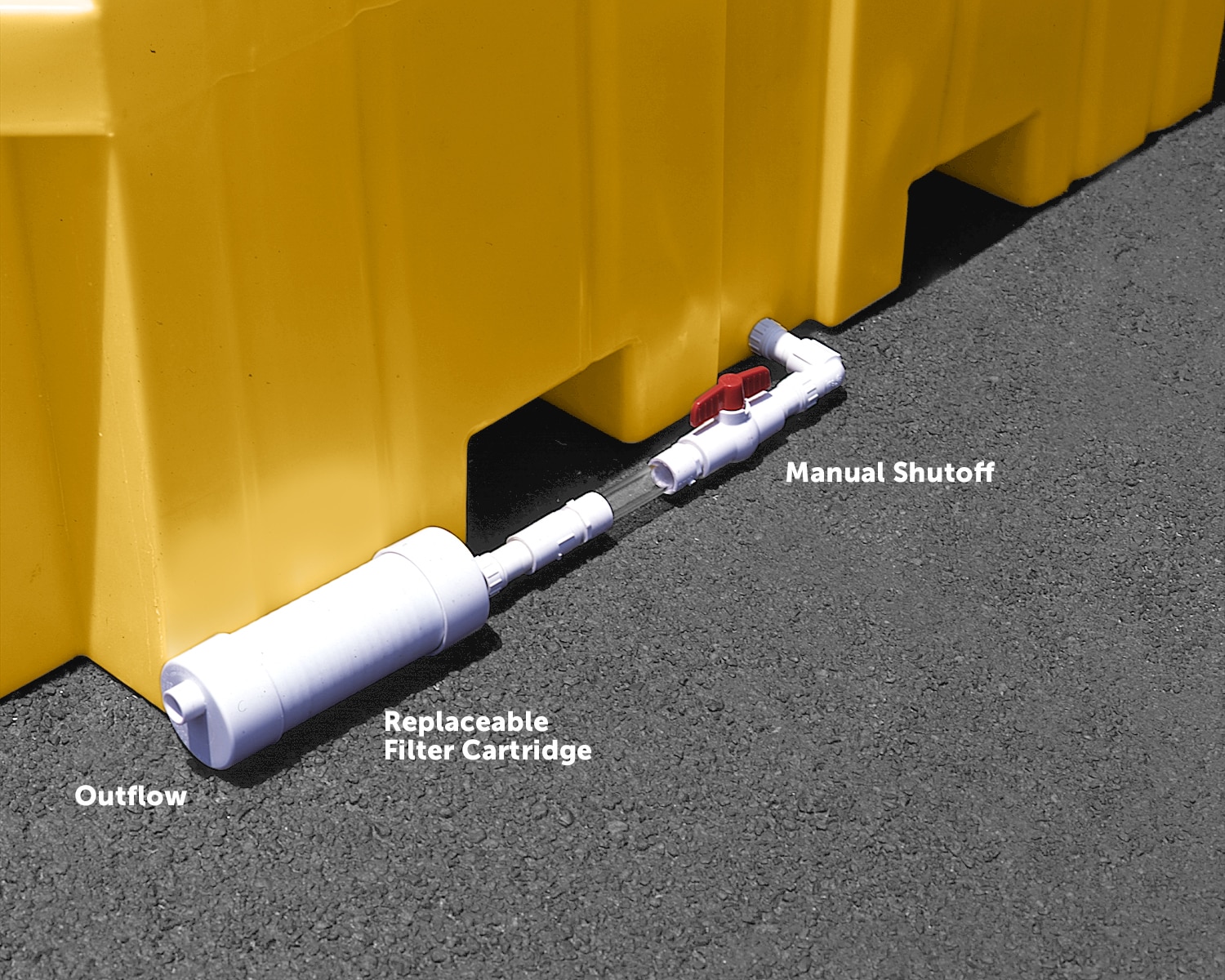

| Manual Override | Integrated on/off shut-off valve |
| Installation Orientation | Vertical mount at lowest point of containment |
| UV Resistance | Yes (-20°C to +60°C) |
| Country of Origin | USA |
| HS Code | 8421.99 |
| Workmanship Warranty | 1 Year |
Best Fit For
Ultra-Self Bailer Large systems (CHU9937)
Spill containment bund maintenance
Outdoor fuel and chemical storage sites
Industrial drainage systems
Environmental compliance applications
Not Suitable For
Standalone drainage systems without bailer unit
High-pressure filtration systems
Non-compatible containment equipment
Related Products
Ultra-Self Bailer Large (CHU9937)
Ultra-Self Bailer Standard (CHU9935)
Ground Mats
Carry Bags
Download Product Brochure
| Weight | 2.1 kg |
|---|---|
| Dimensions | 41.3 × 16.5 × 15.9 cm |
