Flexible Floor Bunding (30mL x 205mmW x 75mmH)
CHFFB02 Flexible Floor Bunding (30mL x 205mmW x 75mmH) – 30 metre length of compressible, self-restoring spill containment bunding for low-speed forklift areas. The 75mm high triangular profile allows smooth vehicle crossing without load disruption while containing spills. Made from 900gsm high-visibility PVC with HF-welded construction, excellent chemical resistance, UV stability (5-year warranty), and fire-retardant properties (AS1530/NFPA 701). Ideal for maintenance bays, decanting points, and warehouse zones. Australian made, complies with AS2281-1993. Installation kits and corner joins available separately.
$2,123.00 $1,930.00
SHS-CHFFB02 Flexible Floor Bunding (30mL x 205mmW x 75mmH)
Medium Profile Flexible Floor Bunding – 30 Metre Length
Overview
The CHFFB02 Flexible Floor Bunding is a 30-metre length section of Chatoyer’s medium-profile spill containment system. Designed for areas requiring a 75mm high barrier without sacrificing vehicle access, its unique triangular profile compresses under low-speed forklift traffic, allowing smooth crossing without load disruption, then instantly returns to its original shape to maintain continuous spill protection. Made from heavy-duty, high-visibility PVC with HF-welded construction, this bunding is ideal for creating safe, compliant work zones around decanting areas, maintenance bays, and warehouse operations.
Key Features & Benefits

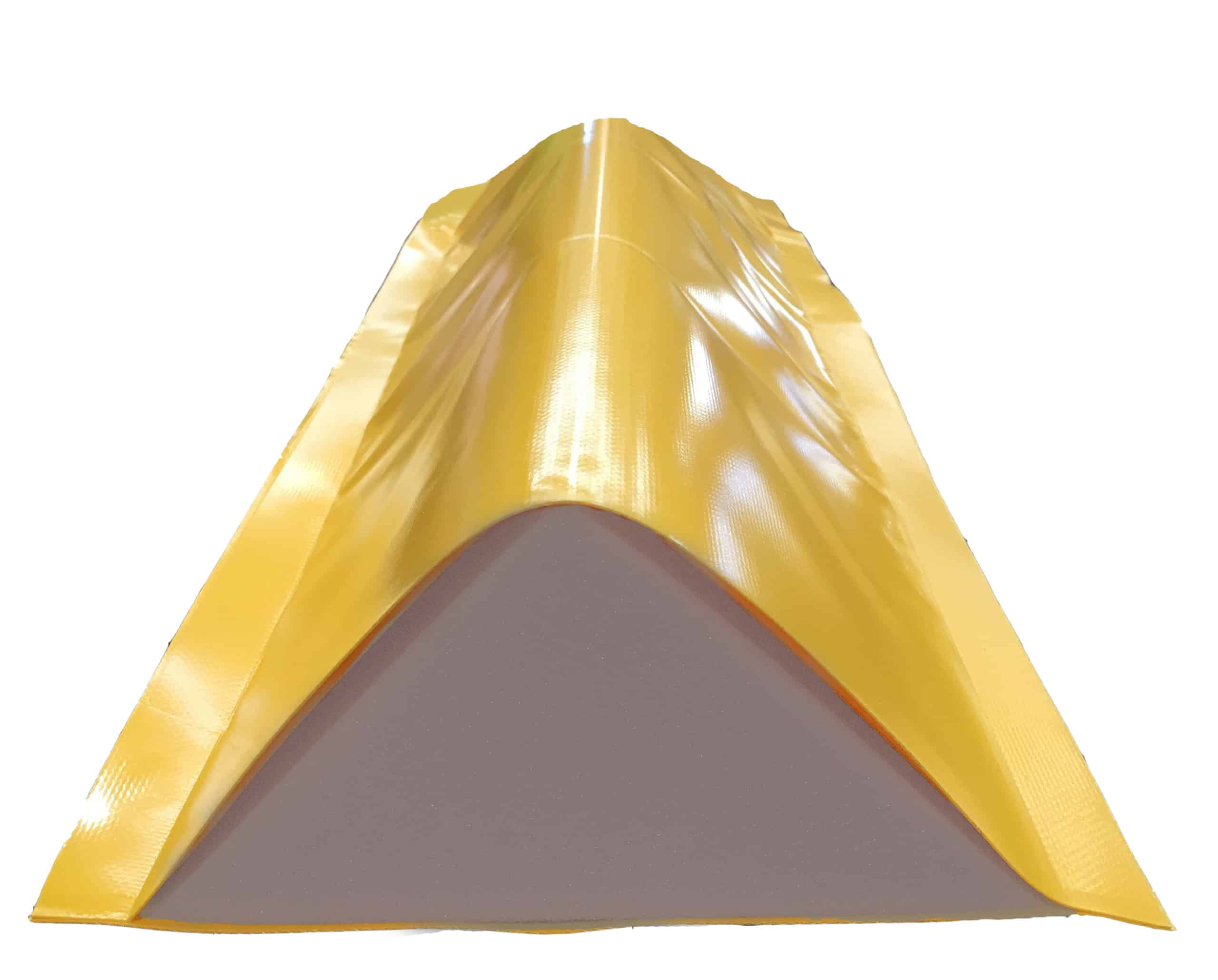

Compressible & Self-Restoring: The 75mm high triangular foam core compresses under vehicle weight and rebounds immediately, ensuring uninterrupted spill containment even in active traffic areas.
High-Visibility Safety: Constructed from bright yellow PVC with gloss acrylic lacquer finish on both sides, it provides a clear visual boundary to help prevent spills from spreading and alert personnel to hazard zones.
Durable & Chemical Resistant: Made from 900gsm heavy-duty PVC with good general chemical resistance, suitable for industrial environments.
UV Stable: 5 year UV warranty on both scrim and coating ensures long-lasting performance in indoor and outdoor applications.
Fire Retardant: Self-extinguishes when the ignition source is removed, complying with AS1530 Part 2 & 3 and NFPA 701-2004 standards.
Wide Temperature Range: Performs reliably in temperatures from -20°C to +70°C.
HF-Welded Construction: High-frequency welded seams provide superior strength and durability compared to traditional stitching.
Australian Made: Manufactured in Australia to high-quality standards and complies with AS2281-1993 testing standards.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHFFB02 |
| Length | 30 metres |
| Width | 205mm |
| Height | 75mm |
| Construction Method | HF Welded |
| Fabric Material | Yellow PVC with gloss acrylic lacquer on both sides |
| Fabric Material Weight | 900 gsm |
| Chemical Resistance | Good general chemical resistance |
| UV Resistance | 5 year UV warranty (scrim and coating) |
| Fire Rating | AS1530 Part 2 & 3; NFPA 701-2004 (self-extinguishing when ignition source removed) |
| Temperature Range | -20°C to +70°C |
| Fabric Tensile Strength | Warp 4800N/5cm, Weft 4800N/5cm |
| Fabric Tear Strength | Warp 671N/5cm, Weft 603N/5cm |
| Foam Material | White triangular shape foam |
| Foam Density | 22.5 – 24 kg/m³ |
| Foam Hardness (IFD 40%) | 130N ± 20 |
| Foam Tear Resistance | 300N Minimum |
| Foam Tensile Strength | 100 kPa Minimum |
| Foam Elongation | 150% Minimum |
| Foam Resilience | 40% Minimum |
| Foam Compression Set | 7% Maximum |
| Indentation Factor | 1.75% |
| Testing Standard | Complies with AS2281-1993 |
| Country of Origin | Australia |
| HS Code | 3926.90 |
| Workmanship Warranty | 1 Year |
Best Fit For
Low speed forklift crossings into bunded work bays and maintenance zones
Transfer or decanting points where you want more containment height without blocking access
Warehouse operational areas where a visible boundary helps keep spills in zone
Not Suitable For
High speed travel lanes or continuous traffic cycles
Heavily loaded equipment with limited ground clearance
Sites needing rigid bund walls or permanent civil works
Optional Accessories
90° Corner Join
Installation Kit (includes screws, aluminium flat bar and sealant)
Download Product Brochure
| Weight | 31 kg |
|---|---|
| Dimensions | 125 × 125 × 20 cm |
