Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 75mmH)

SHS-CHFFB29 Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 75mmH)

Flexible Floor Bunding 90° Corner Join – Spill Containment Corner Section

Overview
The CHFFB29 Flexible Floor Bunding 90° Corner Join is designed to create a secure corner connection within Chatoyer flexible floor bunding systems. This component allows bunding sections to form sealed 90-degree containment layouts while maintaining the same compressible and self-restoring properties as the straight bunding lengths.

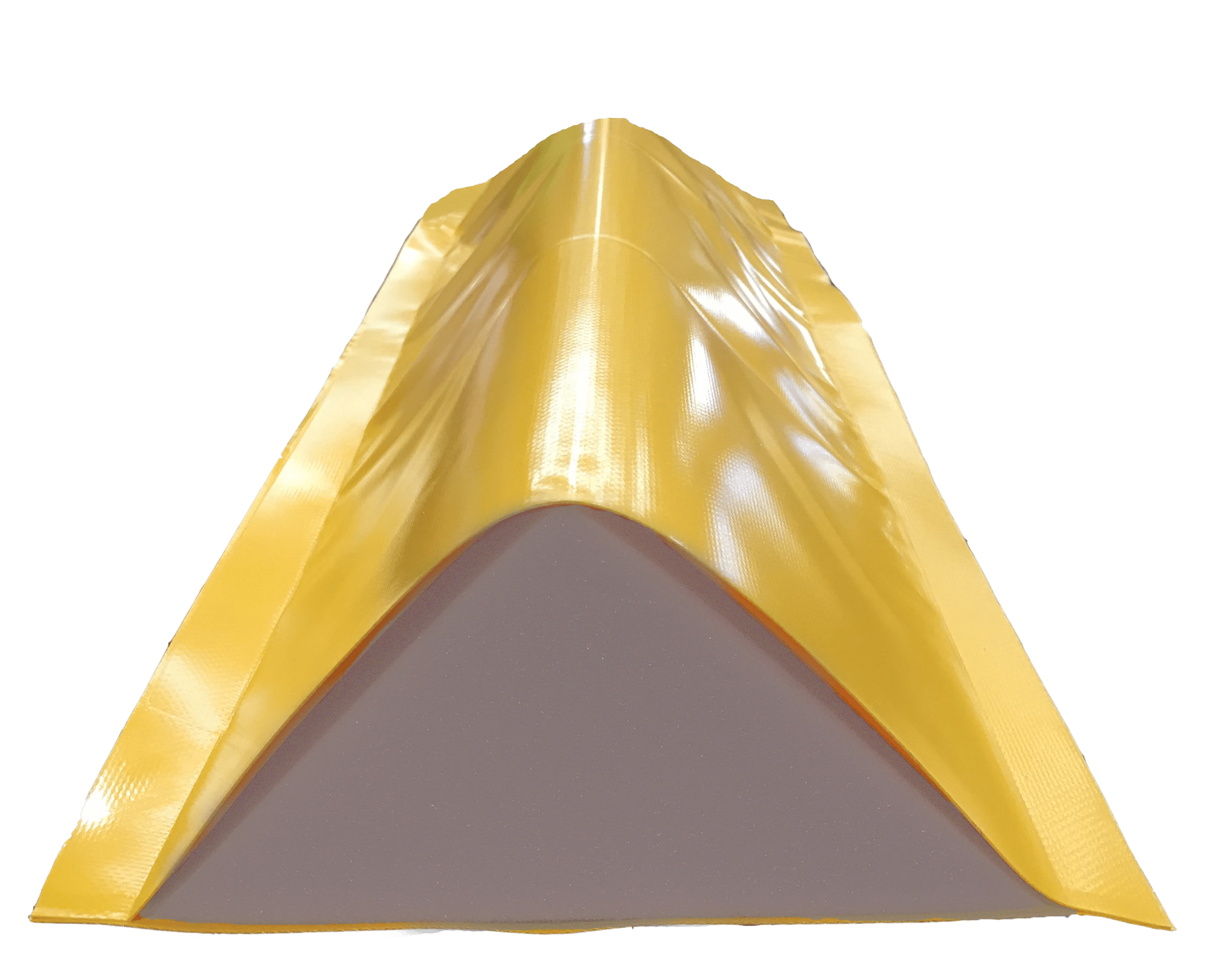

Constructed from heavy-duty 900gsm yellow PVC with gloss acrylic lacquer on both sides and reinforced with a triangular foam core, this corner join provides durable spill containment while remaining flexible enough to compress under low-speed vehicle traffic such as forklifts or pallet jacks. Once the load passes, the bund immediately returns to its original shape, maintaining effective containment.

Ideal for warehouses, decanting areas, maintenance bays, and industrial work zones, the CHFFB29 ensures continuous spill protection even in high-activity environments.

Key Features & Benefits

90° Corner Connection:
Allows flexible floor bunding systems to form sealed corner layouts while maintaining continuous spill containment.

Compressible Foam Core:
The triangular foam insert compresses under vehicle weight and rebounds immediately, enabling smooth crossings without disrupting operations.

Heavy-Duty PVC Construction:
Manufactured from durable 900gsm PVC with gloss acrylic lacquer on both sides for long-lasting industrial performance.

Chemical Resistant:
Provides good general chemical resistance, making it suitable for industrial spill containment environments.

High Visibility Safety Design:
Bright yellow material clearly defines containment zones to help prevent accidental spills spreading beyond controlled areas.

HF Welded Construction:
High-frequency welded seams provide superior strength and durability compared with stitched alternatives.

Technical Specifications

Best Fit For

Industrial spill containment systems requiring corner bunding layouts
Warehouse loading zones and forklift access areas
Decanting and chemical handling areas
Maintenance bays requiring flexible spill barriers

Not Suitable For

High speed vehicle travel lanes
Areas requiring rigid or permanent concrete bund walls
Applications with extremely heavy machinery and minimal ground clearance

Optional Accessories

CHFFB36 – Installation Kit for 5m Bunding Length
CHFFB37 – Installation Kit for 10m Bunding Length
CHFFB08 – Installation Kit for 90° Corner Join
