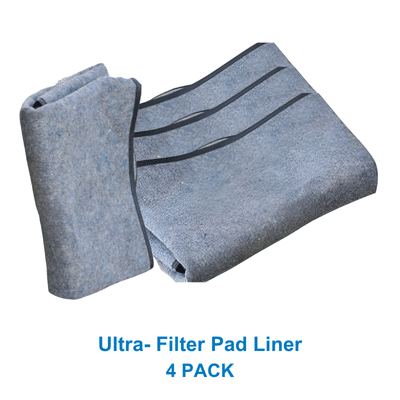

Ultra – Filter Pad Liner 4 Pack (0.75mL x 0.6mW) 3L each
Ultra‑Filter Pad Liner 4 Pack – replacement filter liners for Ultra‑Filter Pad (CHU6540). Each liner (0.75m x 0.6m x 75mm) captures up to 3 litres of hydrocarbons and sediments using high‑flow 460gsm nonwoven geotextile. Quick‑release design enables tool‑free replacement. Made from recycled synthetic fibres in the USA. 4‑pack weight 0.7 kg. Ideal for maintaining stormwater compliance at fuelling stations, industrial sites, and catch basins.
$143.00 $130.00
SHS-CHU6550 – Ultra-Filter Pad Liner 4 Pack (0.75m x 0.6m x 75mm, 3L)
Replacement Filter Liners for Ultra‑Filter Pad – 4 Pack
Overview
The Ultra‑Filter Pad Liner is a direct replacement filter insert designed for use with the Ultra‑Filter Pad stormwater filtration system. Each liner is manufactured from high‑performance Ultra‑Filter‑Tex nonwoven geotextile, the same material used in the original filter pad assembly. With a hydrocarbon capacity of 3 litres per liner, these replacements enable continued effective capture of oils, fuels, and sediments from stormwater runoff.
Supplied in a convenient 4‑pack, these liners allow for multiple service cycles, reducing downtime and waste. Quick‑release corner fasteners on the filter pad housing enable tool‑free liner changes, making field maintenance simple and efficient. Each liner is made from recycled synthetic fibres, supporting sustainable environmental practices.
Key Features & Benefits
Direct Replacement Fit
Engineered specifically for the Ultra‑Filter Pad (CHU6540) – ensures seamless installation and consistent performance.
High Hydrocarbon Capacity
Each liner captures up to 3 litres of oil and fuel – effectively removes hydrocarbons from stormwater before discharge.
High‑Flow Filtration
Ultra‑Filter‑Tex media delivers flow rate of 6.70 L/m² and permeability of 0.72 cm/s for efficient water passage.
Durable Construction
460gsm nonwoven geotextile with high tensile and puncture resistance – withstands abrasive debris and repeated use.
Quick‑Release Compatibility
Designed to work with the pad’s corner fasteners for tool‑free, rapid replacement.
Sustainable Material
Made from recycled synthetic fibres – reduces environmental footprint.
Technical Specifications
| Specification | Detail | Product Code | CHU6550 |
|---|---|
| Product Name | Ultra‑Filter Pad Liner 4 Pack |
| Quantity | 4 liners per pack |
| Liner Dimensions | 0.75m L x 0.6m W x 75mm H |
| Hydrocarbon Capacity per Liner | 3 L |
| Pack Weight | 0.7 kg |
| Material | Greyscale nonwoven textile; manufactured from recycled synthetic fibres |
| Mass Per Unit Area | 460 gsm |
| Elongation at Peak (MD) | 131% |
| Elongation at Peak (TD) | 172% |
| Wide Width Tensile (MD) | 5.89 kg |
| Wide Width Tensile (TD) | 411 kg |
| Elongation at Break (MD) | 110% |
| Elongation at Break (TD) | 156% |
| Mullen Burst | 15 kg/cm² |
| Puncture Resistance | 32.7 kg |
| Permittivity | 2.02 sec⁻¹ |
| Permeability | 0.72 cm/s |
| Flow Rate | 6.70 L/m² (nominal) |
| Pore Size (nominal) | 100 microns |
| Country of Origin | USA |
| HS Code | 5603.14 |
| Workmanship Warranty | 1 Year |
Performance Features
Direct replacement liner for Ultra‑Filter Pad (CHU6540)
3‑litre hydrocarbon capacity per liner
High‑flow filtration with 6.70 L/m² flow rate
Durable 460gsm nonwoven geotextile – resists tearing and punctures
100‑micron pore size for reliable solids capture
Made from recycled synthetic fibres
4 liners per pack – convenient for scheduled maintenance
Applications
Stormwater catch basins and drop inlets
Fuel stations and vehicle maintenance yards
Industrial loading docks and wash bays
Parking lots and commercial facilities
Environmental compliance programs
Best Fit For
Facilities using Ultra‑Filter Pad (CHU6540) needing regular liner replacement
Sites with moderate oil and sediment loads
Maintenance teams requiring cost‑effective, pre‑packaged filter liners
Not Suitable For
Use without the compatible Ultra‑Filter Pad housing
High‑flow applications where bypass may occur without proper housing
Chemical spills requiring specialised absorbents (use chemical‑specific filters)
Download Product Brochure
| Weight | 0.7 kg |
|---|---|
| Dimensions | 38.1 × 30.5 × 30.5 cm |
