Ultra – Filter – Tex (76mL x 1.5mW) 6.70L/sqm
Ultra‑Filter‑Tex (460gsm, 76m x 1.5m) – high‑flow nonwoven geotextile for hydrocarbon separation and dewatering. Needle‑punched recycled synthetic fibres with 460gsm mass, 100‑micron pore size, 60 L/m²/sec flow rate, and 6.70 L/m² hydrocarbon capacity. High tensile strength (MD 5.89 kg, TD 411 kg), puncture resistance 32.7 kg, and Mullen burst 15 kg/cm². Roll weight 57 kg. Made in the USA. Ideal for dewatering bags, sediment control, stormwater filtration, and industrial water treatment applications requiring reliable solids and hydrocarbon retention.
$3,025.00 $2,750.00
SHS-CHU9310 – Ultra-Filter-Tex (460gsm, 76m x 1.5m, 6.70 L/m²)
High‑Flow Geotextile Filter Fabric for Hydrocarbon Separation & Dewatering
Overview
Ultra‑Filter‑Tex is a heavy‑duty, needle‑punched nonwoven geotextile engineered for demanding filtration and hydrocarbon separation applications. Manufactured from recycled synthetic fibres, this 460gsm fabric combines high strength with excellent flow characteristics, making it ideal for use in dewatering bags, sediment control, and industrial filtration systems.
With a width of 1.5 metres and a 76‑metre roll length, it provides ample coverage for large‑scale projects. The material achieves a flow rate of 60 litres per square metre per second and a nominal hydrocarbon capacity of 6.70 litres per square metre, effectively capturing oils, fuels, and suspended solids while allowing water to pass. Tested to industry standards, Ultra‑Filter‑Tex is a reliable solution for environmental compliance and water treatment.
Key Features & Benefits
High‑Flow Filtration
Flow rate of 60 L/m²/sec and permeability of 0.72 cm/s ensure efficient water passage without clogging.

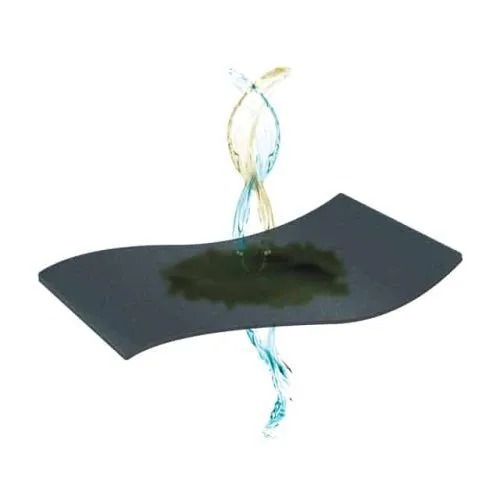

Hydrocarbon Retention
Nominal hydrocarbon capacity of 6.70 L/m² – captures oils, fuels, and solvents while allowing water to pass.
Durable Needle‑Punched Construction

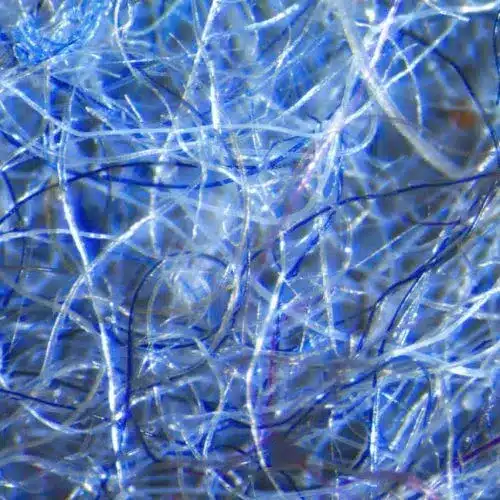

Mechanically entangled fibres form a cohesive fabric without weaving or sewing – resists delamination and tearing.
High Tensile Strength
Wide‑width tensile strength (MD 5.89 kg, TD 411 kg) and high elongation provide structural integrity under load.
Excellent Puncture & Burst Resistance
Puncture resistance of 32.7 kg and Mullen burst of 15 kg/cm² withstand abrasive debris and pressure.
Consistent Pore Size
100‑micron nominal pore size delivers reliable solids retention while maintaining permeability.
Made from Recycled Fibres
Environmentally responsible material helps reduce waste.
Technical Specifications
| Specification | Detail | Product Code | CHU9310 |
|---|---|
| Product Name | Ultra‑Filter‑Tex |
| Construction Method | Needle‑punched nonwoven; fibres mechanically entangled |
| Length | 76 m |
| Width | 1.5 m |
| Height (Roll) | 350 mm |
| Product Weight | 57 kg |
| Material | Nonwoven geotextile from recycled synthetic fibres |
| Colour | Grey |
| Mass Per Unit Area | 460 gsm |
| Elongation at Peak (MD) | 131% |
| Elongation at Peak (TD) | 172% |
| Wide Width Tensile (MD) | 5.89 kg |
| Wide Width Tensile (TD) | 411 kg |
| Elongation at Break (MD) | 110% |
| Elongation at Break (TD) | 156% |
| Mullen Burst | 15 kg/cm² |
| Puncture Resistance | 32.7 kg |
| Permittivity | 2.02 sec⁻¹ |
| Permeability | 0.72 cm/s |
| Flow Rate | 60 L/m²/sec |
| Pore Size (nominal) | 100 microns |
| Hydrocarbon Capacity (nominal) | 6.70 L/m² |
| Country of Origin | USA |
| HS Code | 5603.14 |
| Workmanship Warranty | 1 Year |
Performance Features
High‑flow filtration with 60 L/m²/sec flow rate
Hydrocarbon capacity of 6.70 L/m² – captures oils, fuels, and solvents
Strong, durable needle‑punched nonwoven construction
High tensile and tear strength for demanding installations
Excellent puncture and burst resistance
Consistent 100‑micron pore size for reliable solids retention
Made from recycled synthetic fibres – environmentally responsible
Applications
Dewatering bag filtration (primary fabric)
Sediment and erosion control
Industrial water treatment
Oil‑water separation systems
Stormwater filtration
Environmental remediation projects
Construction site dewatering
Landfill leachate treatment
Best Fit For
Environmental contractors requiring high‑capacity filter fabric
Dewatering bag manufacturers and users
Industrial facilities with hydrocarbon‑laden water
Stormwater management projects
Sites needing compliance with sediment and oil control regulations
Not Suitable For
Applications requiring woven geotextile strength (use woven fabrics)
Chemical compatibility with highly aggressive acids/alkalis without testing
Direct food contact
Download Product Brochure
