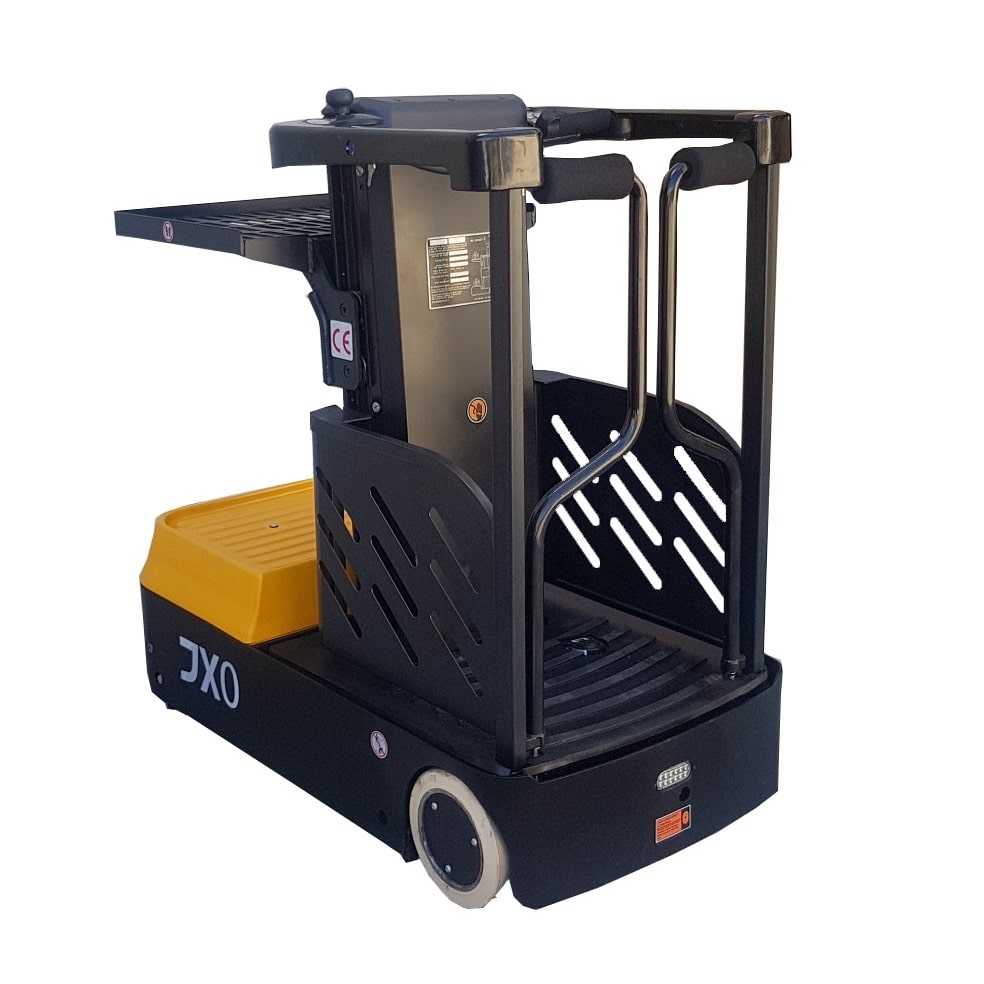

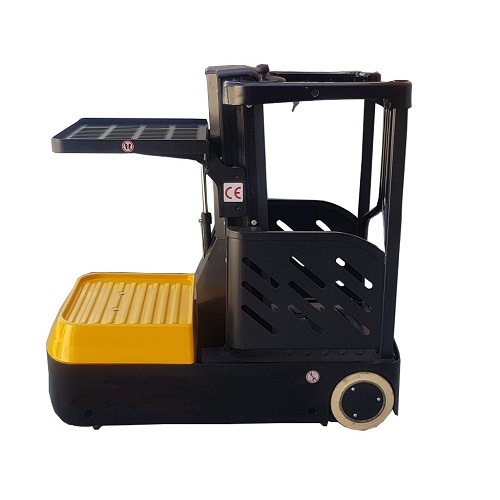

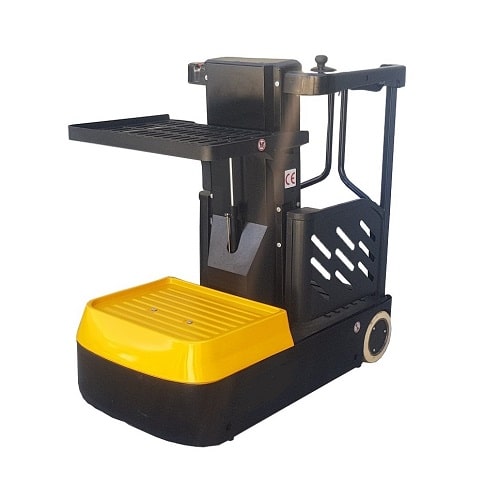

Full Electric Work Assist Platform Stacker- 336kg Capacity- 3.06m Lift Height

Performance
With its low weight and compact design this order picker is designed for narrow aisles. Increased safety by a secure working platform therefore replacing industrial ladders reducing work injuries. High stable mast with a low centre of gravity giving stability.

Drive Motor
DC drive system with quick response, accurate control, and excellent power efficiency

Brake
Electrical motor brake provides regenerative braking during deceleration.
EPS system enhances the vehicles parking brake strength.

Hydraulics and Mast

• One-way valve ensures loads stability during lift and lowering functions. This reduces the chance for product damage and assures safe operation.

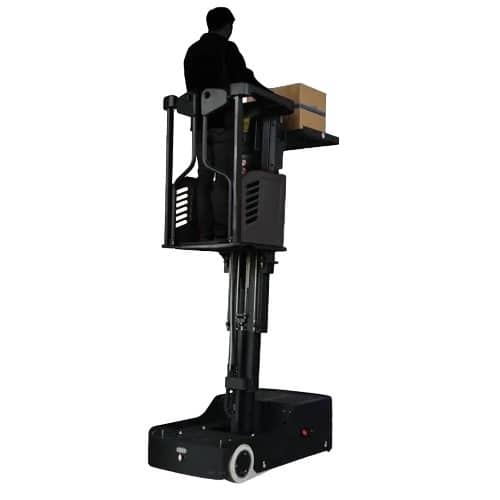

• High strength steel mast channels with oversized mast rollers provide high rigidity and low deflection and exceptional stability at height.
• Totally enclosed mast design is uniquely integrated into the vehicle to deliver strength and easy maintenance without compromising vehicle operation.
• Mechanical, hydro cylinder and electronic triple lift limit protection enhances safety while lifting or lowering in motion.

Operability & Safety

• Motor, controls and chassis have been developed together to deliver exceptional vehicle manoeuvrability that drives overall efficiency, productivity, and safety.

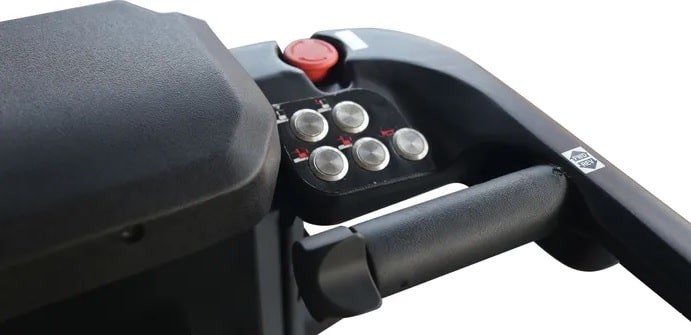

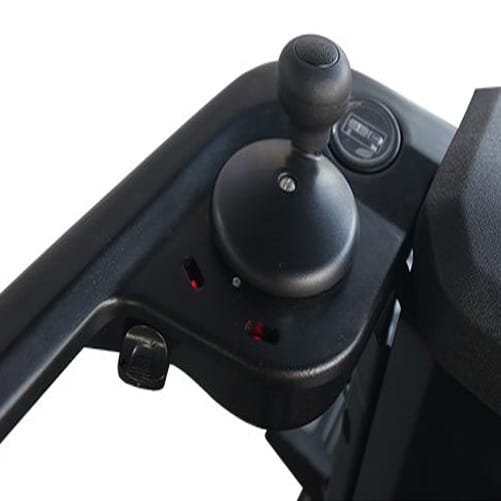

• Compact ergonomic controls provide the operator are easy and intuitive while allowing for a large comfortable operating space.
• Safe start floor pedal ensures that the operator is in a proper driving position during transit.
• Safety switches to ensure that the handrails are in the closed position during operation.

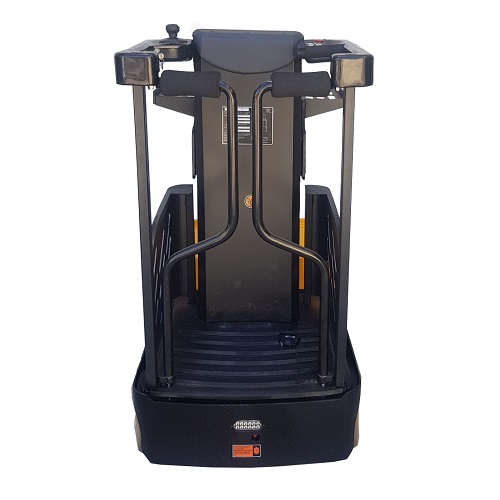

• Rear gates that lock when in operation
• Slope alarm system alerts the truck operator when driving into or across areas with a grade which may present a safety hazard.
• Lowering alarm system warns workers at ground level to be clear of the vehicle during descent.
• Ground level hydraulic release prevents operators from being trapped at height due to a system failure.
• Deceleration switch activates when the mast is lifted up to 50 cm and every mast stage elevation reducing drive speed by half to ensure stable fluid operation.

Specifications:
