All Terrain Electric Stacker 1.5T – 1.6m Lift Height | Rough Terrain Walk-Behind | Multi-Attachment Compatible
$15,077.95 $13,707.23
Description

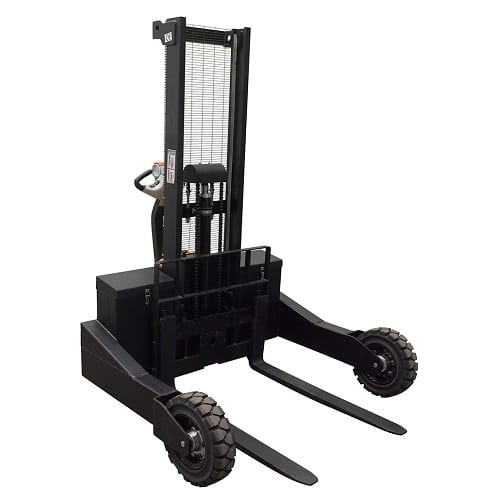

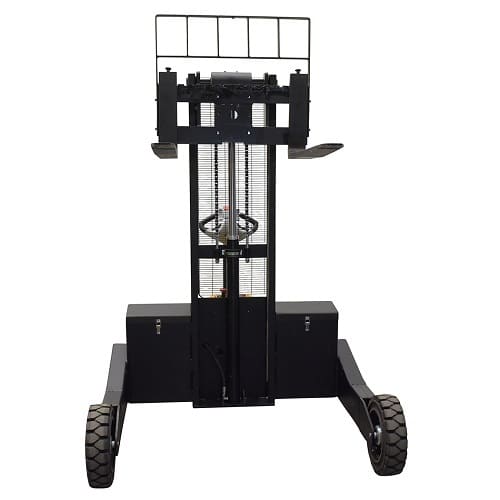

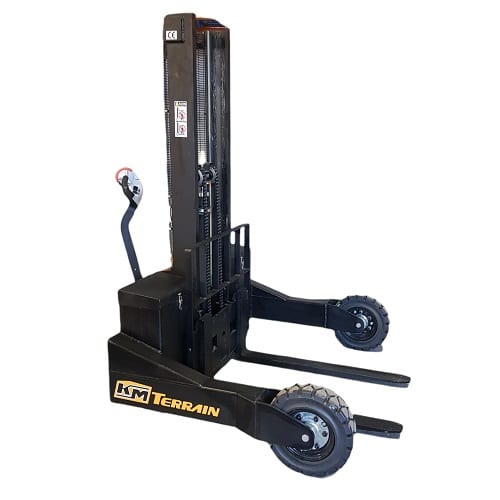

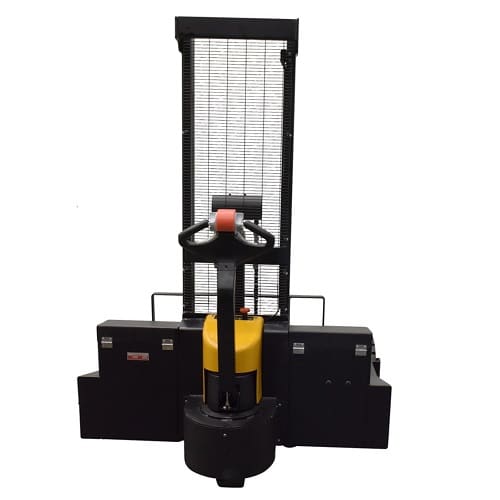

All Terrain Electric Stacker – 1500kg Capacity – 1.6m Lift

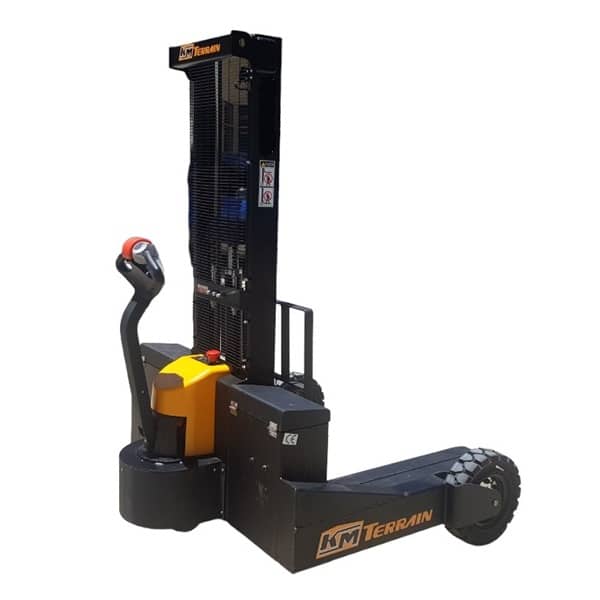

The KMT-1516HY All Terrain Electric Stacker makes unloading trucks and moving pallets across uneven yards simple and efficient. Designed as a walk-behind rough terrain stacker, this 1.5 tonne powerhouse requires no licence and is ideal for warehouses, farms, construction sites, and industrial yards.
With a 1500kg lifting capacity and up to 1.6m lift height, this electric stacker delivers powerful performance while remaining compact and easy to operate.
Built for Rough Terrain
When goods need to be moved across gravel, grass, compacted dirt, or uneven concrete, the KMT-1516HY performs where standard stackers can’t.
- Large front and rear rubber tyres
- Wide wheelbase for enhanced stability
- 100mm ground clearance below mast
- Suitable for indoor and outdoor use

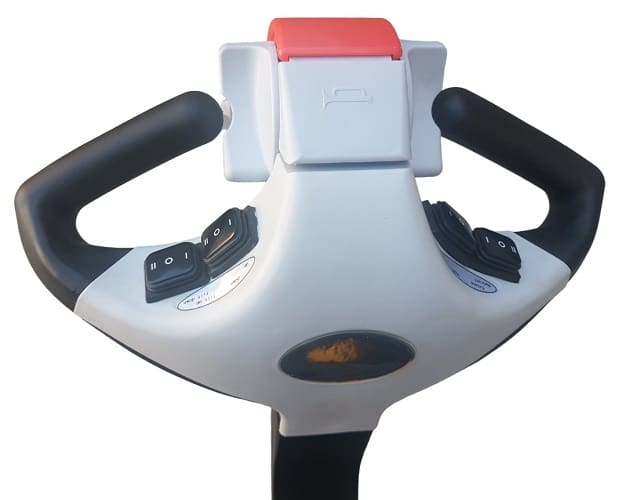

Operator-Friendly Controls
- Infinite speed adjustment
- Simple lift/lower controls
- Emergency reverse function

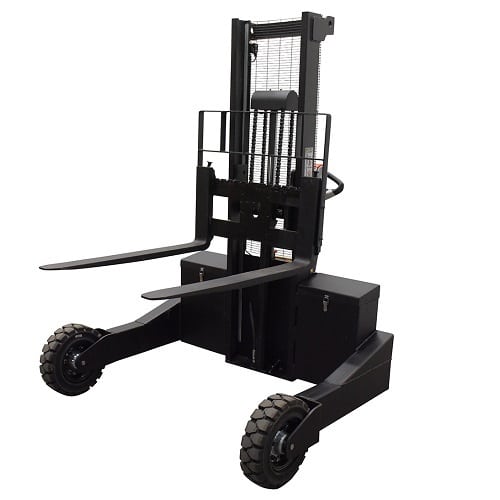

- Adjustable forks
- Electromagnetic braking system
- Mechanical steering

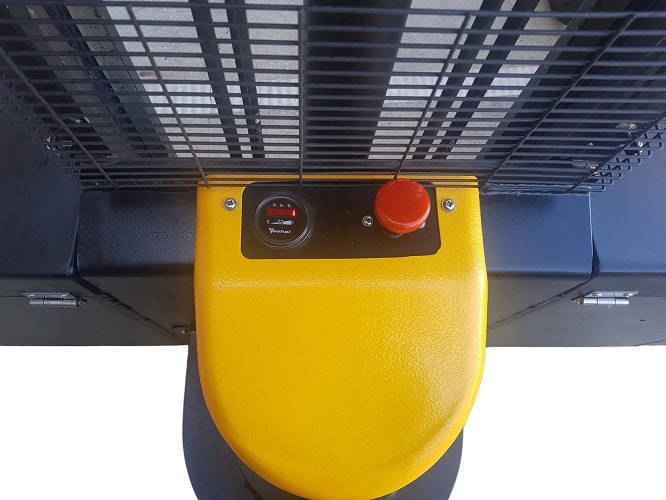

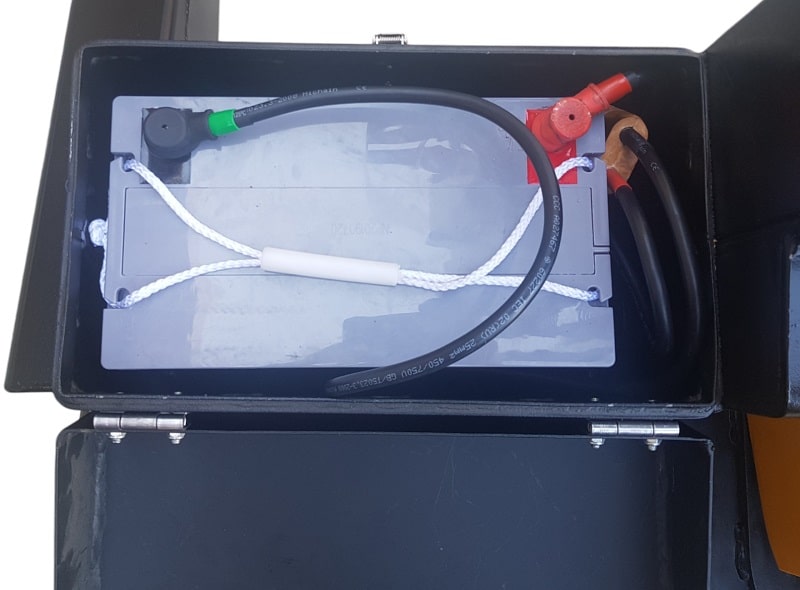

- Batteries included with integral charger and battery level indicator
Specifications
| Model | KMT-1516HYManufacturer: KM TerrainRated Capacity: 1500kgLoad Centre: 600mmLift Height: 1600mmService Weight (incl. battery): 650kgTurning Radius: 1750mmTravel Speed (Laden/Unladen): 3.5 / 7 km/hGradeability (Laden/Unladen): 5% / 10% |
| Overall Length | 1780mmOverall Width: 1575mmFork Size: 35 / 100 / 1070mmFork Carriage Width: 840mmGround Clearance: 100mm |
| Drive Motor | AC 1.5kWLift Motor: DC 24V / 2000WBattery: 2 x 12V / 100aHController: Curtis 1232E-2121 |
Shipping:
- We ship our products to all over Australia.
| Weight | 700 kg |
|---|---|
| Dimensions | 180 × 170 × 220 cm |
