Description
The EP20-20ETH is designed for cold storage environments with its waterproof handle head and is equipped with a horizontal drive system, effectively protecting the motor and brake, with a 2ton capacity Combined with a 48V brushless AC motor, it is also the perfect tool for warehouse applications as well as loading and unloading off trucks.
- Ergonomic handle with reversing switch, horn and dual butterfly.
- Thumb controls are intuitive and allow for safe, accurate operation.
- Up to 3 hours of run-time per charge, if used in cool room the run time lowers.
- Strong 48V permanent magnet drive motor.
- Able to use in -20 degree environments.
- Battery discharge indicator.
- Colour Yellow/Black (not red).

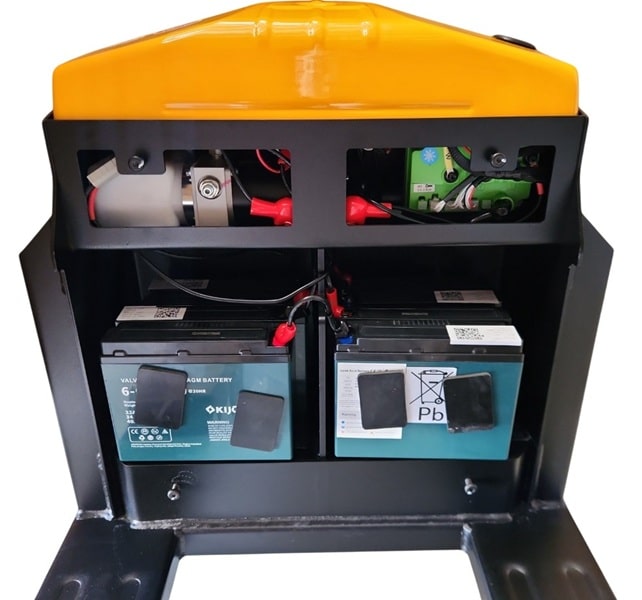

LEAD ACID BATTERY
48V Electrical system is more powerful, capable of climbing 8% slopes at a full load of 2 tons. The truck has an external charger.

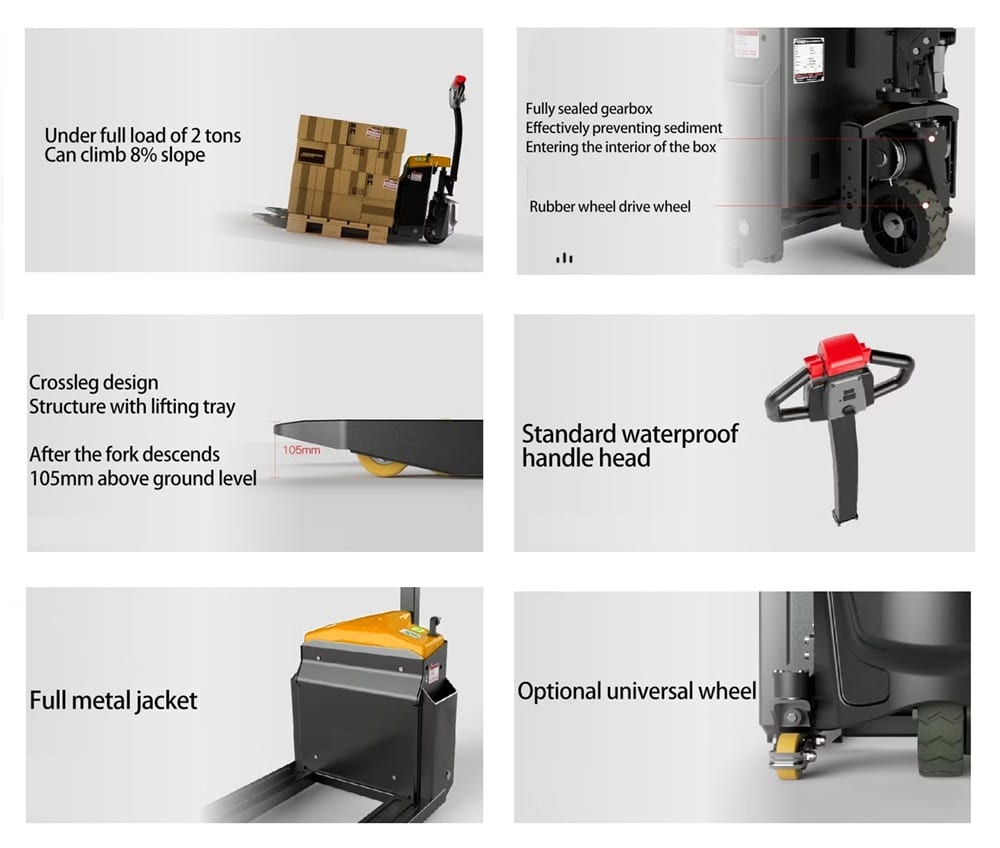

METAL CASING
The entire pallet jack shell adopts an all metal shell, which has a strong impact resistance in harsh environments and can extend its service life.
FULLY SEALED GEAR BOX
A fully sealed gear box effectively prevents mud, sand from entering the interior of the gearbox. It comes with rubber drive wheels, which are anti-slip, wear-resistant and easy to replace.
|
Model |
MEPT20-20ETH |
|
Capacity |
2000kg |
|
Fork Length |
1150mm |
|
Width |
685mm |
|
Lift Height |
115mm |
|
Wheelbase |
1301mm |
|
Maximum Climbing Slope |
8/20 |
|
Laden travel speed |
4km/h |
|
Unladen travel speed |
4.5km/h |
|
Power |
AC Motor |
|
Battery voltage |
48V/40Ah |
|
Lifting Speed |
0.027/0.038 M/S |
|
Load center |
600mm |
|
Turning Radius |
1505mm |
|
Weight |
230kg |
Please see the brochure for full specifications
