Electric Towing Tug- 1ton- 24V/20Ah Li-Ion battery with Integrated Charger

This tow tractor with its 1000kg pushing or pulling capacity makes it a simple tool to tow trolleys and bins around your warehouse. With the compact design, this tow truck is designed for narrow aisles and can climb slopes up to 3%. With 250mm diameterPneumatic tyres, the QDD10L tow trucks are ready for a variety of operations, flat ground in the warehouse, or on uneven floors or outdoors. The QDD10L is equipped with a 24V/20Ah Li-Ion battery with integrated charger, so they can be charged anywhere and anytime.

Strong tracking tows up to 1 ton on a slope on 3 degrees.
Small and compact, lightweight of 98kg.

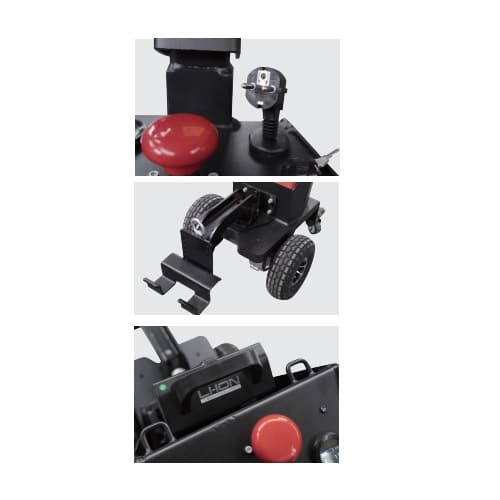

Handle with 3 positions, safety reversing switch and horn.
Easy to manoeuvre withPneumatic tyres with a diameter of 250mm.
Internal charger, easy to charge in a standard socket.
The height of the handle is adjustable for user comfort.
24volt DC drive motor and controller.
Electronic motor braking provides stopping force when not under power.
Battery discharge indicator, emergency power disconnects and key switch.

$6,200.00 $5,636.36

Apply for a Trade Account & Get a Better Price

Description
Additional information

Specifications:

Rated capacity	kg	1000
Rated drawbar pull	N	200
Wheelbase Y	mm	320
Service weight (includes battery)	kg	120
Tyre type driving/ load wheels		Pneumatic
Tyre size, drive wheel (diaxwid)	mm	2x 250×85
Tyre size, load wheel (diaxwid)	mm	2x 75×32
Height drawbar in driving position min/max	mm	841~936~1016
Overall length	mm	1210~1270~1300
Overall width	mm	520
Travel speed, lade or unladen	km/h	4.5/5
Drawbar pull, laden/unladen	N	200
Max drawbar pull, laden or unladen	N	650
Gradeability, laden/ unladen	%	3/16
Service brake type		Mechanical
Drive motor rating S2 60min	kW	0.4
Battery	V/Ah	24/20
