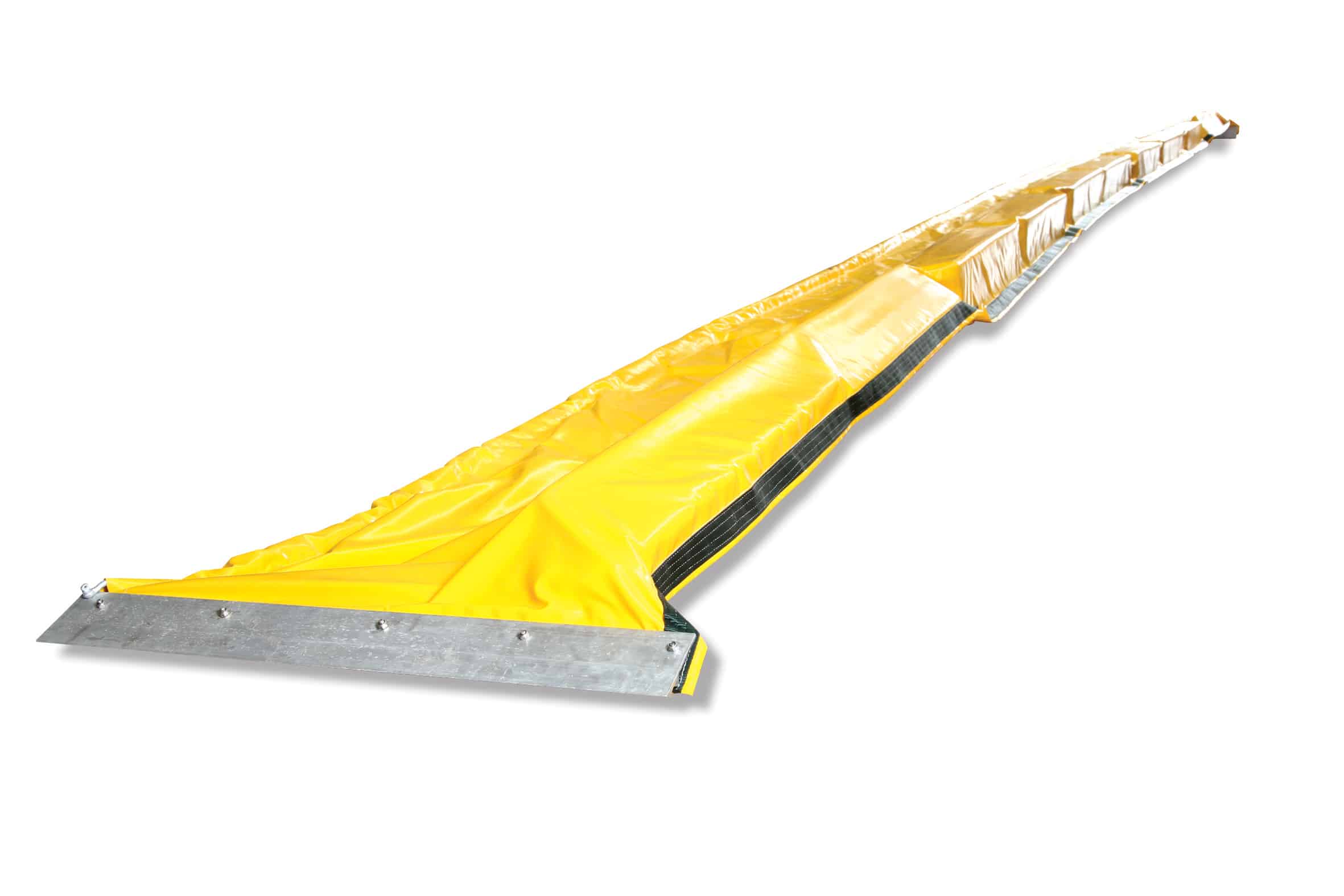

Solid Filled Containment Boom 15mL, 200mm Freeboard, 450mm Draft, 610gsm Yellow PVC

SHS-CHSCB02 Solid Filled Containment Boom (15m, 200mm Freeboard, 300mm Draft)

High Freeboard Containment Boom for Enhanced Spill Control

Overview

The CHSCB02 Solid Filled Containment Boom is a heavy-duty spill control solution designed for containing oil, fuel, and chemical spills in more demanding environments. Featuring a higher 200mm freeboard, this model provides improved containment performance in choppier water or higher-flow conditions compared to standard booms.

Constructed from durable 610gsm yellow PVC with a gloss acrylic coating, the boom offers excellent resistance to chemicals, UV exposure, and harsh environmental conditions. Closed-cell foam flotation ensures consistent buoyancy, while the integrated marine-grade ballast chain keeps the boom stable during deployment.

Key Features & Benefits

15m Spill Containment Length
Ideal for medium to large spill control applications.

Increased 200mm Freeboard
Improved containment in waves, currents, or higher spill volumes.

Solid Foam Flotation
Closed-cell foam ensures durability and reliable buoyancy.

Heavy-Duty PVC Construction (610gsm)
Strong, flexible, and built for long-term use.

Ballast Chain Stabilisation
6mm galvanised chain maintains positioning in water.

Universal ASTM Z-Connectors
Allows multiple booms to be linked for extended containment.

Fire Rated Material
Self-extinguishing fabric for added safety.

UV & Chemical Resistant
Suitable for outdoor and industrial environments.

Wide Temperature Range
Operates from -20°C to +70°C.

Technical Specifications

Optional Accessories

Tow bridle for deployment
Sand anchor set for securing position

Best Fit For

Marine spill response
Stormwater and drain protection
Industrial liquid containment
Higher flow or wave conditions

Not Suitable For

Permanent installations without anchoring
Very high-current waterways without additional securing
