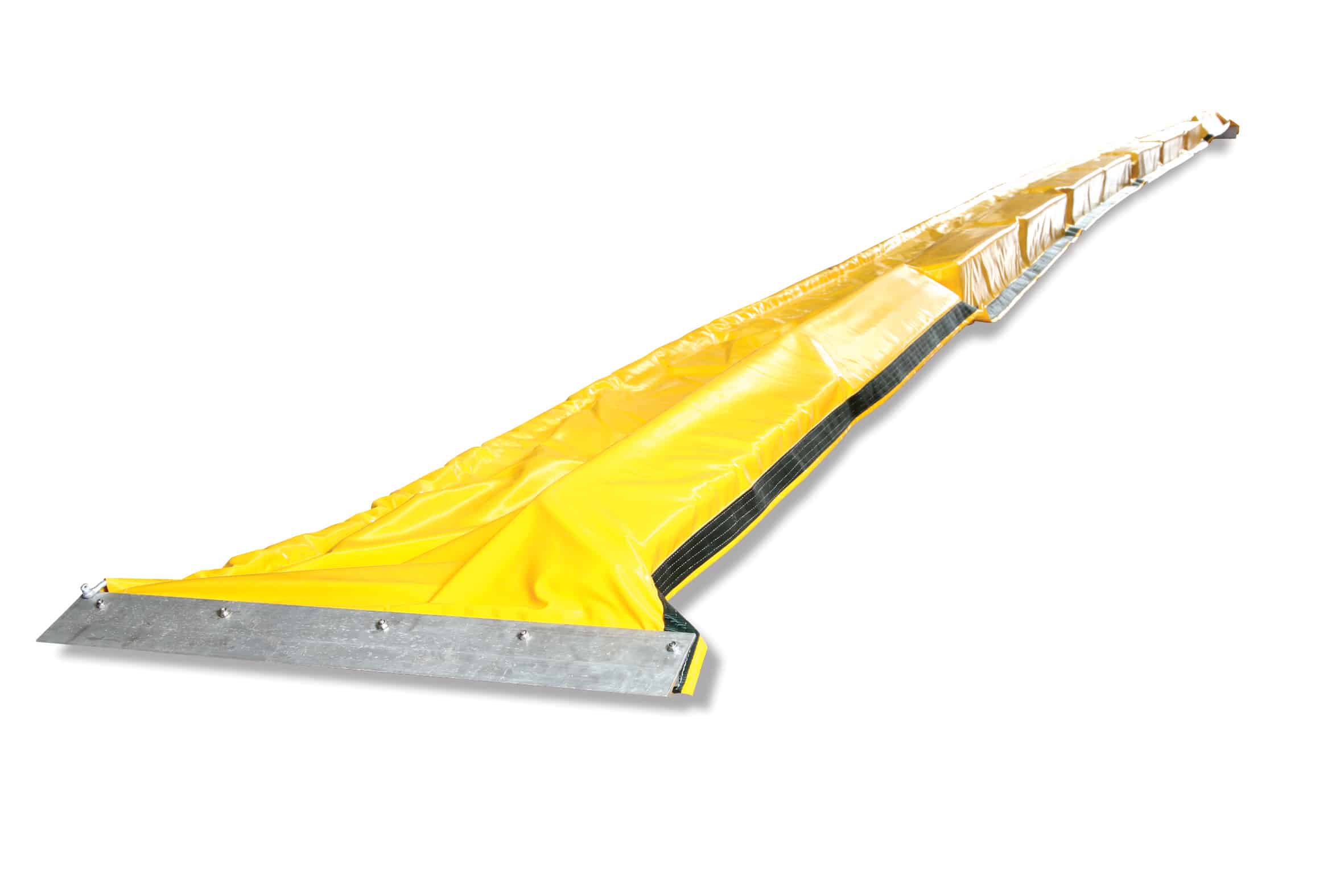

Solid Filled Containment Boom 15mL,150mm Freeboard, 300mm Draft, 610gsm Yellow PVC
15m solid-filled containment boom for controlling oil, fuel, and chemical spills.
Ideal for marine, industrial, and emergency spill response applications.
$1,474.00 $1,340.00
SHS-CHSCB01 Solid Filled Containment Boom (15m, 150mm Freeboard, 300mm Draft)
Heavy-Duty Containment Boom for Spill Control on Land & Water
Overview
The CHSCB01 Solid Filled Containment Boom is a high-performance spill control solution designed to contain and control oil, fuel, and chemical spills in both marine and land-based environments. With a 15-metre length and robust construction, it is ideal for emergency response, industrial sites, waterways, and environmental protection applications.
Manufactured from durable 610gsm yellow PVC with gloss acrylic coating, the boom provides excellent resistance to chemicals, UV exposure, and harsh environmental conditions. The integrated closed-cell foam flotation ensures reliable buoyancy, while the marine-grade ballast chain keeps the boom stable in position during deployment.
Key Features & Benefits
15m Spill Containment Length
Provides extended coverage for effective spill control.
Solid Filled Foam Flotation
Closed-cell foam ensures reliable buoyancy and durability.
Heavy-Duty PVC Construction (610gsm)
High-strength material with acrylic coating for longevity.
Stabilised with Ballast Chain
Marine-grade galvanised chain keeps boom in position.
150mm Freeboard / 300mm Draft
Optimised design to contain floating contaminants effectively.
Universal ASTM Z-Connectors
Allows multiple booms to be linked for extended containment.
Fire Rated Material
Self-extinguishing fabric enhances safety in hazardous environments.
UV & Chemical Resistant
Suitable for long-term outdoor and industrial use.
Wide Temperature Range
Operates effectively from -20°C to +70°C.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHSCB01 |
| Length | 15m |
| Freeboard | 150mm |
| Draft | 300mm |
| Material | 610gsm yellow PVC (acrylic coated both sides) |
| Construction | Hot air welded and sewn |
| Flotation | Closed-cell foam (crumble-free) |
| Ballast | 6mm galvanised chain in PVC pocket |
| Connector | ASTM F962 universal Z-connector |
| Lifting Point | Eye nut connection |
| Chemical Resistance | General resistance to oils, fuels, acids, alkalis |
| UV Resistance | Up to 5 years |
| Tensile Strength | Warp 2400N / Weft 2400N (per 5cm) |
| Tear Strength | Warp 450N / Weft 400N (per 5cm) |
| Temperature Range | -20°C to +70°C |
| Fire Rating | AS1530 / NFPA 701 (self-extinguishing) |
| Country of Origin | Australia |
| HS Code | 8907.90 |
| Warranty | 1 Year |
Optional Accessories
Tow bridle for deployment
Sand anchor set for securing position
Best Fit For
Oil and fuel spill containment
Marine and waterway protection
Industrial spill response
Stormwater drain protection
Not Suitable For
High-current water environments without anchoring
Long-term permanent installation without inspection
Download Product Brochure
| Weight | 30 kg |
|---|---|
| Dimensions | 140 × 120 × 30 cm |
