DrainSAFE 500 Installation Kit (1.3mL x 1.3mW)
Complete installation kit for DrainSAFE systems.
Includes skirt, anchors, and sealants for setup.
Durable HDPE with chemical and UV resistance.
Ensures secure, compliant drain pit installation.
$1,628.00 $1,480.00
SHS-CHDS06 DrainSAFEâ„¢ 500 Installation Kit (1.3mL x 1.3mW)
Complete Installation Kit for DrainSAFEâ„¢ Stormwater Systems
Overview

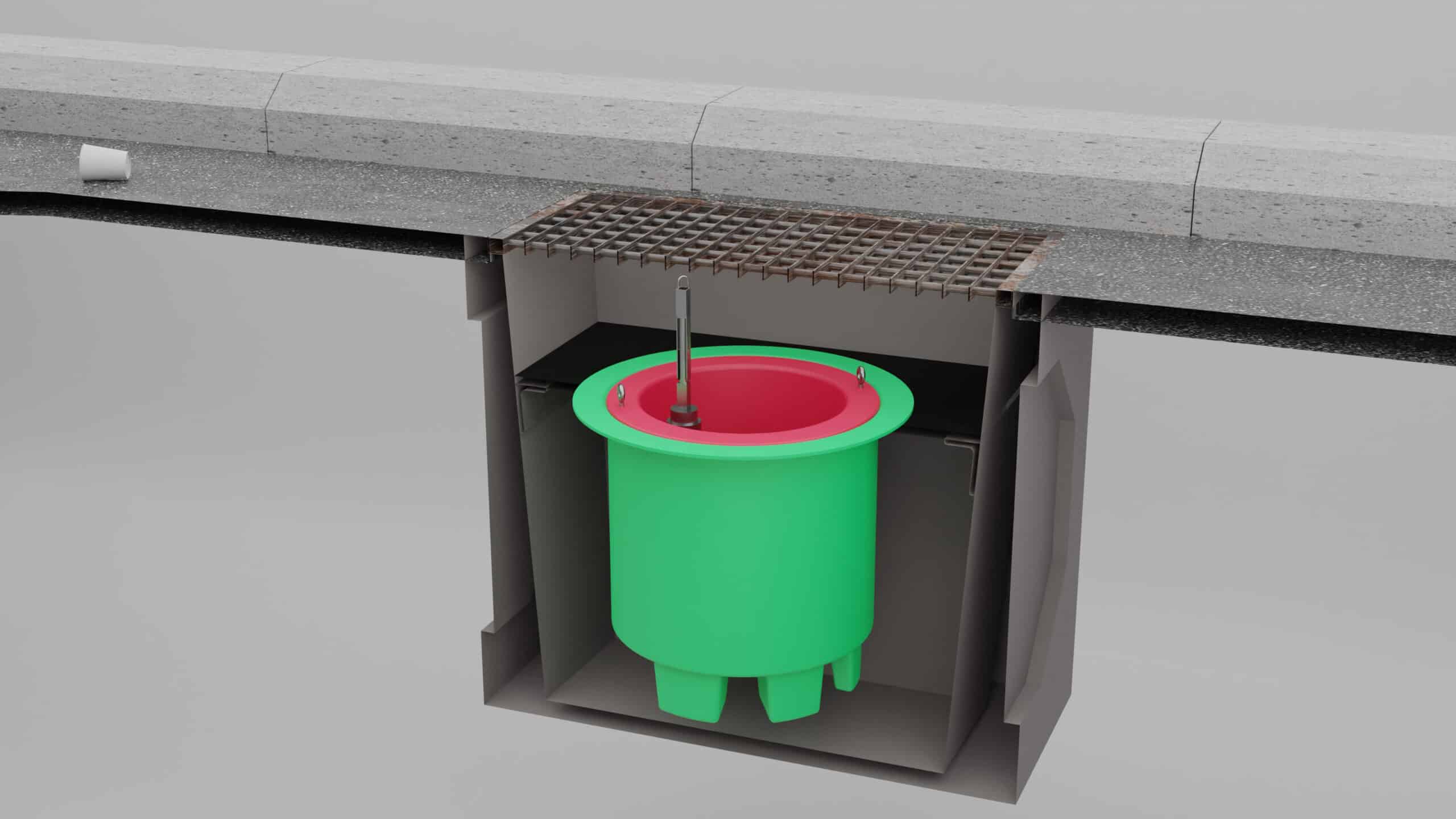

The CHDS06 DrainSAFEâ„¢ 500 Installation Kit is designed to provide all necessary components for secure and compliant installation of DrainSAFEâ„¢ systems within drain pits. It ensures a reliable seal and stable mounting, supporting optimal system performance in demanding environments.
Manufactured from durable, UV-stabilised HDPE with corrosion-resistant hardware, the kit is built to withstand harsh industrial conditions. Supplied in a convenient package with all required components, it simplifies installation and ensures long-term reliability.
Key Features & Benefits
Complete Installation Solution
Includes all components required for proper system setup.
Durable HDPE Pit Skirt
Provides strong, stable base with excellent chemical resistance.
Precision Fit Design
Pre-cut center hole ensures accurate alignment with drain systems.
Corrosion-Resistant Hardware
Anchors and fasteners designed for long-term durability.
Industrial-Grade Sealant
Ensures watertight and chemical-resistant sealing.
UV Resistant Materials
Suitable for exposed environments.
Easy Installation
Supplied with all parts and installation guide.
Reliable Performance
Supports effective DrainSAFEâ„¢ system operation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHDS06 |
| Kit Components |
1 × HDPE pit skirt 6 × HDPE mounting blocks 18 × masonry anchors Self-tapping screws 2 × tubes sealant/adhesive 1 × silicone sealant |
| Pit Skirt Length | 1.3m |
| Pit Skirt Width | 1.3m |
| Thickness | 15mm |
| Center Hole Diameter | 520mm |
| Material | High-Density Polyethylene (HDPE) |
| UV Resistance | Contains UV inhibitors |
| Chemical Resistance | Resistant to acids, alkalis, oils, and fuels |
| Mounting Blocks | HDPE, pre-drilled for anchors |
| Masonry Anchors | Heavy-duty, corrosion-resistant |
| Self-Tapping Screws | For secure fastening |
| Sealant | Industrial-grade, waterproof and chemical-resistant |
| Packaging | Weather-resistant kit box with installation guide |
| Country of Origin | Australia |
| HS Code | 8421.29 |
| Warranty | 1 Year |
Optional Accessories

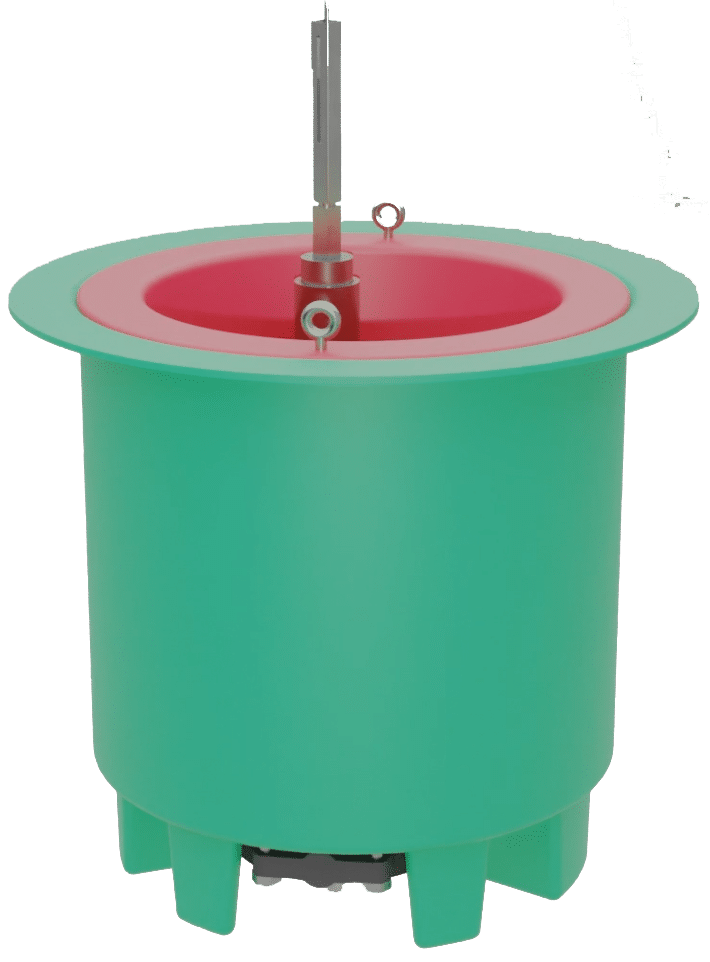

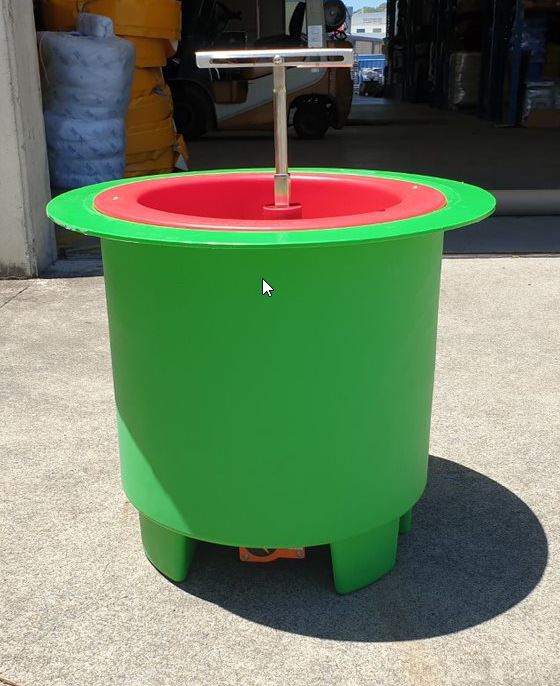

DrainSAFEâ„¢ 500 Unit

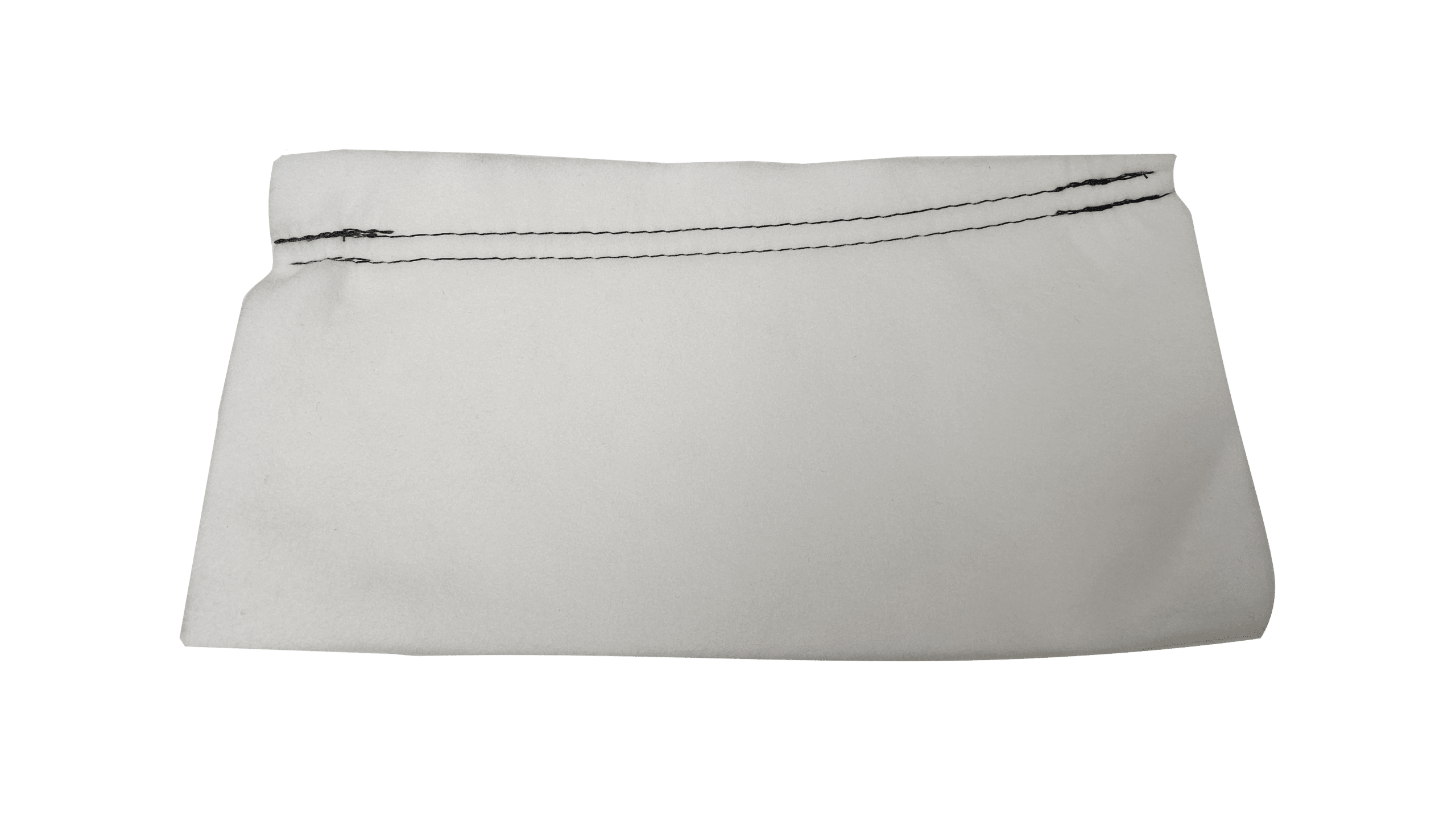

Oil Filters for DrainSAFEâ„¢
Replacement components
Best Fit For
DrainSAFEâ„¢ system installations
Industrial and commercial drainage systems
Environmental compliance setups
Spill control infrastructure
Not Suitable For
Standalone use without DrainSAFE unit
Non-drain pit applications
