DrainSAFE 500 Unit Only (625mmDW x 775mmH) 80L
In-pit filtration and isolation unit only.
Captures debris, oil, and sediment effectively.
Provides fast emergency shut-off capability.
Ideal replacement or upgrade for existing systems.
$5,214.00 $4,740.00
SHS-CHDS05 DrainSAFEâ„¢ 500 Unit Only (625mmL x 775mmH, 80L)
In-Pit Stormwater Protection with Emergency Isolation Control
Overview

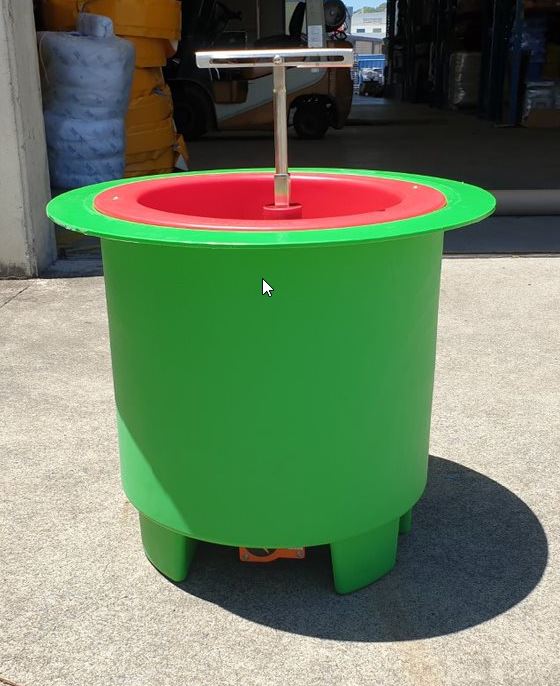

The CHDS05 DrainSAFEâ„¢ 500 Unit is a serviceable in-pit stormwater protection system designed to retrofit into existing drain pits. It provides effective filtration of sediment, debris, oils, and hydrocarbons during normal operation, while allowing rapid isolation of the drain during emergency spill events.
Constructed from 4mm thick UV-stabilised HDPE with a stainless steel telescopic control shaft, the unit delivers excellent durability, corrosion resistance, and long-term performance. This version is supplied without the installation kit, making it ideal for replacement or integration into existing setups.
Key Features & Benefits
Dual-Mode Functionality
Open mode filters contaminants; closed mode isolates the drain instantly.
Effective Pollutant Capture
Captures sediment, oils, debris, and hydrocarbons via internal boom.
Emergency Isolation Control
Quick shut-off prevents contaminants entering stormwater systems.
Durable HDPE Construction
4mm thick polyethylene with UV inhibitors for long service life.
Stainless Steel Control Shaft
Corrosion-resistant telescopic mechanism for reliable operation.
High Flow Capacity
Handles flow rates up to 33L/s.
Chemical Resistant
Resistant to acids, alkalis, oils, and fuels.
Serviceable Design
Allows easy maintenance and cleaning.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHDS05 |
| Length | 625mm |
| Height | 775mm |
| Capacity | 80L |
| Weight | 22kg |
| Flow Rate | 33L/s |
| Material | 4mm High-Density Polyethylene (HDPE) |
| UV Resistance | Contains UV inhibitors |
| Chemical Resistance | Resistant to acids, alkalis, oils, and fuels |
| Tolerance | ± 2mm |
| Control Mechanism | Stainless steel telescopic shaft |
| Operation Modes |
Open: captures debris, oils, sediments Closed: isolates pit and halts flow |
| Corrosion Resistance | Will not rust or corrode |
| Installation Kit | Not included |
| Country of Origin | Australia |
| HS Code | 8421.21 |
| Warranty | 1 Year |
Optional Accessories
Installation Kit Components (pit skirt, mounting blocks, anchors, sealant)
Oil Filters for DrainSAFEâ„¢
Replacement filtration components
Best Fit For
Existing DrainSAFE system upgrades
Replacement units
Industrial and commercial drainage systems
Facilities requiring spill isolation control
Not Suitable For
Standalone installation without proper mounting components
Above-ground use
Download Product Brochure
| Weight | 50 kg |
|---|---|
| Dimensions | 130 × 120 × 100 cm |
