DrainSAFE 500 with Installation Kit (625mmDW x 775mmH) 80L
In-pit system for filtration and emergency isolation.
Captures oils, debris, and sediment effectively.
Provides fast shut-off to prevent contamination.
Durable HDPE design with full installation kit included.
$6,556.00 $5,960.00
SHS-CHDS02 DrainSAFEâ„¢ 500 with Installation Kit (625mmL x 775mmH, 80L)
In-Pit Stormwater Protection with Integrated Isolation Control
Overview

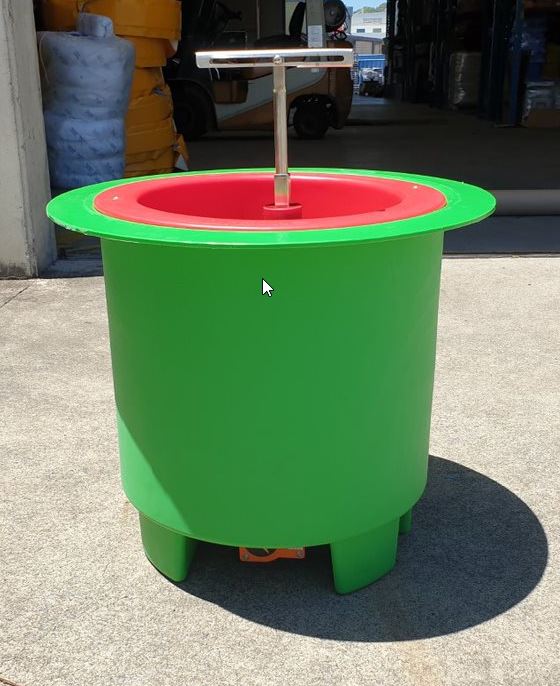

The CHDS02 DrainSAFEâ„¢ 500 is a serviceable in-pit stormwater protection system designed to retrofit into existing drain pits. It provides continuous filtration of sediment, debris, oils, and hydrocarbons during normal operation, while enabling rapid emergency isolation when required.
Constructed from UV-stabilised HDPE with a stainless steel telescopic control shaft, the system offers excellent durability, corrosion resistance, and long-term reliability. The included installation kit ensures secure and compliant setup for a wide range of industrial and commercial environments.
Key Features & Benefits
Dual-Mode Functionality
Open mode filters contaminants; closed mode isolates the drain instantly.
Effective Pollutant Capture
Captures sediment, oils, debris, and hydrocarbons via internal boom.
Emergency Isolation Control
Quick shut-off prevents contamination entering stormwater systems.
Durable HDPE Construction
4mm thick, UV-stabilised polyethylene for long service life.
Stainless Steel Control Shaft
Corrosion-resistant telescopic mechanism for reliable operation.
High Flow Capacity
Handles flow rates up to 33L/s.
Complete Installation Kit
Supplied with pit skirt, mounting blocks, anchors, screws, and sealant.
Corrosion & Chemical Resistant
Suitable for harsh industrial environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CHDS02 |
| Length | 625mm |
| Height | 775mm |
| Capacity | 80L |
| Weight | 22kg |
| Flow Rate | 33L/s |
| Material | 4mm High-Density Polyethylene (HDPE) |
| UV Resistance | Contains UV inhibitors |
| Chemical Resistance | Yes |
| Tolerance | ± 2mm |
| Control Mechanism | Stainless steel telescopic shaft |
| Operation Modes |
Open: captures debris, oils, sediments Closed: isolates pit and halts flow |
| Corrosion Resistance | Will not rust or corrode |
| Installation Kit Includes |
HDPE pit skirt (1.3m x 1.3m x 15mm) HDPE mounting blocks Masonry anchors Self-tapping screws Industrial-grade sealant |
| Country of Origin | Australia |
| HS Code | 8421.21 |
| Warranty | 1 Year |
Optional Accessories
Oil Filters for DrainSAFEâ„¢
Replacement filtration components
Best Fit For
Fueling stations and loading zones
Chemical handling areas
Manufacturing facilities
Warehouses and logistics hubs
Not Suitable For
Above-ground use
Non-drain pit applications
Download Product Brochure
| Weight | 50 kg |
|---|---|
| Dimensions | 130 × 120 × 100 cm |
