Full Electric Straddle Leg Stacker
Full Electric Straddle Leg Stacker
Electric Stacker Rear
Electric Stacker Tandem Wheels

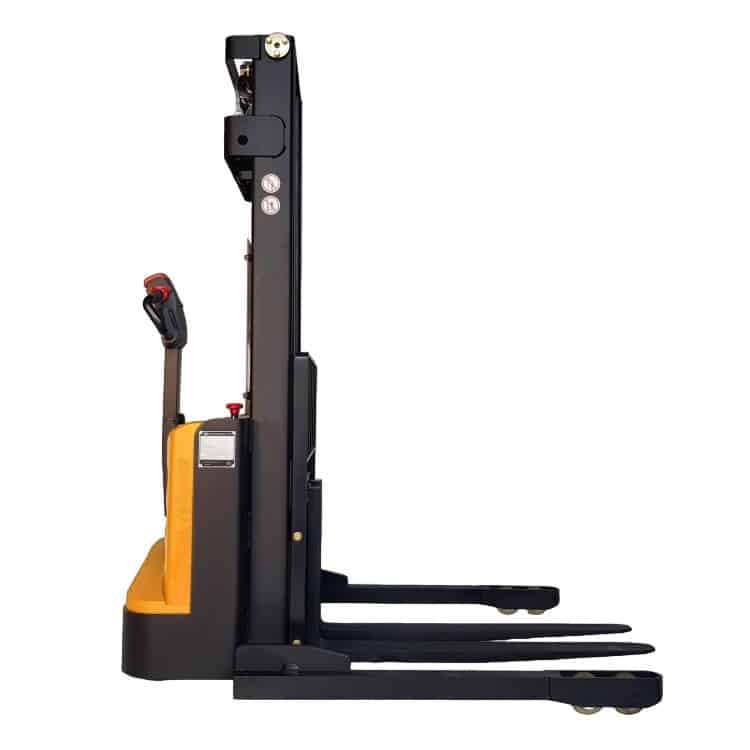

Electric Stacker Side
Electric Straddle Leg Stacker
Electric Stacker Battery Indicator
Electric Stacker Emergency Stop Button
Stacker Control Head
SKU SHS-MES12-25DM N/A

Full Electric Lifter / Straddle Stacker- 1200kg Capacity- 3.3m Lift

This full-electric lifter with straddle legs has a lifting capacity of 1200kg, gel batteries and an integrated charger. This truck offers you the flexibility you expect from your warehouse truck.

online

$8,000.00 $7,272.73

Add to Quote
secure
Product Enquiry?
Apply for a Trade Account & Get a Better Price

Features:

  • Built in charger.
  • Easy access for maintenance.
  • Emergency stop – easy touch.
  • Electromagnetic service brakes.
  • Quick response and accurate control.
  • Programmable with Curtis Controller.
  • Multi lifting limited switch ensures travel safety.
  • Belly button prevents truck from hitting operator.
  • Side operating handle ensures excellent visibility for the operator.
  • Battery display indicator with hour meter to remind operator of charging time.
  • Anti-rolling back braking device prevents the truck from roll back on ramps.
  • Safety hydraulic design prevents mast from falling abruptly when oil pipes cut off.



Specifications:

Model MES12-25DM
Load Capacity 1200kg
Height Mast Lowered 2233mm
Load Center Distance 600mm
Lift Height 3300mm
Height Mast extended 4195mm
Overall Length 1650mm
Aisle width for pallets 1000×1200 crossways 2255mm
Aisle width for pallets 800×1200 lengthways 2180mm
Turning Radius 1404mm
Service Brake Type Electromagnetic
Drive motor rating S2 60min 0.65kw
Lift motor rating at S3 15% 2.2kw
Battery Voltage/ nominal capacity 2x12V/105Ah
Maximum Battery Size 325x180x230mm
Service Weight (include Battery) 676kg
Travel Speed, Laden/ Unladen 4/ 4.5km/h
Overall Leg Widths 1135/1235/1335/1435mm
Type of Drive Unit AC
Weight 676 kg
Dimensions 170 × 117 × 230 cm
