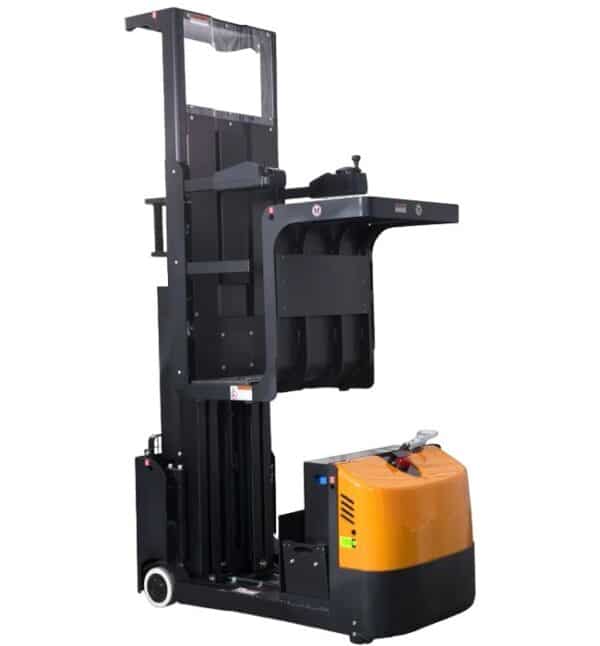

FULL ELECTRIC WORK ASSIST PLATFORM STACKER- 500KG CAPACITY
The MJX1-4.8 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the order picker will give your employees the safety they need to work efficiently and can elevate an operator up to as much as 4.8 meters. Features a maintenance-free AC drive system with quick response, accurate control, and excellent power efficiency.
Price range: $19,000.00 through $25,057.95
Features
- Built in charger.
- Easy access for maintenance.
- Emergency stop – easy touch.
- Electromagnetic service brakes.
- Quick response and accurate control.
- Programmable with Curtis Controller.
- Multi lifting limited switch ensures travel safety.
- Belly button prevents truck from hitting operator.

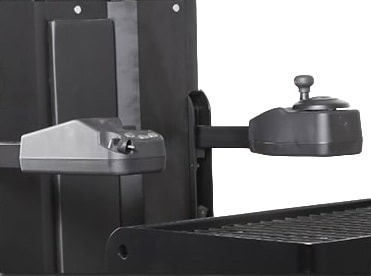

- Side operating handle ensures excellent visibility for the operator.
- Battery display indicator with hour meter to remind operator of charging time.
- Anti-rolling back braking device prevents the truck from roll back on ramps.
- Safety hydraulic design prevents mast from falling abruptly when oil pipes cut off.
Specifications:
| Model | MJX1-4.8 |
| Rated Capacity on Front Platform | 227kg |
| Rated Capacity on behind Platform | 137kg |
| Rated Capacity on standing Platform | 136kg |
| Wheel Base | 1256mm |
| Service Weight | 1530kg |
| Height mast lowered | 2120mm |
| Stand Height Lowered | 250mm |
| Stand Height Elevated | 4880mm |
| Overall Length | 1610mm |
| Overall Width | 860mm |
| Front Cargo Platform Size | 800x520mm |
| Control Handle Height | 1010mm |
| Behind Platform Size | 346x660mm |
| Overall Length including Platform | 1840mm |
| Turning Radius | 1450mm |
| Sound Pressure at Drivers Ear | 74dB |
| Power | 24V |
| Service Brake Type | Electromagnetic |
| Battery Weight | 250kg |
| Max Battery Size | 280x00x670mm |
| Battery Capacity | 24V/22Ah |
| Max Gradeability | 0% |
| Travel Speed, Laden/ Unladen | 3.7/5.5km/h |
| Lifting Speed, Laden/ Unladen | 0.17/0.21m/s |
| Lowering Speed, Laden/Unladen | 0.35/0.26m/s |
* Please note the capacity for MJX1-4.8 with a lifting height over 3600mm, the maximum loading capacity for the front platform de-rates to 72kg.
| Lifts | FULL ELECTRIC PLATFORM STACKER- 500KG CAPACITY / 3.2M LIFT ($19000), FULL ELECTRIC PLATFORM STACKER- 500KG CAPACITY / 3.6M LIFT ($19800.00), FULL ELECTRIC PLATFORM STACKER- 500KG CAPACITY / 4.2M LIFT ($20350.00), FULL ELECTRIC PLATFORM STACKER- 500KG CAPACITY / 4.8M LIFT ($22000.00) |
|---|
