Ultra – Dewatering Bag Oil & Sediment (1.2mL x 0.9mW) 250mm neck on the corner

SHS-CHU9729 Ultra-Dewatering Bag – Oil and Sediment (1.2m x 0.9m) 250mm Neck

Dual-Purpose Filtration for Oil & Sediment Control in Dewatering Applications

Overview

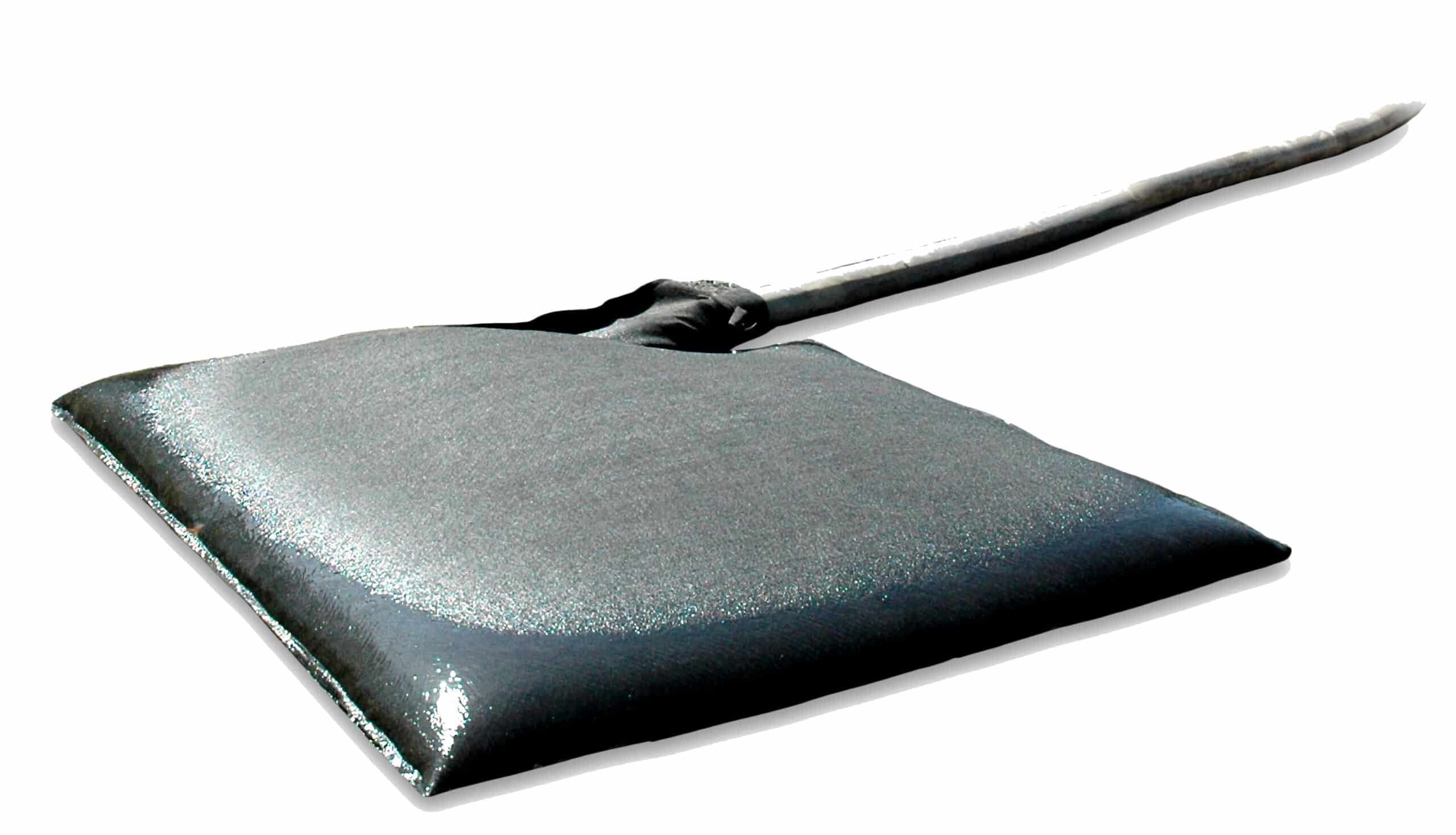

The CHU9729 Ultra-Dewatering Bag is a specialized filtration solution engineered to capture both oil-based contaminants and suspended sediments during dewatering operations. Measuring 1.2 metres in length and 0.9 metres in width, this dual-purpose bag provides effective control of hydrocarbons and solids on construction, industrial, and environmental sites where both pollutants are present.

Constructed from 270gsm non-woven geotextile fabric with advanced oil-absorbing properties, the bag allows water to pass through while retaining oils, hydrocarbons, silt, and suspended solids with 99.0% filter efficiency. The integrated 250mm diameter neck, positioned on the short side/top of the bag, ensures easy connection to large-diameter discharge hoses for efficient and secure operation.

Key Features & Benefits

Dual-Purpose Filtration
Specifically designed to capture both oil-based contaminants and suspended sediments in a single solution.

High-Efficiency Contaminant Removal
Retains oils, hydrocarbons, silt, and solids with 99.0% filter efficiency during pumping operations.

Oil Absorption Technology
Specialized geotextile formulation absorbs and retains oil while allowing water to pass through.

Durable Geotextile Construction
270gsm non-woven geotextile with 238kg puncture resistance and 29kg/cm² Mullen burst strength.

High Flow Rate Design
60L/m²/sec flow rate ensures efficient dewatering while maintaining filtration performance.

UV Resistant
Retains 70% strength after 500 hours UV exposure for outdoor durability.

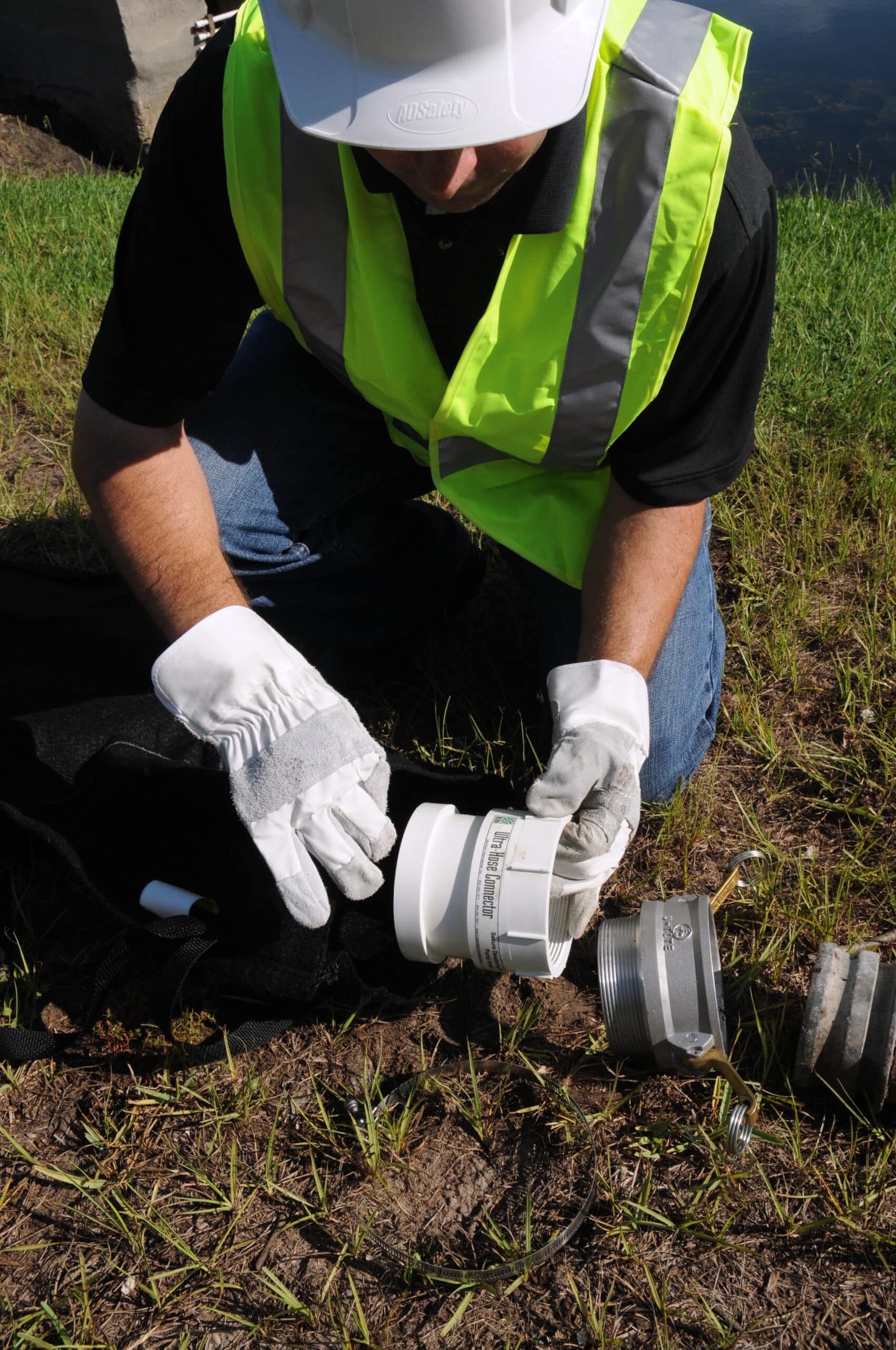

Large 250mm Hose Connection
Wide-diameter neck enables quick and secure attachment to high-volume discharge hoses.

Environmental Compliance
180 micron pore size and oil retention capabilities help meet strict environmental regulations.

Technical Specifications

Performance Features

Dual-action filtration removes both hydrocarbons and suspended solids
99.0% efficiency for oil and sediment capture
Oil-absorbing geotextile technology
High flow rate of 60L/m²/sec maintains pumping performance
UV resistant fabric for outdoor durability
Puncture and burst resistant construction
250mm wide-neck design for high-volume connections

Applications

Construction sites with hydrocarbon risks
Industrial dewatering operations
Mining sites with fuel and oil contaminants
Workshops and maintenance areas
Vehicle wash-down facilities
Fuel storage and refuelling areas
Environmental remediation projects
Sites requiring both sediment and oil control

Best Fit For

Projects with mixed oil and sediment contamination
Sites needing compliance with strict environmental regulations
Industrial facilities with hydrocarbon discharge risks
Contractors managing contaminated water
Areas requiring 99% filtration efficiency for multiple pollutant types

Not Suitable For

High-pressure pumping without flow control
Chemical or hazardous liquid filtration
Permanent filtration systems
Applications requiring sub-micron filtration
Sites with no oil contamination (use standard dewatering bag)
