Ultra – Dewatering Bag Oil & Sediment (4.5mL x 4.5mW) 250mm neck on corner

SHS-CHU9727 Ultra-Dewatering Bag – Oil and Sediment (4.5m x 4.5m) 250mm Neck

Maximum-Capacity Dual-Purpose Filtration for Oil & Sediment Control in Large-Scale Dewatering Operations

Overview

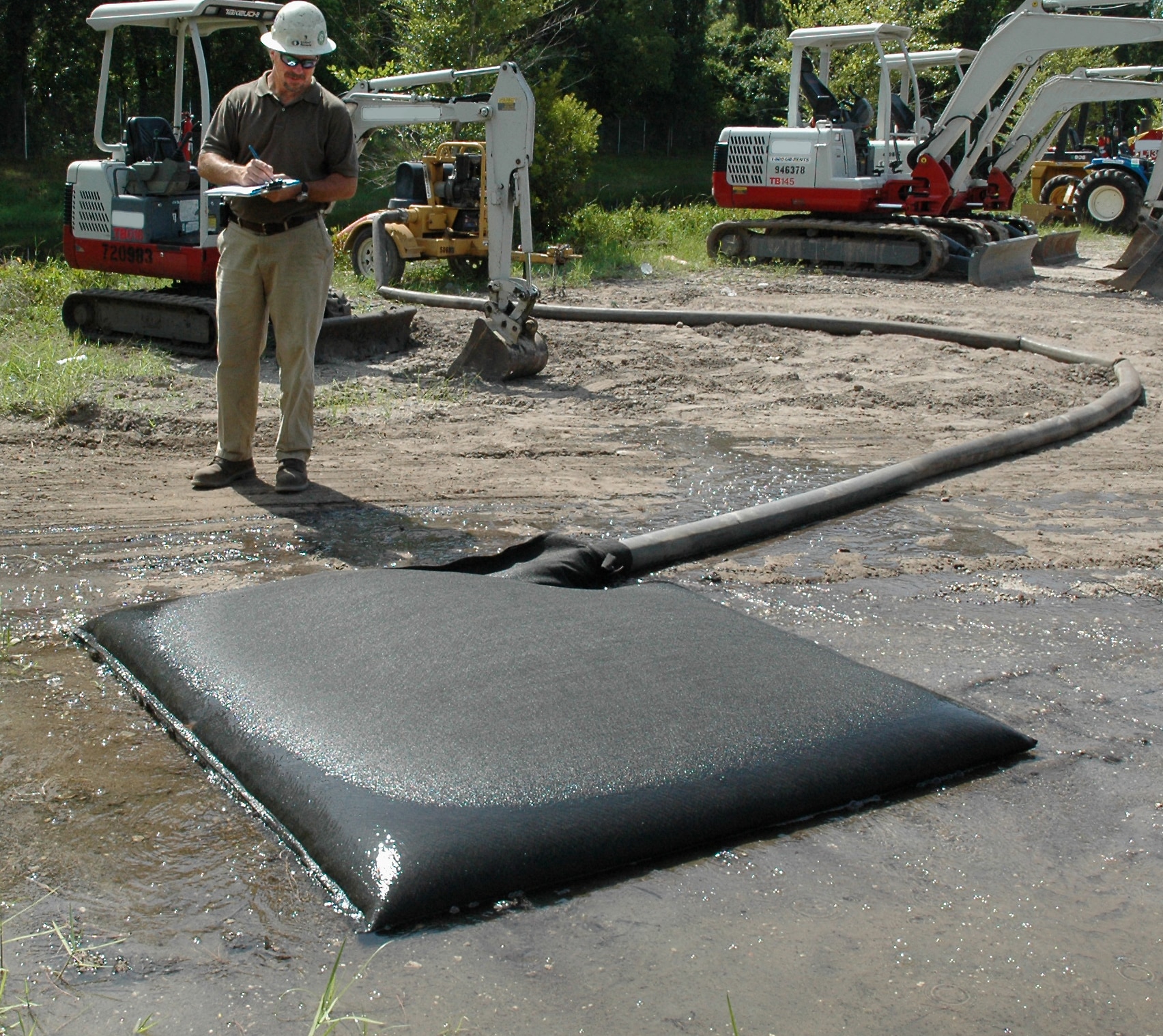

The CHU9727 Ultra-Dewatering Bag is a maximum-capacity, specialized filtration solution engineered to capture both oil-based contaminants and suspended sediments during large-scale dewatering operations. Measuring 4.5 metres in length and 4.5 metres in width, this dual-purpose bag provides massive 6.3m³ sediment capacity for effective control of hydrocarbons and solids on major construction, industrial, mining, and environmental sites where both pollutants are present in very high volumes.

Constructed from 270gsm non-woven geotextile fabric with advanced oil-absorbing properties, the bag allows water to pass through while retaining oils, hydrocarbons, silt, and suspended solids with 99.0% filter efficiency. The integrated 250mm diameter neck, positioned on the short side/top of the bag, ensures easy connection to large-diameter discharge hoses for efficient and secure operation in high-volume applications.

Key Features & Benefits

Dual-Purpose Filtration
Specifically designed to capture both oil-based contaminants and suspended sediments in a single solution.

Maximum 6.3m³ Sediment Capacity
Extra-large retention capacity for extended large-scale dewatering operations without frequent replacement.

High-Efficiency Contaminant Removal
Retains oils, hydrocarbons, silt, and solids with 99.0% filter efficiency during pumping operations.

Oil Absorption Technology
Specialized geotextile formulation absorbs and retains oil while allowing water to pass through.

Durable Geotextile Construction
270gsm non-woven geotextile with 238kg puncture resistance and 29kg/cm² Mullen burst strength.

High Flow Rate Design
60L/m²/sec flow rate ensures efficient dewatering while maintaining filtration performance.

UV Resistant
Retains 70% strength after 500 hours UV exposure for outdoor durability.

Large 250mm Hose Connection
Wide-diameter neck enables quick and secure attachment to high-volume discharge hoses.

Environmental Compliance
180 micron pore size and oil retention capabilities help meet strict environmental regulations.

Technical Specifications

Performance Features

Dual-action filtration removes both hydrocarbons and suspended solids
Massive 6.3m³ sediment capacity for extended large-scale dewatering operations
99.0% efficiency for oil and sediment capture
Oil-absorbing geotextile technology
High flow rate of 60L/m²/sec maintains pumping performance
UV resistant fabric for outdoor durability
Puncture and burst resistant construction
250mm wide-neck design for high-volume connections

Applications

Large-scale construction sites with hydrocarbon risks
Major industrial dewatering operations
Mining sites with fuel and oil contaminants
Large workshops and maintenance areas
Vehicle wash-down facilities
Fuel storage and refuelling areas
Environmental remediation projects
Sites requiring both sediment and oil control

Best Fit For

Large-scale dewatering projects with very high-volume mixed contamination
Major sites needing compliance with strict environmental regulations
Large industrial facilities with significant hydrocarbon discharge risks
Contractors managing contaminated water in maximum volumes
Areas requiring 99% filtration efficiency for multiple pollutant types

Not Suitable For

High-pressure pumping without flow control
Chemical or hazardous liquid filtration
Permanent filtration systems
Applications requiring sub-micron filtration
Sites with no oil contamination (use standard dewatering bag)

Download Product Brochure
