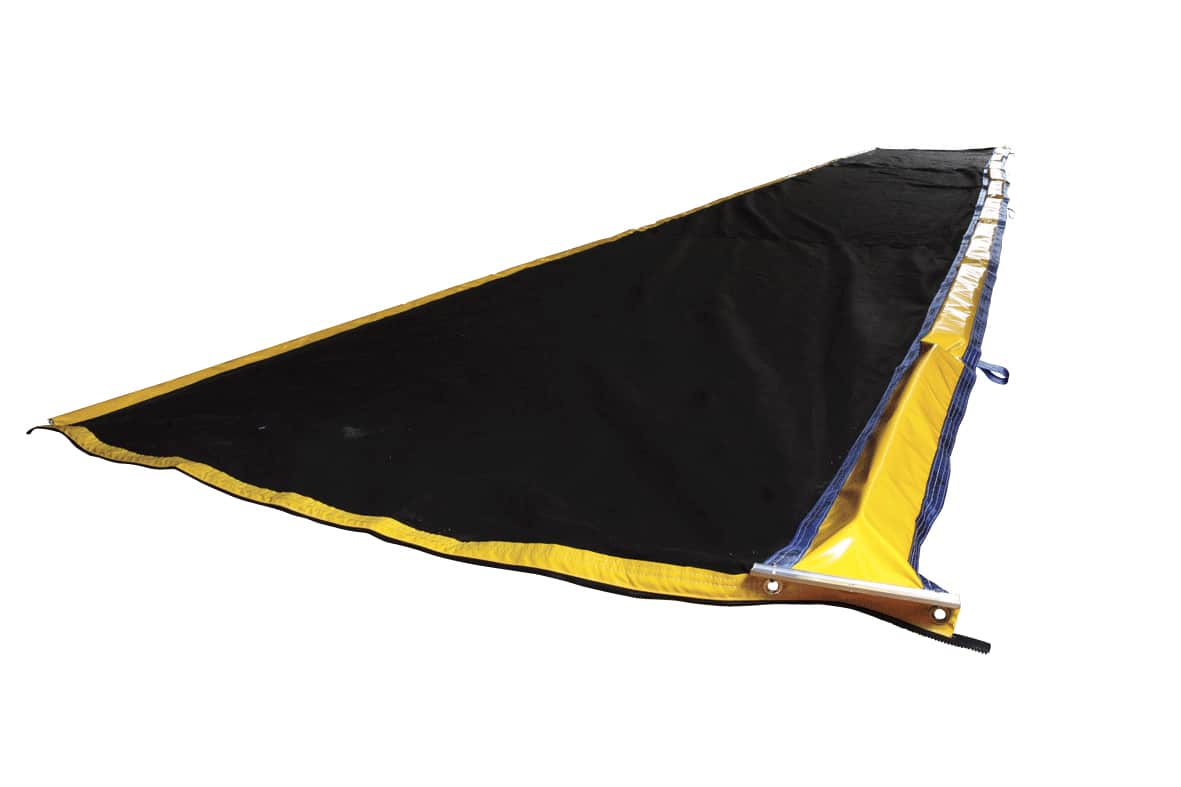

Class 1 Silt Curtain Connected 20mL, 1m 260gsm NW-Geo Skirt, 100mm X 50mm Float, 400gsm PVC, 6mm Chain

SHS-CHSC111 – 100mm x 50mm Float, 400gsm PVC, 6mm Chain (Connected)

Pre-Connected Floating Containment System for Lagoons, Ponds & Streams

Overview

The CHSC111 Floating Containment System is a pre-connected 20-metre length solution designed for low-risk water bodies such as lagoons, ponds, and streams where there is little to no tidal, wave, or wind forces. Unlike unconnected versions, this system comes with sections already joined, saving installation time and ensuring consistent connection integrity from the outset.

The system combines a 100mm x 50mm closed-cell foam float with a 1-metre deep 260gsm non-woven geotextile skirt, providing effective containment and sedimentation control in calm water environments. Constructed with 400gsm yellow PVC (matte top side, gloss back side) for the float chamber and marine-grade components throughout, this system offers reliable performance for applications requiring floating barriers, sediment curtains, or debris containment. The 6mm marine-grade galvanised chain ballast ensures stable deployment, with ASTM F962 Z-connectors available at the ends for further extension if required.

Key Features & Benefits

Pre-Connected Sections
Supplied with sections already joined, saving on-site installation time and ensuring consistent connection integrity.

Low-Risk Water Body Design
Specifically engineered for lagoons, ponds, and streams with minimal tidal, wave, or wind forces.

Effective Flotation
100mm x 50mm closed-cell crumble-free foam flotation chambers provide reliable buoyancy without degradation over time.

Sediment Containment Skirt
1-metre deep 260gsm non-woven geotextile skirt captures suspended solids with 130 l/m²/s flow rate and 9590 micron pore size.

Durable PVC Construction
400gsm yellow PVC with matte top side and gloss back side offers good chemical resistance and up to 2 years UV protection.

Marine-Grade Ballast Chain
6mm galvanised chain enclosed in PVC pocket ensures stable vertical orientation in calm water conditions.

Standardised Connectors
Universal ASTM F962 Z-connectors at ends enable further interconnection for extended coverage.

Secure Anchoring Points
Stainless steel eye nut anchoring points at 5m, 10m, and 15m positions for reliable deployment.

Australian Made
Manufactured in Australia to high-quality standards with marine-grade components.

Technical Specifications

Performance Features

Pre-connected sections for rapid on-site deployment
Reliable flotation in calm water environments
1-metre deep geotextile skirt for sediment containment
Marine-grade components for durability
Standardised connectors at ends for further extension
Stainless steel anchoring points for secure deployment
UV-stabilised PVC for up to 2 years outdoor life
Good chemical resistance for various water conditions
Australian made quality construction

Applications

Lagoons requiring sediment containment
Ponds needing floating debris control
Slow-moving streams with erosion concerns
Stormwater retention ponds
Agricultural dam sediment control
Low-energy water bodies
Temporary containment in calm conditions
Projects requiring pre-assembled barriers for quick installation

Best Fit For

Lagoons, ponds, and streams with minimal wave action
Sites requiring sediment curtain deployment with minimal setup time
Low-risk water bodies with little to no tidal forces
Calm water containment applications needing pre-connected sections
Projects where on-site assembly time must be minimised

Not Suitable For

High tidal areas with strong currents
Marine environments with significant wave action
High wind-exposed water bodies
Sites requiring oil spill containment (use oil-specific boom)
High-energy water environments
Applications requiring permanent structural barriers

Optional Accessories

Tow Bridle – available separately for towing and positioning
