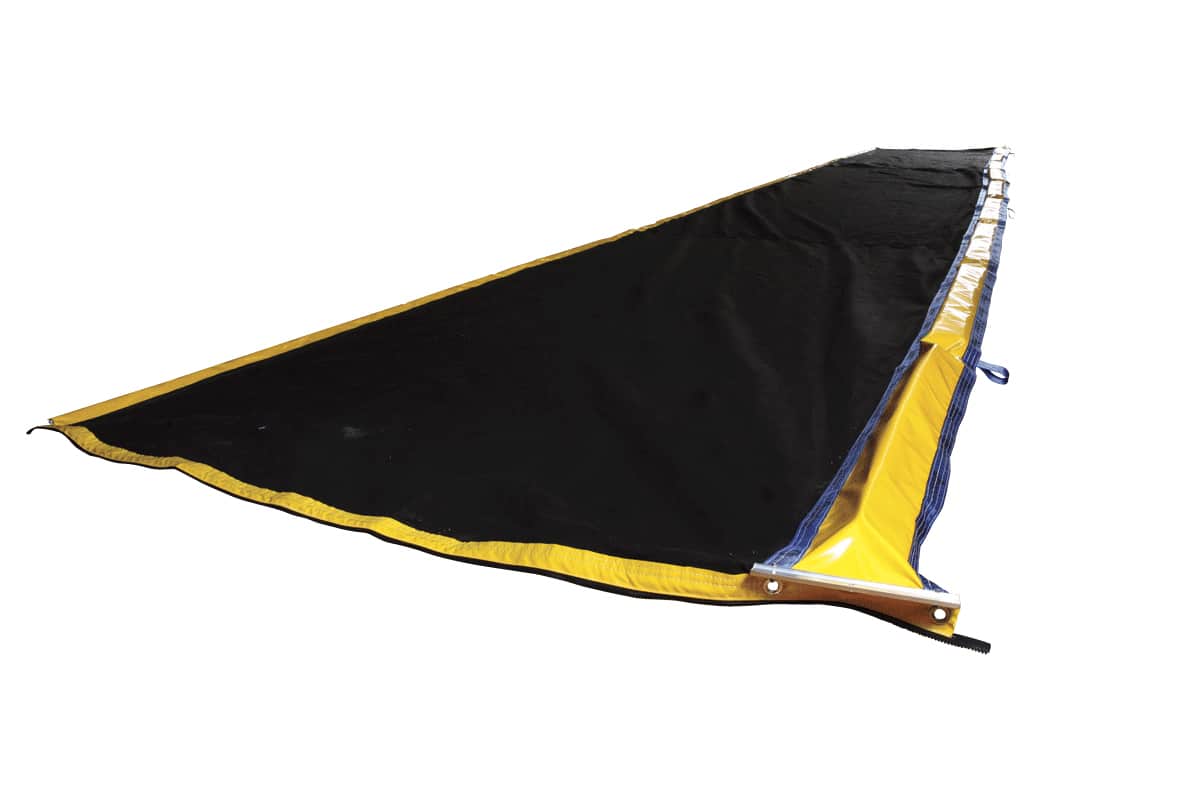

Class 2 Silt Curtain Unconnected 20mL, 1m 260gsm NW-Geo Skirt, 100mm X 100mm Float, 400gsm PVC, 6mm Chain

SHS-CHSC05 – 100mm x 100mm Float, 400gsm PVC, 6mm Chain (Medium Risk)

Medium-Risk Floating Containment for Rivers, Calm Harbours & Moderate Water Forces

Overview

The CHSC05 Floating Containment System is engineered for medium-risk water bodies such as rivers and calm harbours where moderate wind and/or water forces are present. This 20-metre length system features a larger 100mm x 100mm closed-cell foam float for enhanced buoyancy and stability in more demanding conditions compared to low-risk alternatives.

The system combines the larger float with a 1-metre deep 260gsm non-woven geotextile skirt, providing effective containment and sedimentation control in environments with moderate wave action and water movement. Constructed with 400gsm yellow PVC (matte top side, gloss back side) for the float chamber and marine-grade components throughout, this system offers reliable performance for applications requiring floating barriers, sediment curtains, or debris containment in medium-energy water bodies. The 6mm marine-grade galvanised chain ballast ensures stable deployment, while standard ASTM F962 Z-connectors allow for easy interconnection to extend barrier length as needed. An added 50mm high-tensile webbing with 2-tonne breaking strain below the float chamber provides extra reinforcement.

Key Features & Benefits

Medium-Risk Water Body Design
Specifically engineered for rivers, calm harbours, and locations with moderate wind and/or water forces.

Enhanced Flotation
Larger 100mm x 100mm closed-cell crumble-free foam flotation chambers provide superior buoyancy and stability in moderate conditions.

Reinforced Construction
50mm high-tensile webbing with 2-tonne breaking strain below float chamber adds extra strength and durability.

Extended UV Protection
400gsm PVC offers up to 5 years UV resistance – more than double the low-risk equivalent.

Higher Strength PVC
Enhanced tensile strength (Warp 2400N/5cm, Weft 2400N/5cm) and tear strength (Warp 450N/5cm, Weft 400N/5cm) for medium-risk environments.

Sediment Containment Skirt
1-metre deep 260gsm non-woven geotextile skirt captures suspended solids with 130 l/m²/s flow rate and 9590 micron pore size.

Marine-Grade Ballast Chain
6mm galvanised chain enclosed in PVC pocket ensures stable vertical orientation in moderate water conditions.

Standardised Connectors
Universal ASTM F962 Z-connectors enable simple interconnection of multiple sections for extended coverage.

Secure Anchoring Points
Stainless steel eye nut anchoring points at 5m, 10m, and 15m positions for reliable deployment.

Australian Made
Manufactured in Australia to high-quality standards with marine-grade components.

Technical Specifications

Performance Features

Enhanced flotation with 100mm x 100mm foam for medium-risk environments
5-year UV resistance for extended outdoor service life
Reinforced with 50mm high-tensile webbing (2T breaking strain)
Higher strength PVC for moderate water and wind forces
1-metre deep geotextile skirt for sediment containment
Marine-grade components for durability
Standardised connectors for easy extension
Stainless steel anchoring points for secure deployment
Good chemical resistance for various water conditions
Australian made quality construction

Applications

Rivers with moderate current
Calm harbours and marinas
Medium-energy water bodies
Stormwater channels with moderate flow
Construction sites near waterways
Environmental protection in moderate conditions
Sediment control in exposed locations
Debris containment in rivers

Best Fit For

Rivers requiring sediment control
Calm harbour protection
Sites with moderate wind exposure
Locations needing enhanced flotation stability
Applications requiring 5-year UV protection
Medium-risk water bodies with moderate forces

Not Suitable For

High tidal areas with strong currents
Open ocean or high-energy marine environments
Heavy wave action locations
Sites requiring oil spill containment (use oil-specific boom)
High-energy water environments
Low-risk calm ponds (use CHSC01/CHSC02 instead)
