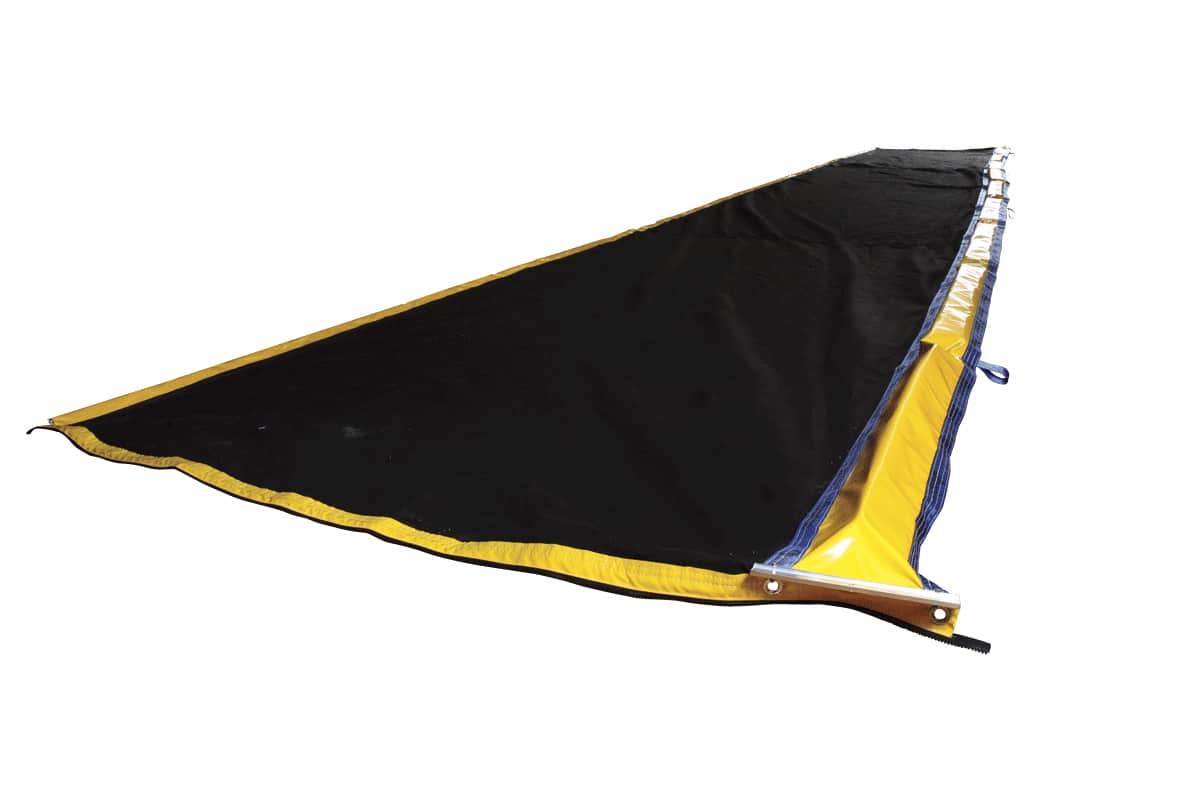

Class 2 Silt Curtain Connected 20mL, 1m 260gsm NW-Geo Skirt, 100mm X 100mm Float, 400gsm PVC, 6mm Chain

SHS-CHSC113 – 100mm x 100mm Float, 400gsm PVC, 6mm Chain (Medium Risk, Connected with 1m Skirt)

Pre-Connected Medium-Risk Floating Containment for Rivers, Calm Harbours & Moderate Water Forces

Overview

The CHSC113 Floating Containment System is a pre-connected 20-metre length solution engineered for medium-risk water bodies such as rivers and calm harbours where moderate wind and/or water forces are present. With sections already joined, this system saves installation time and ensures consistent connection integrity while providing enhanced buoyancy and stability through its larger 100mm x 100mm closed-cell foam float.

The system combines the larger float with a 1-metre deep 260gsm non-woven geotextile skirt, providing effective containment and sedimentation control in environments with moderate wave action and water movement. Constructed with 400gsm yellow PVC (matte top side, gloss back side) for the float chamber and marine-grade components throughout, this system offers reliable performance for applications requiring floating barriers, sediment curtains, or debris containment in medium-energy water bodies. The 6mm marine-grade galvanised chain ballast ensures stable deployment, with ASTM F962 Z-connectors available at the ends for further extension if required. An added 50mm high-tensile webbing with 2-tonne breaking strain below the float chamber provides extra reinforcement.

Key Features & Benefits

Pre-Connected Sections
Supplied with sections already joined, saving on-site installation time and ensuring consistent connection integrity.

Medium-Risk Water Body Design
Specifically engineered for rivers, calm harbours, and locations with moderate wind and/or water forces.

Enhanced Flotation
Larger 100mm x 100mm closed-cell crumble-free foam flotation chambers provide superior buoyancy and stability in moderate conditions.

Reinforced Construction
50mm high-tensile webbing with 2-tonne breaking strain below float chamber adds extra strength and durability.

Extended UV Protection
400gsm PVC offers up to 5 years UV resistance – more than double the low-risk equivalent.

Higher Strength PVC
Enhanced tensile strength (Warp 2400N/5cm, Weft 2400N/5cm) and tear strength (Warp 450N/5cm, Weft 400N/5cm) for medium-risk environments.

Sediment Containment Skirt
1-metre deep 260gsm non-woven geotextile skirt captures suspended solids with 130 l/m²/s flow rate and 590 micron pore size.

Marine-Grade Ballast Chain
6mm galvanised chain enclosed in PVC pocket ensures stable vertical orientation in moderate water conditions.

Standardised Connectors
Universal ASTM F962 Z-connectors at ends enable further interconnection for extended coverage.

Secure Anchoring Points
Stainless steel eye nut anchoring points at 5m, 10m, and 15m positions for reliable deployment.

Australian Made
Manufactured in Australia to high-quality standards with marine-grade components.

Technical Specifications

Performance Features

Pre-connected sections for rapid on-site deployment
Enhanced flotation with 100mm x 100mm foam for medium-risk environments
5-year UV resistance for extended outdoor service life
Reinforced with 50mm high-tensile webbing (2T breaking strain)
Higher strength PVC for moderate water and wind forces
1-metre deep geotextile skirt for sediment containment
590 micron pore size for effective solids capture
Marine-grade components for durability
Standardised connectors at ends for further extension
Stainless steel anchoring points for secure deployment
Australian made quality construction

Applications

Rivers with moderate current
Calm harbours and marinas
Medium-energy water bodies
Stormwater channels with moderate flow
Construction sites near waterways
Environmental protection in moderate conditions
Sediment control in exposed locations
Debris containment in rivers
Projects requiring pre-assembled barriers for quick installation

Best Fit For

Rivers requiring sediment control with rapid deployment
Calm harbour protection with minimal setup time
Sites with moderate wind exposure needing quick installation
Locations requiring enhanced flotation stability
Applications requiring 5-year UV protection
Medium-risk water bodies with moderate forces
Projects where on-site assembly time must be minimised

Not Suitable For

High tidal areas with strong currents
Open ocean or high-energy marine environments
Heavy wave action locations
Sites requiring oil spill containment (use oil-specific boom)
High-energy water environments
Low-risk calm ponds (use CHSC111 instead)

Optional Accessories

Tow Bridle – available separately for towing and positioning
Class 2 Connector – available separately for specialised connection requirements
