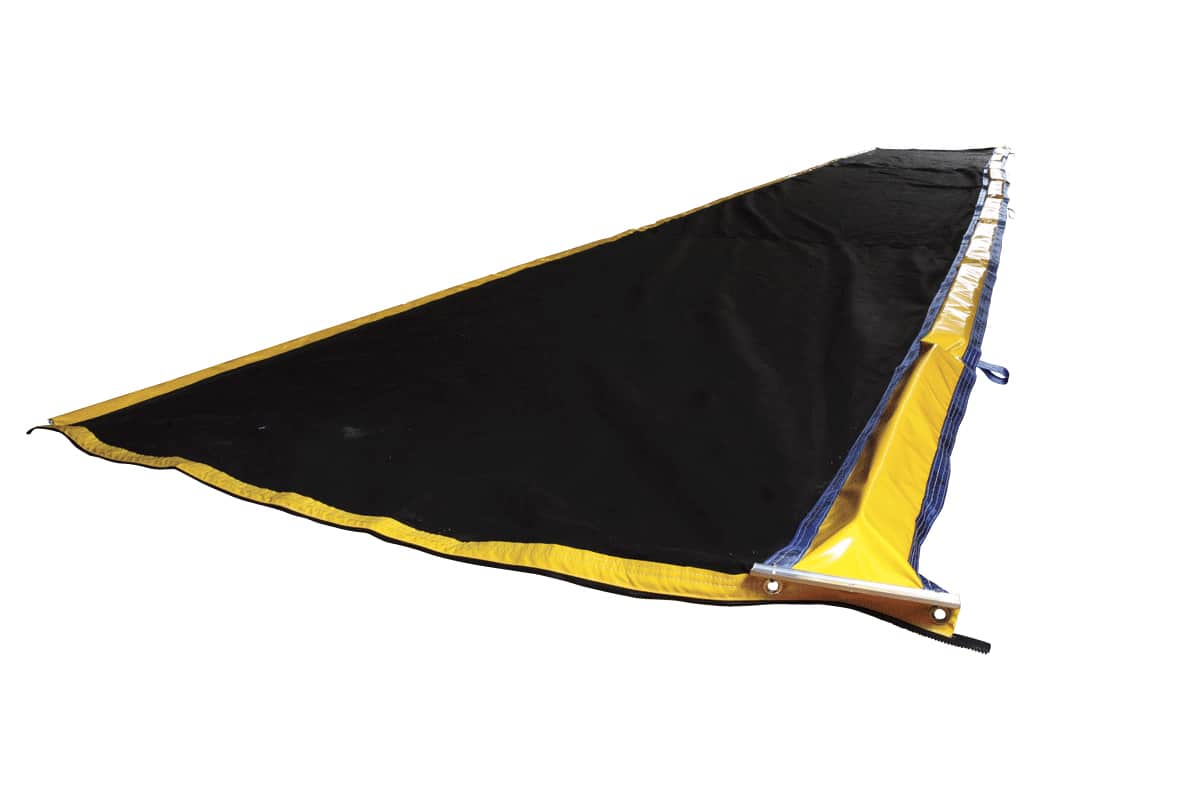

Class 1 Silt Curtain Unconnected 20mL, 1m 260gsm NW-Geo Skirt, 100mm X 50mm Float, 400gsm PVC, 6mm Chain

SHS-CHSC01 – 100mm x 50mm Float, 400gsm PVC, 6mm Chain

Low-Risk Floating Containment for Lagoons, Ponds & Streams

Overview

The CHSC01 Floating Containment System is designed for low-risk water bodies such as lagoons, ponds, and streams where there is little to no tidal, wave, or wind forces. This 20-metre length system combines a 100mm x 50mm closed-cell foam float with a 1-metre deep 260gsm non-woven geotextile skirt, providing effective containment and sedimentation control in calm water environments.

Constructed with 400gsm yellow PVC (matte top side, gloss back side) for the float chamber and marine-grade components throughout, this system offers reliable performance for applications requiring floating barriers, sediment curtains, or debris containment. The 6mm marine-grade galvanised chain ballast ensures stable deployment, while standard ASTM F962 Z-connectors allow for easy interconnection to extend barrier length as needed.

Key Features & Benefits

Low-Risk Water Body Design
Specifically engineered for lagoons, ponds, and streams with minimal tidal, wave, or wind forces.

Effective Flotation
100mm x 50mm closed-cell crumble-free foam flotation chambers provide reliable buoyancy without degradation over time.

Sediment Containment Skirt
1-metre deep 260gsm non-woven geotextile skirt captures suspended solids with 130 l/m²/s flow rate and 9590 micron pore size.

Durable PVC Construction
400gsm yellow PVC with matte top side and gloss back side offers good chemical resistance and up to 2 years UV protection.

Marine-Grade Ballast Chain
6mm galvanised chain enclosed in PVC pocket ensures stable vertical orientation in calm water conditions.

Standardised Connectors
Universal ASTM F962 Z-connectors enable simple interconnection of multiple sections for extended coverage.

Secure Anchoring Points
Stainless steel eye nut anchoring points at 5m, 10m, and 15m positions for reliable deployment.

Australian Made
Manufactured in Australia to high-quality standards with marine-grade components.

Technical Specifications

Performance Features

Reliable flotation in calm water environments
1-metre deep geotextile skirt for sediment containment
Marine-grade components for durability
Standardised connectors for easy extension
Stainless steel anchoring points for secure deployment
UV-stabilised PVC for up to 2 years outdoor life
Good chemical resistance for various water conditions
Australian made quality construction

Applications

Lagoons requiring sediment containment
Ponds needing floating debris control
Slow-moving streams with erosion concerns
Stormwater retention ponds
Agricultural dam sediment control
Low-energy water bodies
Temporary containment in calm conditions

Best Fit For

Lagoons, ponds, and streams with minimal wave action
Sites requiring sediment curtain deployment
Low-risk water bodies with little to no tidal forces
Calm water containment applications
Projects needing 20m floating barrier sections

Not Suitable For

High tidal areas with strong currents
Marine environments with significant wave action
High wind-exposed water bodies
Sites requiring oil spill containment (use oil-specific boom)
High-energy water environments
Applications requiring permanent structural barriers
