Battery Electric Platform Stacker- Precision Lifting / Screw Drive- Aluminium Mast- 150kg Capacity / 1.62m Lift
$4,143.95 $3,767.23
Description
These battery electric platform lifters have a ball screw structure that offers a very stable and very precise lifting and descending, and low noise transmission system.
Features
- PVC platform as standard.

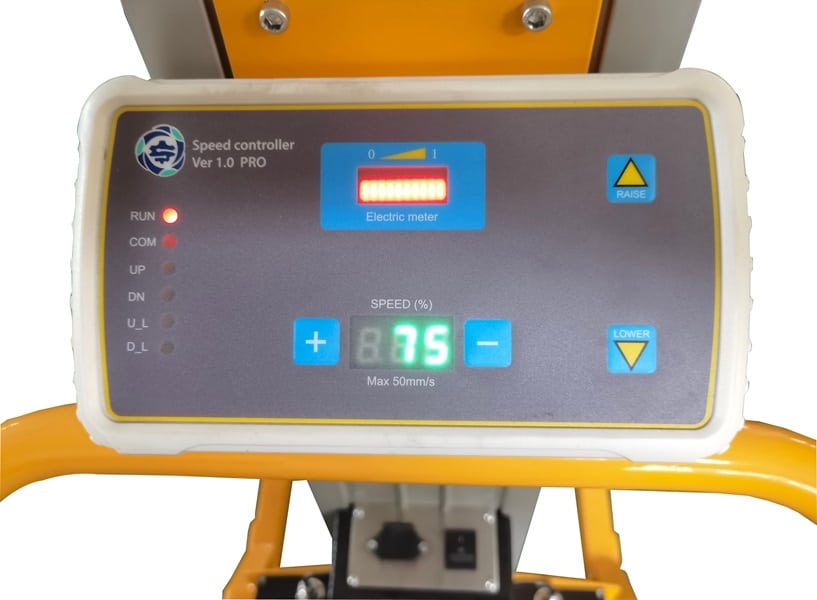

- Easy to use control panel.
- Electric lift and manual push.

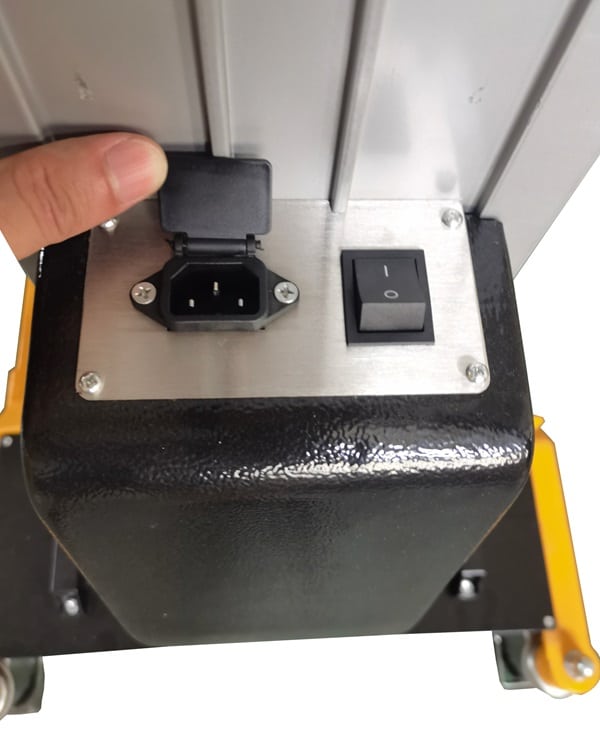

- Battery inside and external charger.
- Double handles for easy operation.
- Conforms to EN1757 and EN 1175-1. CE marked.
- The batteries are maintenance free and sealed.
- Designed with 4 castors and rear steering castors with brake.
- Aluminium mono mast offers a good view and light weight to operate
- Automatic electronic overload protection system to ensure safety.
- Powder coated yellow for hi visibility and extra protection from wear and tear.
- Adjustable lifting and descending speed from 0.5~50mm/s, and the speed can be adjusted easily in control panel.
Specifications
| Model | ESG150-1.62M |
| Max Capacity | 150kg |
| Load Centre | 235mm |
| Max Lift Height | 1620mm |
| Min Height | 130mm |
| Leg Height | 116mm |
| Overall Height | 1815.50mm |
| Overall Length | 925mm |
| Platform Size | L475xW605mm PVC |
| Front Wheel | Ø75x20mm PU |
| Rear Wheel | Ø125x32mm PU |
| Power Unit | 48V/400W |
| Battery | 4x12V/7Ah |
| Lifting/Decending Speed | 0-5~50 Adjustable |
| Net Weight | 91kg |
<!–
