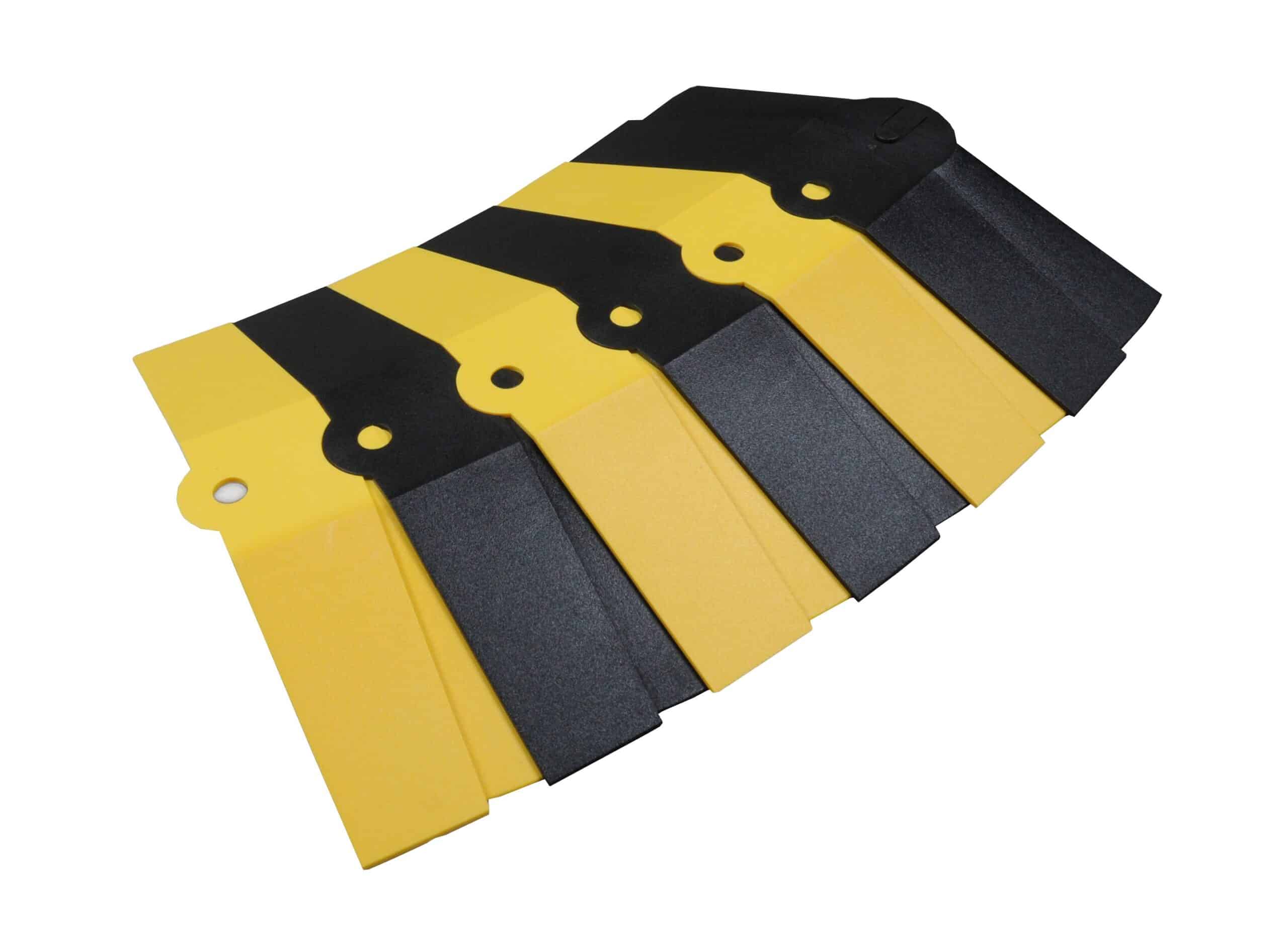

Ultra – Sidewinder Cable Protection Large, Black & Yellow (300mmL x 300mmW x 55mmH)

SHS-CHU1841 – Ultra‑Sidewinder Cable Protector, Large Extension (300mm, Black/Yellow)

Modular Large‑Size Cable Ramp Extension for Precise Length Adjustment & High‑Load Layouts

Overview

The Ultra‑Sidewinder Cable Protector Large Extension is a 300mm modular section designed to complement the large‑size Ultra‑Sidewinder cable protection system (CHU1840). It allows precise length adjustments, fills gaps, and enables complex layouts where a full 800mm section is not required. Constructed from durable ABS plastic with Santoprene® rubber feet, it maintains the same high load capacity (18.3 kg/cm²) and low‑profile 55mm height as the full‑size units, with an extra‑large 300mm width and a generously sized internal channel.

Like the main sections, the extension features snap‑together ends that support left/right articulation and S‑curve configurations. The textured surface provides slip resistance and meets ADA ramp requirements. With an axle load capacity of up to 6,123 kg per axle, it is ideal for warehouses, construction sites, trade shows, and heavy vehicle areas where customised routing of large cables, hoses, or conduit is essential.

Key Features & Benefits

Precise Length Adjustment – 300mm length fills gaps and fine‑tunes system length without using a full 800mm section.
Extra‑Large Channel Capacity – Accommodates large cables, hoses, conduit, and multiple bundled lines.
High Load Rating – Withstands 18.3 kg/cm² and up to 6,123 kg per axle, suitable for forklifts, trucks, and heavy equipment.
Modular & Articulating – Snap‑together ends allow left/right turns and S‑curves; integrates seamlessly with CHU1840 sections.
Low Profile & Slip‑Resistant – 55mm height reduces trip hazard; textured surface meets ADA ramp requirements.
Durable Construction – ABS plastic housing with Santoprene® rubber feet for stability and floor protection.
Compact Storage – Coils with other sections to 0.9m diameter when loaded.
Versatile Environment – Indoor/outdoor use; operates from -40°C to +49°C.

Technical Specifications

Performance Features

Snap‑together design allows quick, tool‑free assembly and reconfiguration.
Enables precise length adjustments without using a full 800mm section.
Supports S‑curves, left/right turns, and custom layouts.
Extra‑large internal channel accommodates large cables, hydraulic hoses, conduit, and multiple bundled lines.
High‑visibility black/yellow colour improves hazard awareness.
Rubber feet protect floors and prevent sliding.
Coils compactly with other sections for storage.
High axle load rating (up to 6,123 kg) ensures reliable performance under heavy vehicle traffic.

Applications

Fine‑tuning large‑size cable ramp layouts in warehouses and factories.
Filling gaps in temporary cable runs at trade shows and events.
Creating custom transitions in construction sites and airports.
Completing modular systems in office walkways and heavy vehicle areas where large cable bundles are present.

Best Fit For

Users of the Ultra‑Sidewinder large system needing incremental length adjustments.
Layouts where a full 800mm section is too long.
Projects requiring S‑curves or complex turns that need short segments.
Portable setups where storage space is limited.

Not Suitable For

Stand‑alone use without other Ultra‑Sidewinder large sections (requires connectors on both ends).
Applications requiring a smaller, narrower ramp (use CHU1800 Small or CHU1830 Medium series).
