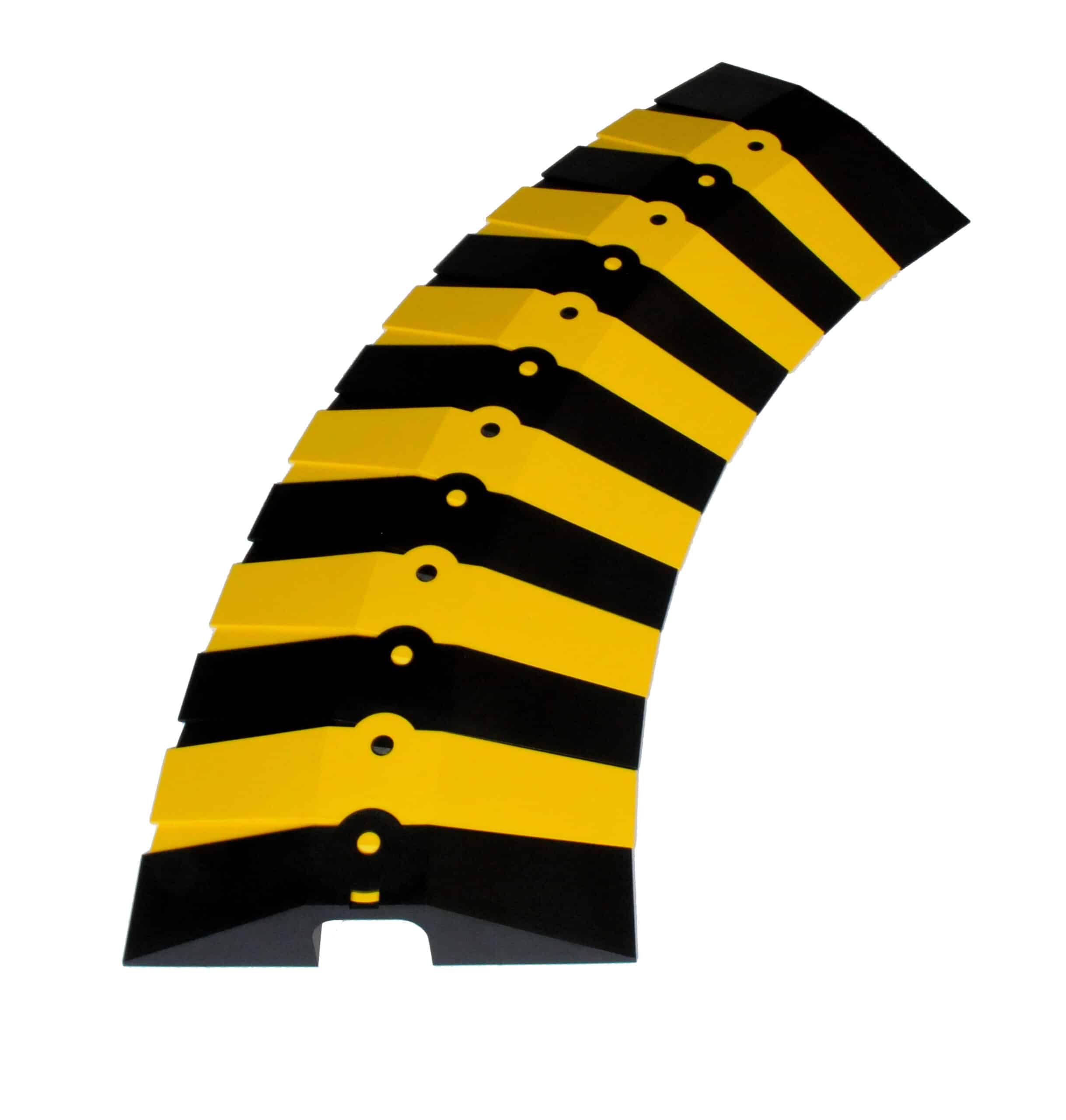

Ultra – Sidewinder Cable Protection with End Caps, Large, Black & Yellow (800mmL x 300mmW x 55mmH)

SHS-CHU1840 – Ultra‑Sidewinder Cable Protector (Large, Black/Yellow)

Heavy‑Duty Modular Cable Ramp with Extra‑Large Channel for Large Cables, Hoses & Conduit

Overview

The Ultra‑Sidewinder Cable Protector (Large) is a heavy‑duty, modular cable ramp engineered to safely route and protect large cables, hoses, conduits, and multiple bundled lines across pedestrian walkways, vehicle paths, and industrial floors. Its 55mm height and 300mm width provide a stable platform with an extra‑large internal channel (350mm x 50mm) to accommodate substantial cable bundles, hydraulic hoses, pneumatic lines, or even small pipes.

Constructed from durable ABS plastic with Santoprene® rubber feet, each 800mm section features snap‑together ends that allow left/right articulation and S‑curve configurations. When not in use, the segments coil into a compact 0.9‑metre diameter for easy transport and storage. With a load capacity of 140 kg/cm² (>600 bar), it withstands heavy forklifts, trucks, and industrial equipment, making it ideal for warehouses, construction sites, and large‑scale events.

Key Features & Benefits

Extra‑Large Channel Capacity – Internal opening 350mm x 50mm accommodates large cables, hoses, conduit, and multiple bundled lines.
High Load Rating – Withstands 140 kg/cm² (>600 bar), suitable for forklifts, trucks, and heavy equipment.
Modular & Articulating – Snap‑together segments allow left/right turns and S‑curves; end caps available separately.
Low Profile & Slip‑Resistant – 55mm height reduces trip hazard; textured surface meets ADA ramp requirements.
Durable Construction – ABS plastic housing with Santoprene® rubber feet for stability and floor protection.
Compact Storage – Coils to 0.9m diameter when loaded, ideal for mobile operations and tight storage spaces.
Versatile Environment – Indoor/outdoor use; operates from -40°C to +49°C.

Technical Specifications

Performance Features

Extra‑large 350mm x 50mm internal channel accommodates large cables, hoses, conduit, and multiple bundled lines.
Snap‑together modular design allows quick, tool‑free assembly and reconfiguration.
Supports S‑curves, left/right turns, and custom layouts to suit complex pathways.
High‑visibility black/yellow colour improves hazard awareness.
Rubber feet protect floors and prevent sliding.
Coils into a small circle for compact storage when not in use.
Resistant to common industrial chemicals and outdoor weathering.

Applications

Warehouse and factory floors with large cable bundles or heavy hoses
Trade shows and event venues with extensive power/data cabling
Construction sites with large hydraulic hoses and airlines
Airports and transport hubs
Office and retail walkways with oversized conduit
Temporary power and data cable runs
Hose and airline protection in heavy vehicle areas

Best Fit For

Facilities requiring protection for large‑diameter cables, hoses, or conduit.
Environments where heavy forklifts or vehicles cross over large cable bundles.
Situations demanding low‑profile, ADA‑compliant pedestrian ramps with high capacity.
Mobile teams needing portable, easy‑to‑store cable protection for substantial infrastructure.

Not Suitable For

Extreme high‑temperature applications above 49°C.
Use as a permanent roadway crossing for continuous heavy traffic (wear may occur over time).
Applications requiring a smaller, more compact ramp (consider CHU1800 Small or CHU1830 Medium series).
