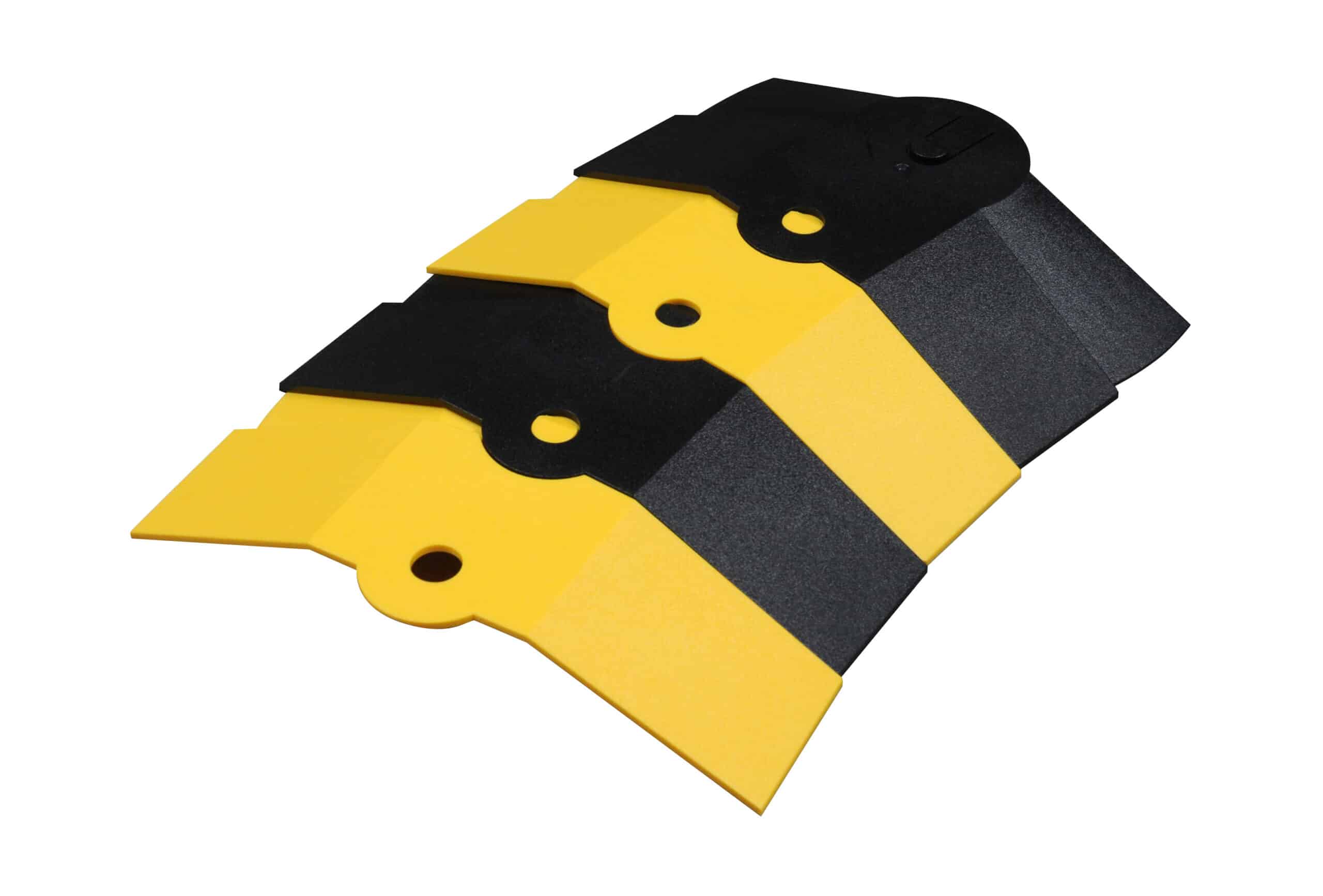

Ultra – Sidewinder Cable Protection Medium, Black & Yellow (300mmL x 250mmW x 35mmH)

SHS-CHU1831 – Ultra‑Sidewinder Cable Protector, Medium Extension (300mm, Black/Yellow)

Modular Medium‑Size Cable Ramp Extension for Precise Length Adjustment & Complex Layouts

Overview

The Ultra‑Sidewinder Cable Protector Medium Extension is a 300mm modular section designed to complement the medium‑size Ultra‑Sidewinder cable protection system (CHU1830). It allows precise length adjustments, fills gaps, and enables complex layouts where a full 800mm section is not required. Constructed from durable ABS plastic with Santoprene® rubber feet, it maintains the same high load capacity (18.3 kg/cm²) and low‑profile 35mm height as the full‑size units, with a generous 250mm width and 75mm x 20mm internal channel.

Like the main sections, the extension features snap‑together ends that support left/right articulation and S‑curve configurations. The textured surface provides slip resistance and meets ADA ramp requirements. Ideal for warehouses, trade shows, construction sites, and heavy vehicle areas where customised cable routing with larger bundles is essential.

Key Features & Benefits

Precise Length Adjustment – 300mm length fills gaps and fine‑tunes system length without using a full 800mm section.
Large Channel Capacity – Internal opening 75mm x 20mm accommodates multiple cables, large hoses, or bundled lines.
High Load Rating – Withstands 18.3 kg/cm², suitable for forklifts, trucks, and heavy equipment.
Modular & Articulating – Snap‑together ends allow left/right turns and S‑curves; integrates seamlessly with CHU1830 sections.
Low Profile & Slip‑Resistant – 35mm height reduces trip hazard; textured surface meets ADA ramp requirements.
Durable Construction – ABS plastic housing with Santoprene® rubber feet for stability and floor protection.
Compact Storage – Coils with other sections to 0.9m diameter when loaded.
Versatile Environment – Indoor/outdoor use; operates from -40°C to +49°C.

Technical Specifications

Performance Features

Snap‑together design allows quick, tool‑free assembly and reconfiguration.
Enables precise length adjustments without using a full 800mm section.
Supports S‑curves, left/right turns, and custom layouts.
Large 75mm x 20mm internal channel accommodates multiple cables, hydraulic hoses, and airline bundles.
High‑visibility black/yellow colour improves hazard awareness.
Rubber feet protect floors and prevent sliding.
Coils compactly with other sections for storage.

Applications

Fine‑tuning medium‑size cable ramp layouts in warehouses and factories.
Filling gaps in temporary cable runs at trade shows and events.
Creating custom transitions in construction sites and airports.
Completing modular systems in office walkways and heavy vehicle areas where larger cable bundles are present.

Best Fit For

Users of the Ultra‑Sidewinder medium system needing incremental length adjustments.
Layouts where a full 800mm section is too long.
Projects requiring S‑curves or complex turns that need short segments.
Portable setups where storage space is limited.

Not Suitable For

Stand‑alone use without other Ultra‑Sidewinder medium sections (requires connectors on both ends).
Applications requiring a smaller, narrower ramp (use CHU1800 Small series).
