Ultra – Sidewinder Cable Protection with Endcaps, Small, Black and Yellow (1mL x 75mW x 20mmH)

SHS-CHU1800 – Ultra‑Sidewinder Cable Protector (1m, Small, Black/Yellow)

Modular Cable Ramp with High Load Capacity & S‑Curve Articulation

Overview

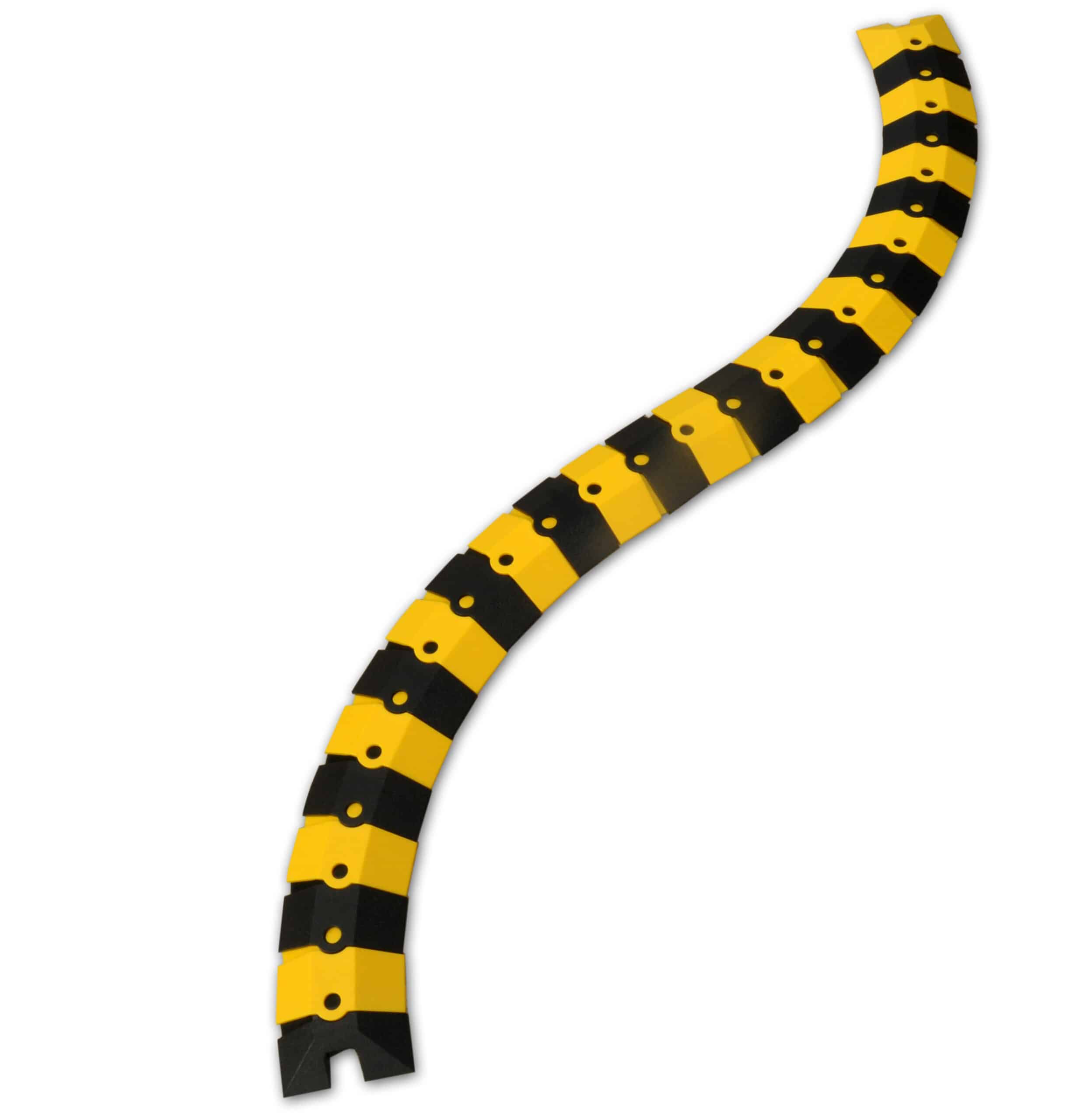

The Ultra‑Sidewinder Cable Protector is a heavy‑duty, modular cable ramp designed to safely route and protect cables, hoses, and airlines across pedestrian walkways, vehicle paths, and industrial floors. Its low‑profile 20mm height minimises trip hazards while the textured surface provides slip resistance, meeting ADA ramp compliance.

Constructed from durable ABS plastic with Santoprene® rubber feet, each 1‑metre section features snap‑together ends that allow left/right articulation and even S‑curve configurations. When not in use, the segments coil into a compact 0.9‑metre diameter for easy transport and storage. Ideal for warehouses, trade shows, construction sites, and heavy vehicle applications where high load capacity is essential.

Key Features & Benefits

High Load Capacity – Withstands 140 kg/cm² (>600 bar), suitable for forklifts, trucks, and heavy equipment.

Modular & Articulating – Snap‑together segments allow left/right turns and S‑curves; end caps included.

Low Profile & Slip‑Resistant – 20mm height reduces trip risk; textured surface meets ADA ramp requirements.

Durable Construction – ABS plastic housing with Santoprene® rubber feet for stability and floor protection.

Compact Storage – Coils to 0.9m diameter when loaded, ideal for mobile operations and tight storage spaces.

Versatile Environment – Indoor/outdoor use; operates from -40°C to +49°C.

Channel Size – Internal opening 19mm x 9.5mm accommodates multiple cables, hoses, or airlines.

Technical Specifications

Performance Features

Snap‑together modular design allows quick, tool‑free assembly and reconfiguration.

Supports S‑curves, left/right turns, and custom layouts to suit complex pathways.

High‑visibility black/yellow colour improves hazard awareness.

Rubber feet protect floors and prevent sliding.

Coils into a small circle for compact storage when not in use.

Resistant to common industrial chemicals and outdoor weathering.

Applications

Warehouse and factory floors

Trade shows and event venues

Construction sites

Airports and transport hubs

Office and retail walkways

Temporary power and data cable runs

Hose and airline protection in heavy vehicle areas

Best Fit For

Facilities requiring frequent re‑routing of cables and hoses.

Environments where heavy forklifts or vehicles cross over cables.

Situations demanding low‑profile, ADA‑compliant pedestrian ramps.

Mobile teams needing portable, easy‑to‑store cable protection.

Not Suitable For

Extreme high‑temperature applications above 49°C.

Use as a permanent roadway crossing for continuous heavy traffic (wear may occur over time).

Applications requiring a larger channel size for multiple thick cables (consider larger models).
