Ultra – Sidewinder Cable Protection with End Caps, Medium, Black & Yellow (800mmL x 250mmW x 35mmH)

SHS-CHU1830 – Ultra‑Sidewinder Cable Protector (Medium, Black/Yellow)

High‑Capacity Modular Cable Ramp with Large Channel for Multiple Cables & Hoses

Overview

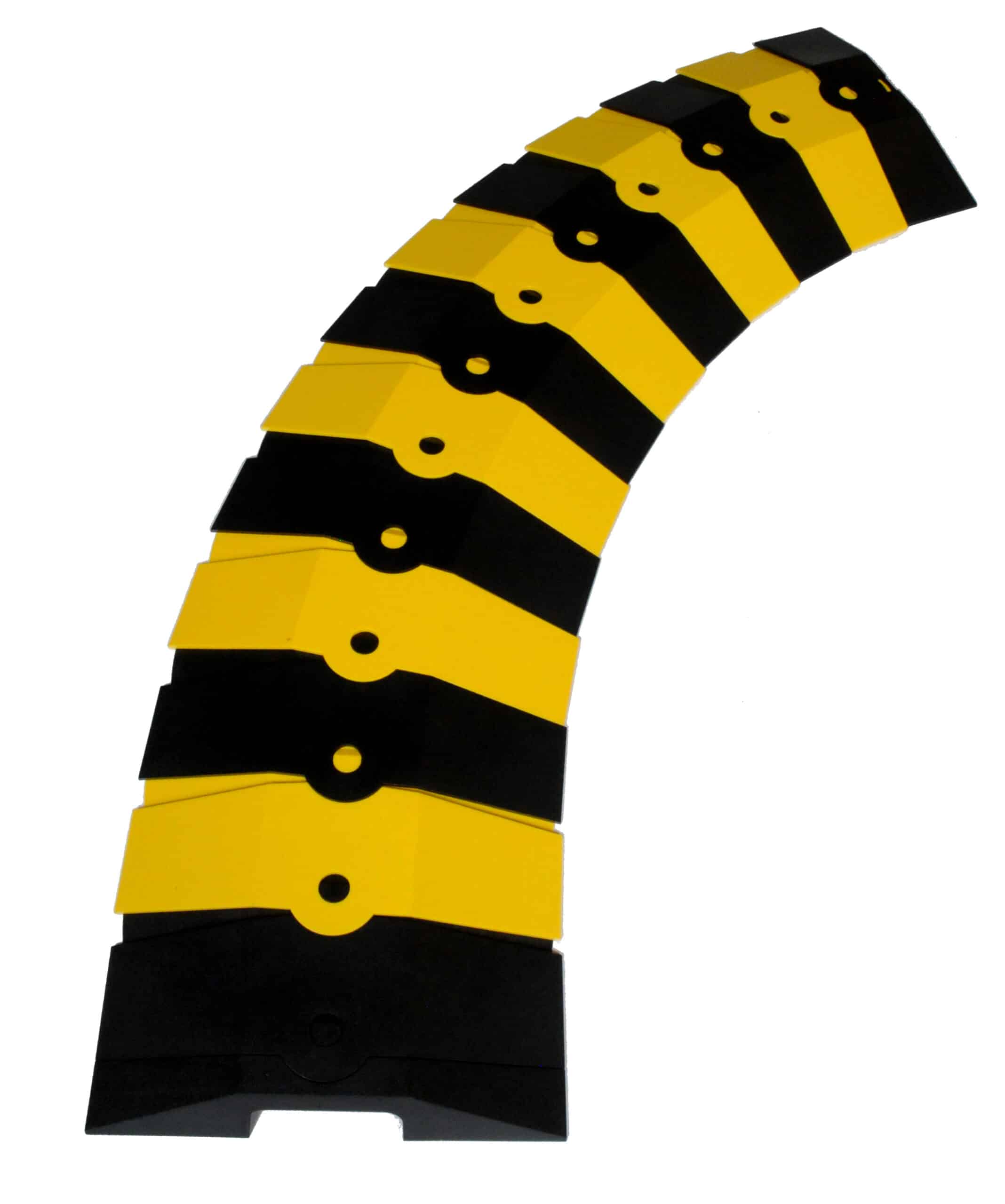

The Ultra‑Sidewinder Cable Protector (Medium) is a heavy‑duty, modular cable ramp designed to safely route and protect multiple cables, hoses, and airlines across pedestrian walkways, vehicle paths, and industrial floors. Its 35mm height and 250mm width provide a stable platform with a generous internal channel (75mm x 20mm) to accommodate larger cable bundles, hydraulic hoses, or pneumatic lines.

Constructed from durable ABS plastic with Santoprene® rubber feet, each 800mm section features snap‑together ends that allow left/right articulation and S‑curve configurations. When not in use, the segments coil into a compact 0.9‑metre diameter for easy transport and storage. Ideal for warehouses, trade shows, construction sites, and heavy vehicle applications where high‑volume cable protection is required.

Key Features & Benefits

Large Channel Capacity – Internal opening 75mm x 20mm accommodates multiple cables, large hoses, or bundled lines.

High Load Rating – Withstands 18.3 kg/cm², suitable for forklifts, trucks, and heavy equipment.

Modular & Articulating – Snap‑together segments allow left/right turns and S‑curves; end caps available separately.

Low Profile & Slip‑Resistant – 35mm height reduces trip hazard; textured surface meets ADA ramp requirements.

Durable Construction – ABS plastic housing with Santoprene® rubber feet for stability and floor protection.

Compact Storage – Coils to 0.9m diameter when loaded, ideal for mobile operations and tight storage spaces.

Versatile Environment – Indoor/outdoor use; operates from -40°C to +49°C.

Technical Specifications

Performance Features

Large 75mm x 20mm internal channel accommodates multiple cables, hydraulic hoses, and airline bundles.
Snap‑together modular design allows quick, tool‑free assembly and reconfiguration.
Supports S‑curves, left/right turns, and custom layouts to suit complex pathways.
High‑visibility black/yellow colour improves hazard awareness.
Rubber feet protect floors and prevent sliding.
Coils into a small circle for compact storage when not in use.
Resistant to common industrial chemicals and outdoor weathering.

Applications

Warehouse and factory floors with multiple cable runs
Trade shows and event venues with extensive power/data cabling
Construction sites with hydraulic hoses and airlines
Airports and transport hubs
Office and retail walkways
Temporary power and data cable runs
Hose and airline protection in heavy vehicle areas

Best Fit For

Facilities requiring protection for multiple cables or large‑diameter hoses.
Environments where heavy forklifts or vehicles cross over cables.
Situations demanding low‑profile, ADA‑compliant pedestrian ramps.
Mobile teams needing portable, easy‑to‑store cable protection.

Not Suitable For

Extreme high‑temperature applications above 49°C.
Use as a permanent roadway crossing for continuous heavy traffic (wear may occur over time).
Applications requiring a smaller, more compact ramp (consider CHU1800 Small series).
