Collapsible Bund 900gsm Yellow PVC (1.2mL x 1.2mW x 300mmH) 432L

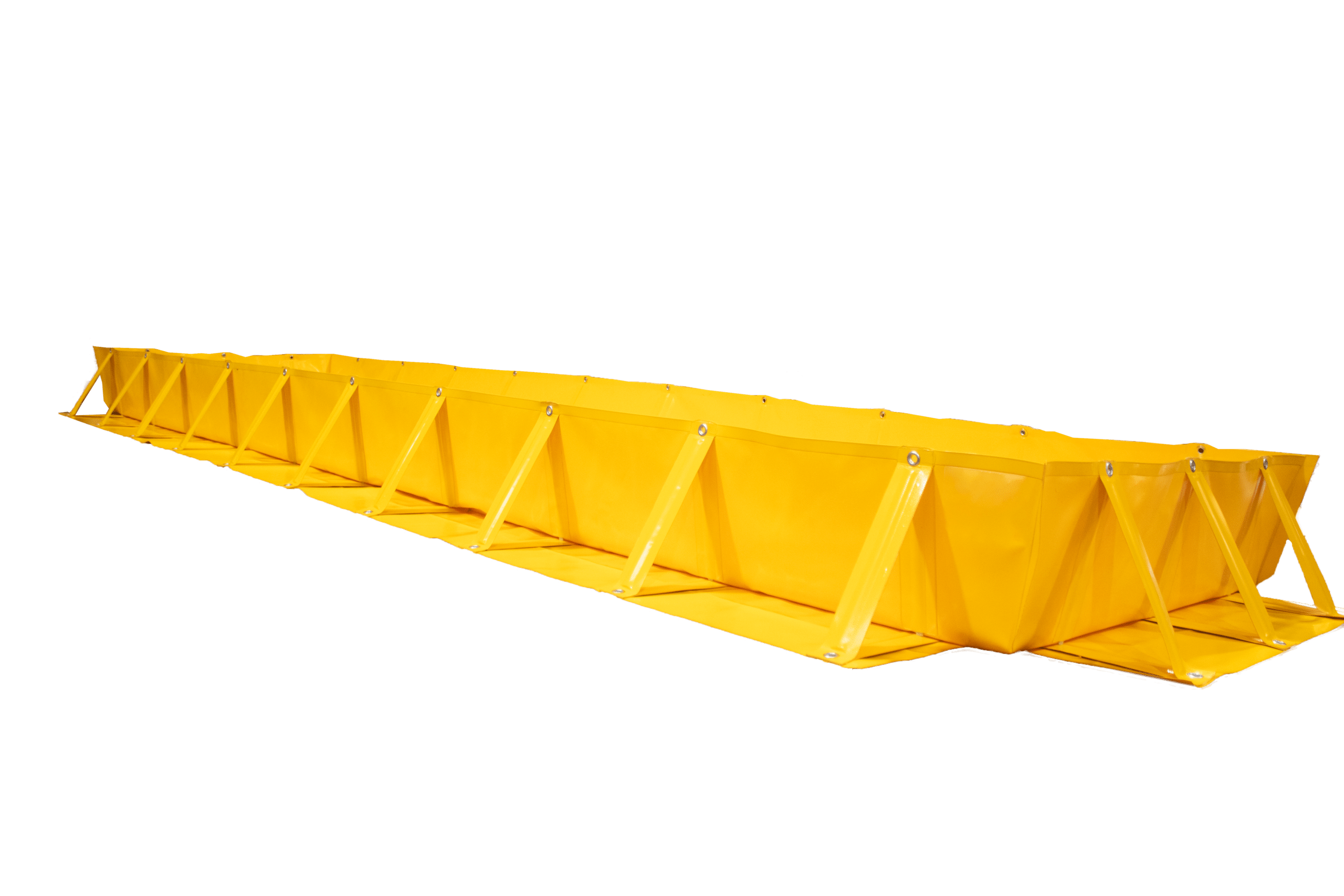

SHS-CHPCB01 Collapsible Bund 900gsm Yellow PVC (1.2mL x 1.2mW x 300mmH)

Collapsible Spill Containment Bund – Portable Liquid Containment System

Overview

The CHPCB01 Collapsible Bund is a portable spill containment solution designed to safely contain liquids during industrial operations such as refuelling, chemical handling, equipment maintenance, and emergency spill response. Constructed from heavy-duty 900gsm yellow PVC with gloss acrylic lacquer on both sides, this bund provides durable and reliable containment while remaining lightweight and easy to deploy.

The collapsible wall design uses marine-grade pultruded vinyl ester resin battens housed inside PVC pockets, providing structural support while allowing the bund walls to fold down when vehicles or equipment enter the containment area. Once the load passes, the walls return upright to maintain containment integrity.

With an internal capacity of 432 litres and integrated welded eyelets for optional ground securing, the CHPCB01 is ideal for temporary spill control applications in warehouses, workshops, construction sites, and environmental protection zones.

Key Features & Benefits

Collapsible Wall Design:
Flexible walls collapse under vehicle or equipment weight and return upright to maintain spill containment.

Portable Spill Containment:
Lightweight and foldable design allows easy transport, storage, and rapid deployment.

High Capacity Containment:
Provides a 432 litre containment volume suitable for refuelling, maintenance, and chemical handling tasks.

Heavy-Duty PVC Construction:
Manufactured from durable 900gsm yellow PVC with gloss acrylic lacquer coating on both sides.

Marine Grade Wall Supports:
Pultruded vinyl ester resin battens provide structural integrity while maintaining collapsible functionality.

Secure Ground Fixing:
Welded 13mm eyelets located at top and bottom of each wall support allow optional ground anchoring.

Chemical Resistant:
Good resistance to general industrial chemicals and liquids.

UV Stable & Fire Retardant:
5-year UV warranty and fire-resistant material compliant with AS1530 and NFPA 701 standards.

Wide Temperature Range:
Performs reliably between −20°C and +70°C.

Technical Specifications

Best Fit For

Temporary spill containment during refuelling or maintenance
Construction sites and mobile equipment servicing
Chemical handling and transfer operations
Environmental protection zones and emergency spill response

Not Suitable For

Permanent spill containment installations
Continuous heavy vehicle traffic areas
Applications requiring rigid bund walls

Optional Accessories

Ground Mat
Ultra-Self Bailer
Hose Stand
Track Belt
