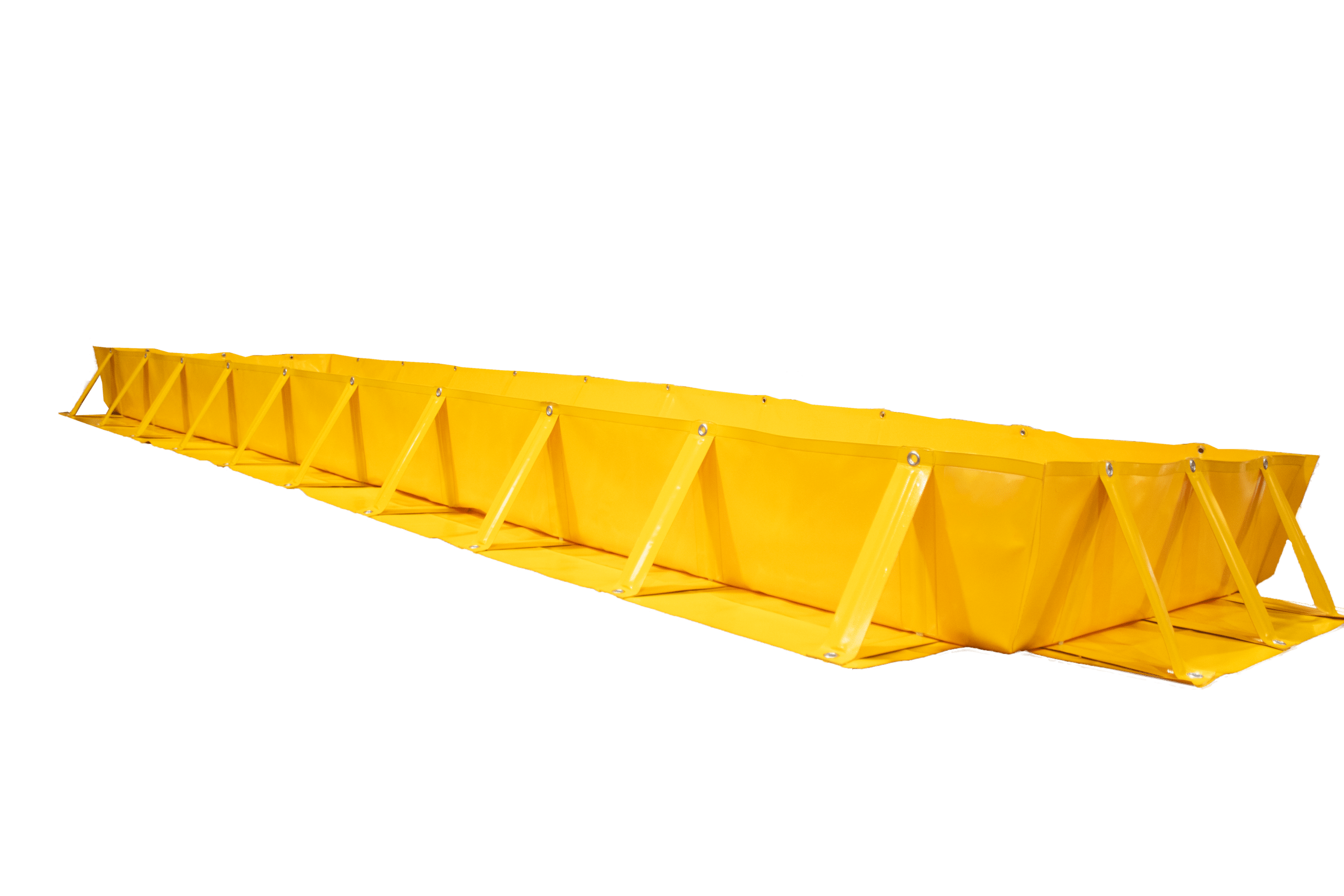

Collapsible Bund 900gsm Yellow PVC (1.8mL x 1.2mW x 300mmH) 648L

SHS-CHPCB02 Collapsible Bund 900gsm Yellow PVC (1.8mL x 1.2mW x 300mmH)

Portable Collapsible Spill Containment Bund – Heavy Duty Industrial Spill Control

Overview

The CHPCB02 Collapsible Bund is a portable spill containment solution designed for industrial environments requiring reliable liquid containment during refuelling, equipment servicing, chemical handling, and maintenance operations. Manufactured from durable 900gsm yellow PVC with gloss acrylic lacquer on both sides, this bund provides strong chemical resistance and long-term durability while remaining lightweight and easy to deploy.

Its collapsible wall design incorporates marine-grade pultruded vinyl ester resin battens housed inside PVC pockets. These structural supports allow the walls to collapse under vehicle or equipment weight for easy access, then automatically return upright to maintain spill containment.

With a containment capacity of 648 litres and integrated welded eyelets for optional ground anchoring, the CHPCB02 provides an effective solution for temporary spill control across workshops, construction sites, warehouses, and environmental protection zones.

Key Features & Benefits

Collapsible Wall Design
Walls fold down under vehicle or equipment weight and return upright to maintain spill containment.

Large Containment Capacity
Provides a 648L containment volume suitable for refuelling operations, maintenance tasks, and chemical handling.

Heavy-Duty PVC Construction
Made from durable 900gsm yellow PVC with gloss acrylic lacquer on both sides for industrial strength performance.

Marine Grade Structural Supports
Pultruded vinyl ester resin battens provide reliable wall support while allowing the bund to collapse when needed.

Portable and Easy to Deploy
Lightweight and foldable design allows quick setup and convenient transport between work sites.

Secure Ground Anchoring
13mm welded eyelets positioned along the walls allow the bund to be secured to the ground when required.

Chemical Resistant
Suitable for containment of a wide range of industrial liquids and chemicals.

UV Stable and Fire Retardant
5-year UV warranty and fire-resistant material that self-extinguishes when the ignition source is removed.

Wide Temperature Range
Reliable performance between −20°C and +70°C.

Technical Specifications

Best Fit For

Refuelling operations and fuel transfer zones
Equipment maintenance and service bays
Chemical handling and decanting areas
Construction sites and mobile maintenance units
Emergency spill containment response

Not Suitable For

Permanent spill containment installations
Continuous heavy vehicle traffic lanes
Areas requiring rigid concrete bunding systems

Optional Accessories

Ground Mat
Ultra-Self Bailer
Hose Stand
Track Belt

Download Product Brochure
