Collapsible Bund 900gsm Yellow PVC (15mL x 3.6mW x 300mmH) 16,200L

SHS-CHPCB08 Collapsible Bund 900gsm Yellow PVC (15mL x 3.6mW x 300mmH)

Ultra-Large Portable Spill Containment Bund for Industrial Spill Control

Overview

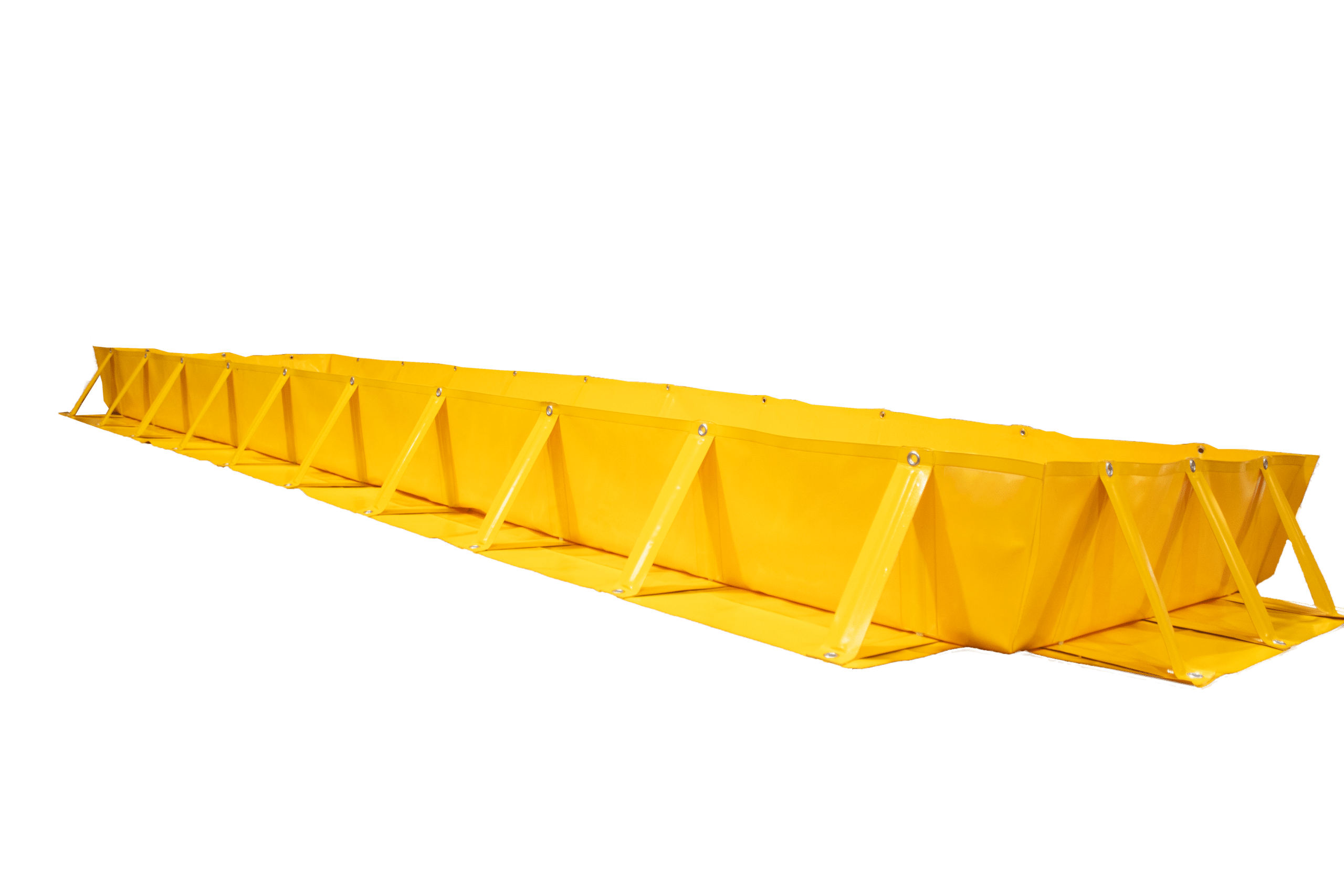

The CHPCB08 Collapsible Bund is an ultra-large portable spill containment system designed for large-scale industrial environments where maximum liquid containment is required. Ideal for refuelling zones, heavy equipment servicing, chemical handling areas, and emergency spill response, the bund provides reliable containment for large volumes of liquids.

Constructed from durable 900gsm yellow PVC with gloss acrylic lacquer coating on both sides, the bund is designed to withstand harsh industrial conditions, UV exposure, and chemical contact. The collapsible wall structure is reinforced with marine-grade pultruded vinyl ester resin battens housed inside PVC pockets, allowing the bund walls to collapse under vehicle weight and automatically return upright to maintain containment.

With an extremely large containment capacity of 16,200 litres, the CHPCB08 is designed for large operational areas where maximum spill control protection is required while maintaining portability and quick deployment.

Key Features & Benefits

Ultra-Large Spill Containment Capacity
Provides an impressive 16,200 litre containment volume for large industrial spill control zones.

Collapsible Wall System
Flexible reinforced wall supports allow vehicles and equipment to enter the containment area without compromising spill protection.

Heavy-Duty Industrial PVC Construction
Manufactured from 900gsm PVC with gloss acrylic coating for durability and long service life.

Marine Grade Structural Wall Supports
Pultruded vinyl ester resin battens provide strong wall support while maintaining collapsible functionality.

Portable and Rapid Deployment
Foldable design enables easy transport and fast setup for temporary spill containment operations.

Ground Securing Eyelets
13mm welded eyelets located on wall supports allow optional ground anchoring for increased stability.

Chemical Resistant Material
Provides good resistance to a wide range of industrial chemicals and liquids.

UV Stable and Fire Resistant
5-year UV warranty and fire-resistant material that self-extinguishes when ignition sources are removed.

Wide Operating Temperature Range
Designed to perform reliably between −20°C and +70°C in demanding environments.

Technical Specifications

Best Fit For

Large industrial refuelling zones
Heavy equipment maintenance operations
Large liquid storage containment areas
Mining, construction, and industrial worksites
Emergency spill containment response

Not Suitable For

Permanent bund installations
Heavy traffic lanes requiring rigid containment
Applications requiring fixed concrete bund structures

Optional Accessories

Ground Mat
Ultra-Self Bailer
Hose Stand
Track Belt

Download Product Brochure
