Collapsible Bund 900gsm Yellow PVC (10mL x 3.6mW x 300mmH) 10,800L

SHS-CHPCB07 Collapsible Bund 900gsm Yellow PVC (10mL x 3.6mW x 300mmH)

Extra-Large Portable Spill Containment Bund for Industrial Liquid Control

Overview

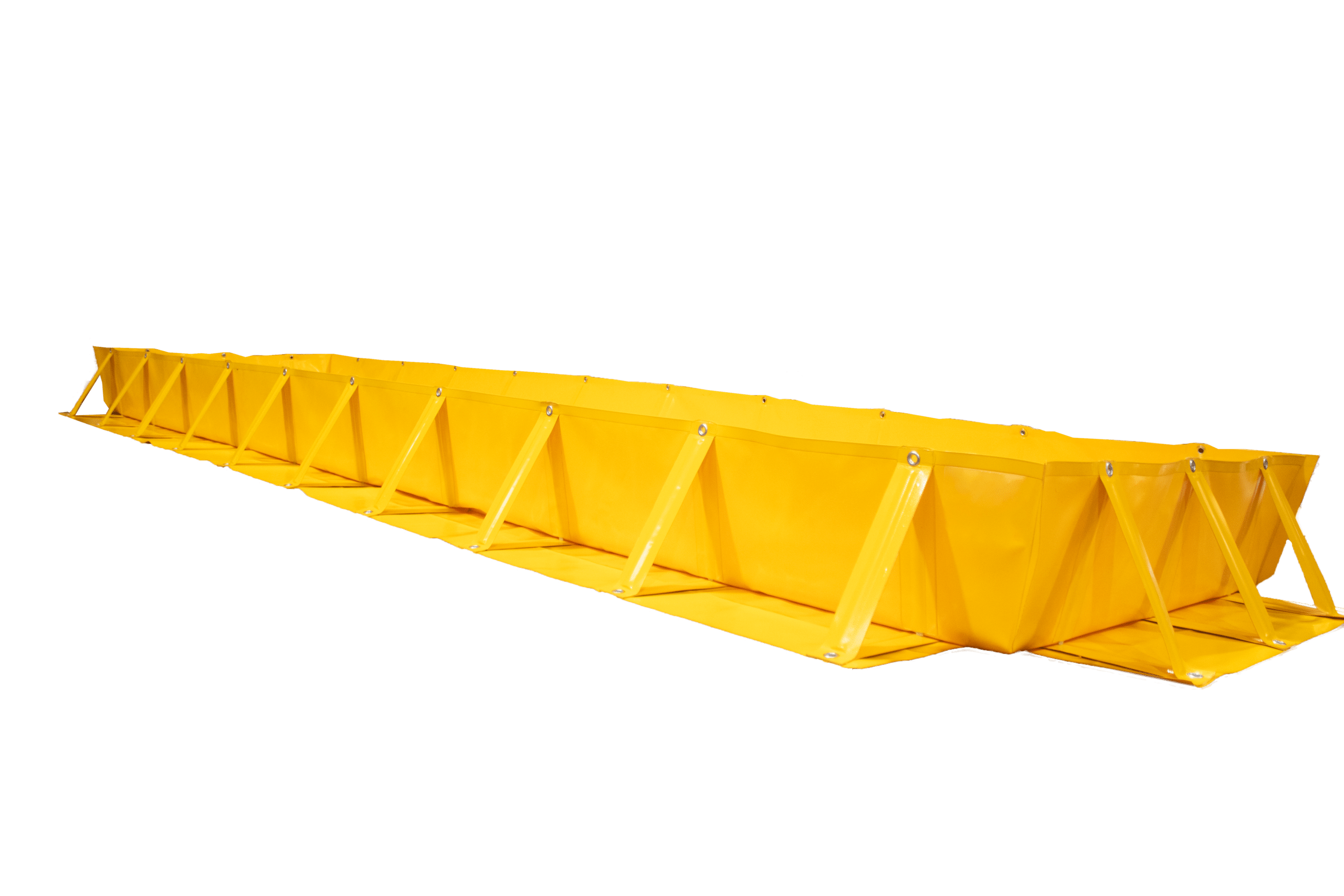

The CHPCB07 Collapsible Bund is a heavy-duty portable spill containment system designed for large industrial applications where maximum liquid containment capacity is required. Ideal for refuelling zones, large equipment servicing areas, chemical handling sites, and temporary spill containment setups, this bund provides reliable environmental protection against spills and leaks.

Manufactured from high-strength 900gsm yellow PVC with gloss acrylic lacquer coating on both sides, the bund offers excellent resistance to chemicals, UV exposure, and demanding industrial conditions. The collapsible wall structure is reinforced with marine-grade pultruded vinyl ester resin battens housed inside PVC pockets, allowing the walls to fold under vehicle weight and return upright automatically to maintain containment.

With a very large containment capacity of 10,800 litres, the CHPCB07 is suitable for large equipment, vehicles, or multiple storage containers while remaining portable and easy to deploy on-site.

Key Features & Benefits

Extra-Large Spill Containment Capacity
Provides a massive containment volume of 10,800 litres, ideal for large-scale spill management areas.

Collapsible Wall Design
Flexible wall supports allow vehicles and equipment to enter and exit without compromising spill containment.

Heavy-Duty Industrial Construction
Manufactured from durable 900gsm PVC with gloss acrylic coating for long-lasting industrial performance.

Marine Grade Wall Supports
Pultruded vinyl ester resin battens provide strong structural support while allowing collapsible functionality.

Portable and Quick Setup
Foldable design allows easy transport and rapid deployment for temporary containment zones.

Ground Securing Eyelets
13mm welded eyelets positioned on wall supports allow optional anchoring to the ground for additional stability.

Chemical Resistant Material
Suitable for containing a wide range of industrial liquids and chemicals.

UV Stable and Fire Resistant
5-year UV warranty with fire-resistant material that self-extinguishes when ignition sources are removed.

Wide Operating Temperature Range
Designed to operate between −20°C and +70°C in harsh environments.

Technical Specifications

Best Fit For

Large refuelling and fuel transfer areas
Heavy equipment maintenance zones
Industrial liquid storage containment
Construction and mining environments
Emergency spill response operations

Not Suitable For

Permanent bunding installations
Heavy vehicle traffic lanes requiring rigid containment
Applications requiring fixed concrete containment

Optional Accessories
Ground Mat
Ultra-Self Bailer
Hose Stand
Track Belt
