Collapsible Bund 900gsm Yellow PVC (3.6mL x 2.4mW x 300mmH) 2,592L

SHS-CHPCB06 Collapsible Bund 900gsm Yellow PVC (3.6mL x 2.4mW x 300mmH)

Heavy-Duty Portable Spill Containment Bund for Industrial Liquid Control

Overview

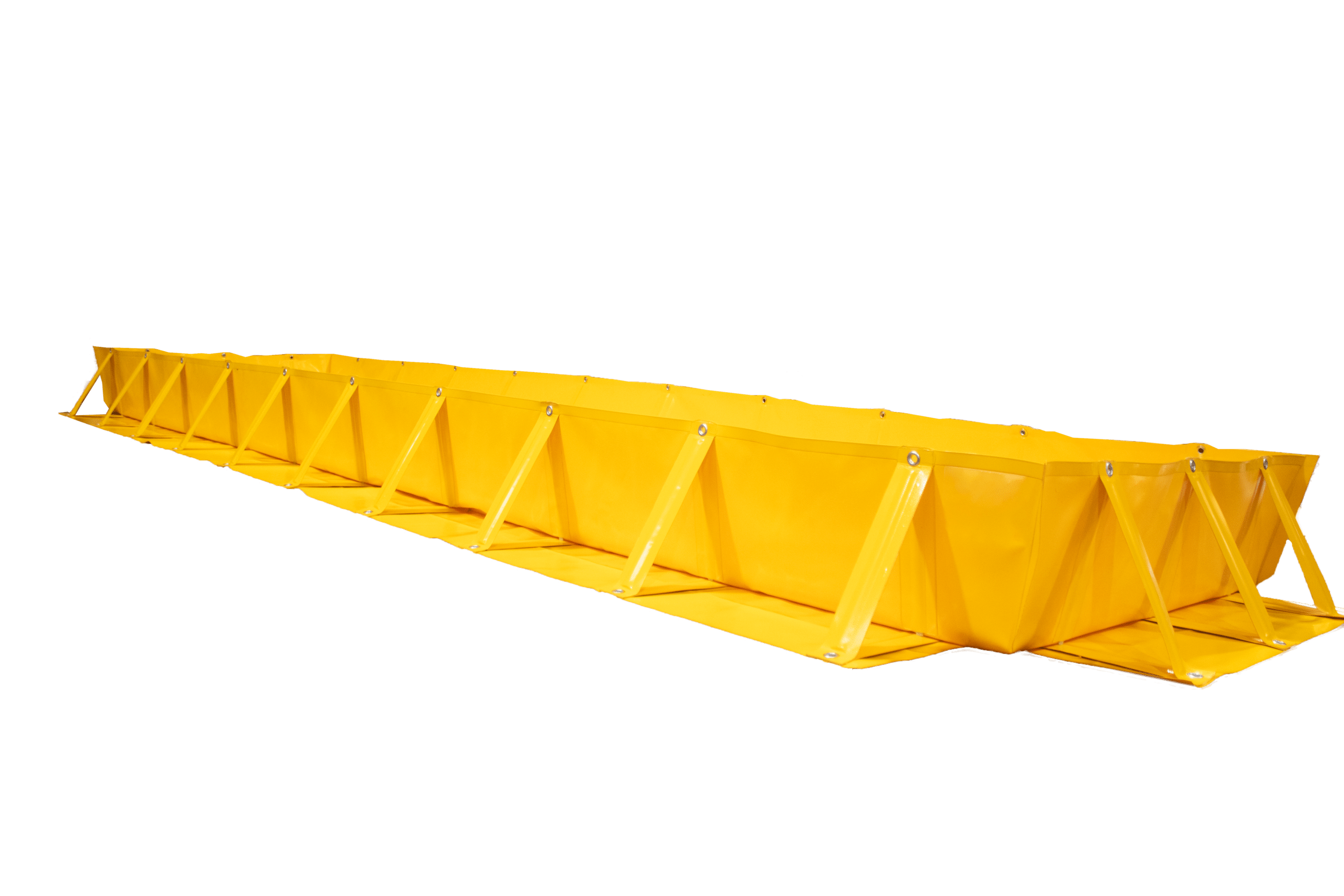

The CHPCB06 Collapsible Bund is a heavy-duty portable spill containment system designed for industrial applications requiring large liquid containment capacity. Ideal for equipment maintenance, refuelling operations, chemical handling, and temporary spill containment areas, the bund provides reliable protection against spills and leaks in demanding environments.

Manufactured from durable 900gsm yellow PVC with a gloss acrylic lacquer coating on both sides, the bund offers strong resistance to chemicals, UV exposure, and harsh industrial conditions. The collapsible wall structure is reinforced with marine-grade pultruded vinyl ester resin battens located inside PVC pockets, allowing the bund walls to fold under vehicle weight and automatically return upright to maintain containment.

With a large containment capacity of 2,592 litres, the CHPCB06 provides reliable spill control for larger work zones while remaining portable and easy to deploy.

Key Features & Benefits

Large Spill Containment Capacity
Provides a containment volume of 2,592 litres, suitable for large refuelling or maintenance areas.

Collapsible Wall Design
Flexible wall supports allow vehicles or equipment to enter while maintaining spill containment integrity.

Heavy-Duty PVC Construction
Manufactured from durable 900gsm PVC with gloss acrylic coating for long-term industrial use.

Marine Grade Structural Supports
Pultruded vinyl ester resin battens reinforce the walls while allowing collapsible operation.

Portable and Easy Deployment
Lightweight and foldable design enables quick setup and relocation.

Ground Anchoring Eyelets
13mm welded eyelets positioned on wall supports allow optional ground securing for added stability.

Chemical Resistant
Provides good resistance to a wide range of industrial liquids and chemicals.

UV Stable and Fire Resistant
5-year UV warranty and self-extinguishing material when ignition sources are removed.

Wide Operating Temperature Range
Performs reliably in temperatures from −20°C to +70°C.

Technical Specifications

Best Fit For

Industrial refuelling zones
Large equipment maintenance areas
Chemical transfer and storage operations
Construction, mining, and heavy equipment servicing
Emergency spill response containment

Not Suitable For

Permanent containment installations
Heavy traffic lanes requiring rigid containment structures
Applications requiring fixed concrete bunding

Optional Accessories

Ground Mat
Ultra-Self Bailer
Hose Stand
Track Belt
